AUR10L-GWFEXW (2005)
Toyota Corolla Verso
Production
Aug 2005
-
May 2007
Engine
2ADFHV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0508- )2ADFHV

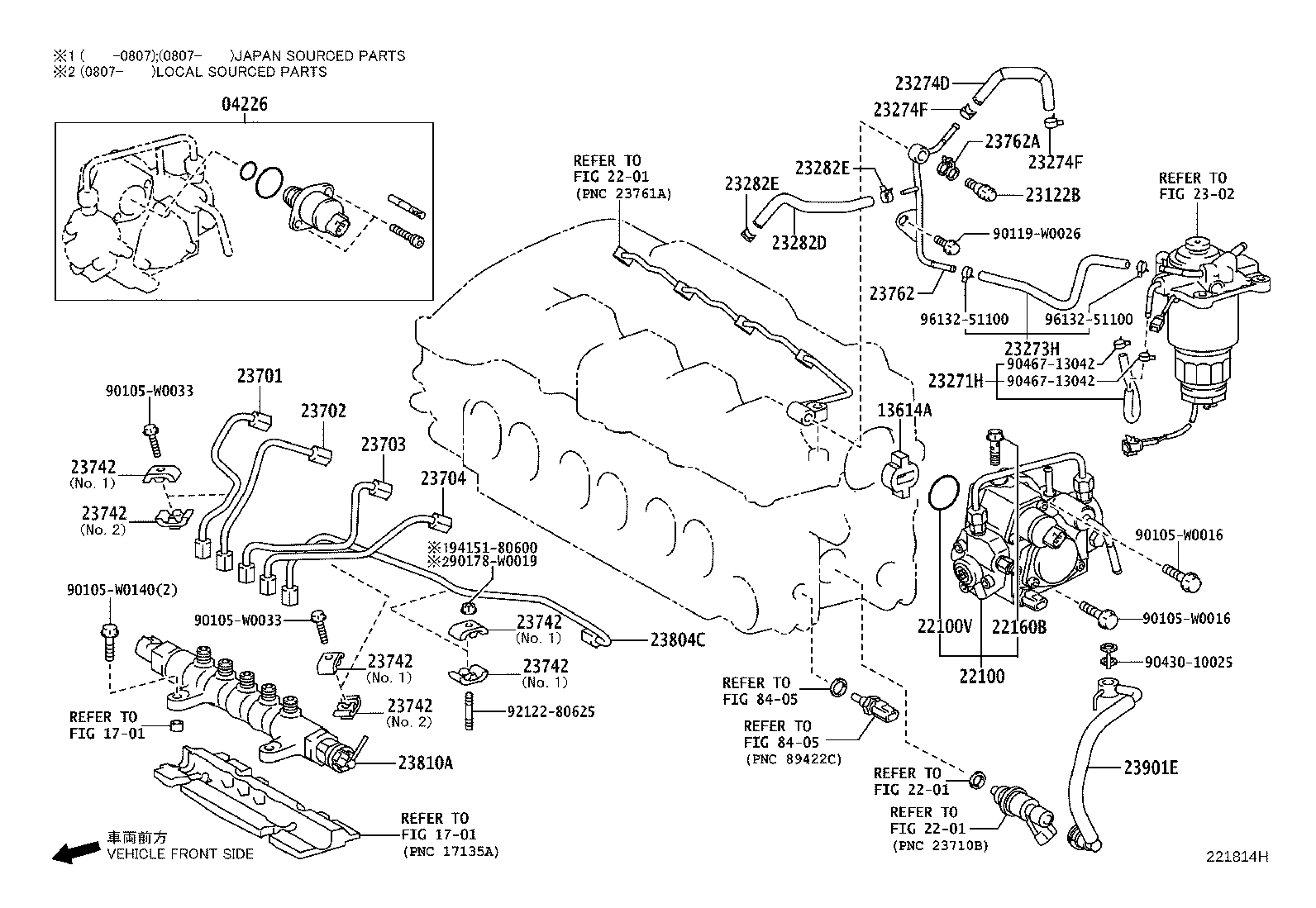

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-0L030 |
2AD#..AUR10 |
1 | ||
| 13614A - COUPLING, SUPPLY PUMP DRIVE, NO.1 | ||||
| 13614-26010 |
2AD#..AUR10 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-0R020 |
2ADFHV..AUR10 |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 22193-0R020 |
2AD#..AUR10 |
1 | ||
| 22160B - SCREW | ||||
| 22569-0R020 |
2ADFHV..AUR10 |
1 | ||
| 23122B - VALVE, CHECK | ||||
| 23769-26010 |
2ADFHV..AUR10 |
1 | ||
| 23769-26020 |
2ADFHV..AUR10 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-26040 |
2AD#..AUR10 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-26020 |
2AD#..AUR10 |
1 | ||
| 23274D - HOSE, FUEL, NO.3 | ||||
| 23274-26020 |
2AD#..AUR10 |
1 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 96135-51100 |
2AD#..AUR10 |
2 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 96135-51100 |
2AD#..AUR10 |
2 | ||
| 23282D - HOSE, FUEL, NO.4 | ||||
| 23282-26040 |
2ADFHV..AUR10 |
1 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
2AD#..AUR10 |
2 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
2AD#..AUR10 |
2 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-0R020 |
2ADFHV..AUR10 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-0R020 |
2ADFHV..AUR10 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-0R020 |
2ADFHV..AUR10 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-0R020 |
2ADFHV..AUR10 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58020 |
2AD#..AUR10 NO.2 |
2 | ||
| 23742-27010 |
2AD#..AUR10 NO.1 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58020 |
2AD#..AUR10 NO.2 |
2 | ||
| 23742-27010 |
2AD#..AUR10 NO.1 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58020 |
2AD#..AUR10 NO.2 |
2 | ||
| 23742-27010 |
2AD#..AUR10 NO.1 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58020 |
2AD#..AUR10 NO.2 |
2 | ||
| 23742-27010 |
2AD#..AUR10 NO.1 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58020 |
2AD#..AUR10 NO.2 |
2 | ||
| 23742-27010 |
2AD#..AUR10 NO.1 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58020 |
2AD#..AUR10 NO.2 |
2 | ||
| 23742-27010 |
2AD#..AUR10 NO.1 |
4 | ||
| 23762 - PIPE, NOZZLE LEAKAGE, NO.2 | ||||
| 23762-0R021 |
2ADFHV..AUR10 |
1 | ||
| 23762A - GASKET, NOZZLE LEAKAGE PIPE NO.2 | ||||
| 90904-30012 |
2ADFHV..AUR10 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-0R010 |
2AD#..AUR10 |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-0R020 |
2ADFHV..AUR10 |
1 | ||
| 23901E - TUBE SUB-ASSY, FUEL | ||||
| 23901-26010 |
2ADFHV..AUR10 |
1 | ||
| Common parts | ||||
| 90105-W0016 | ||||
| 90105-W0033 | ||||
| 90105-W0140 | ||||
| 90119-W0026 | ||||
| 90178-W0019 | ||||
| 90430-10025 | ||||
| 90467-13042 | ||||
| 92122-80625 | ||||
| 94151-80600 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2201 | ||||
| 2302 | ||||
| 8405 | ||||
