AUR10L-GRFEYW (2005)
Toyota Corolla Verso
Production
Aug 2005
-
May 2007
Engine
2ADFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0508- )AUR10..LHD

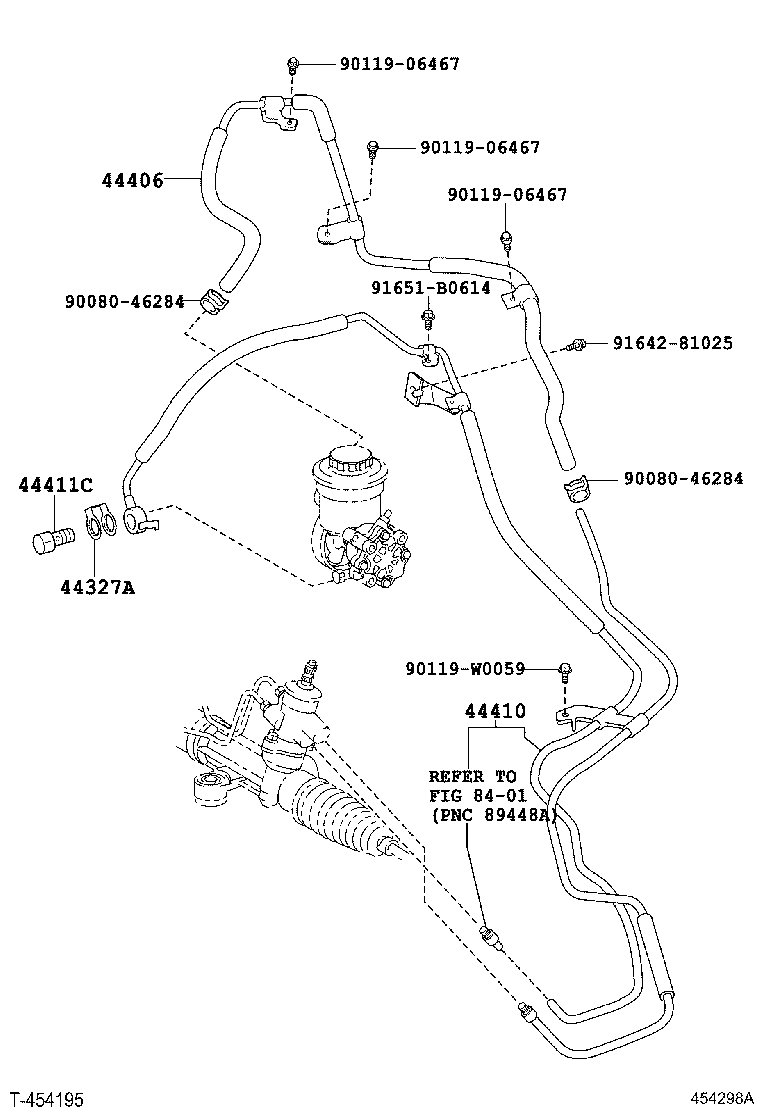

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-26030 |
AUR10 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-0F030 |
AUR10 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-0F041 |
AUR10..LHD |
1 | ||
| 44410-0F040 |
AUR10..LHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 96341-41603 |
AUR10 |
1 | ||
| Common parts | ||||
| 90080-46284 | ||||
| 90119-06467 | ||||
| 90119-W0059 | ||||
| 91642-81025 | ||||
| 91651-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
