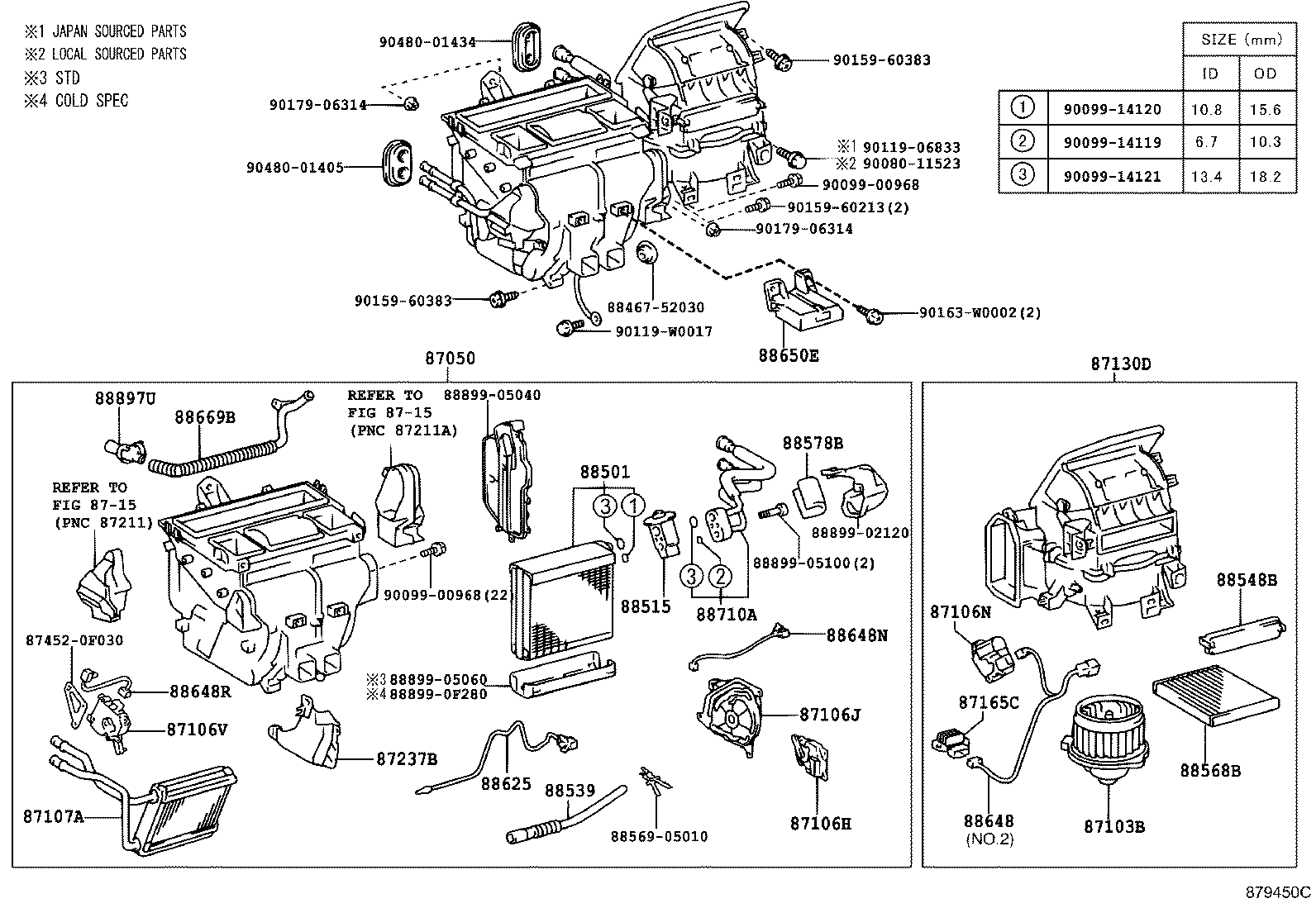

AUR10L-GRFEYW (2007)
Toyota Corolla Verso
(0705- )LHD..DCR,DCRE,HTWC
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0F080 |
AUR10,CUR10..LHD..SOL COLD SPEC |
1 | ||
| 87050-0F050 |
AUR10,CUR10,ZNR1#..LHD..SOL..(DCR,HTWC) |
1 | ||
| 87050-0F240 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87050-0F140 |
AUR10,ZNR1#..LHD..SOL..(DCR,DCRE,HTWC) |
1 | ||
| 87050-0F230 |
AUR10..LHD..SOL..(DCR,DCRE) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87050-0F150 |
AUR10..LHD..SOL COLD AREA SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02080 |
AUR10,CUR10,ZNR1#..LHD |
1 | ||
| 87103-02080 |
AUR10,ZNR1#..LHD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-02070 |
AUR10,CUR10,ZNR1#..LHD |
1 | ||
| 87106-02070 |
AUR10,ZNR1#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0F020 |
AUR10,CUR10,ZNR1#..LHD..(DCR,HTWC) |
1 | ||
| 87107-0F030 |
AUR10,CUR10..LHD..SOL..DCR COLD SPEC |
1 | ||
| 87107-0F020 |
AUR10,ZNR1#..LHD..(DCR,DCRE,HTWC) |
1 | ||
| 87107-0F030 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87107-0F030 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0F040 |
AUR10,CUR10,ZNR1#..LHD..SOL |
1 | ||
| 87130-0F041 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 87130-0F060 |
AUR10..LHD..SOL..(DCR,DCRE) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87130-0F060 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87130-0F042 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-02040 |
AUR10,ZNR1#..SOL..(DCR,DCRE,HTWC) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87138-02040 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87190D - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-0F020 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87190-0F020 |
AUR10..LHD..SOL..(DCR,DCRE) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-0F020 |
AUR10,CUR10,ZNR1#..LHD |
1 | ||
| 87237-0F020 |
AUR10,ZNR1#..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-05080 |
AUR10,CUR10,ZNR1#..LHD..SOL |
1 | ||
| 88501-0F040 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88501-05080 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88501-0F031 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88501-0F040 |
AUR10..LHD..SOL COLD AREA SPEC |
1 | ||
| 88501-0F041 |
AUR10..LHD..SOL COLD AREA SPEC |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-21040 |
AUR10,ZNR1#..SOL |
1 | ||
| 88515-21040 |
AUR10,ZNR1#..SOL |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-02070 |
AUR10,ZNR1# |
1 | ||
| 88539-02070 |
AUR10,CUR10,ZNR1# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02040 |
AUR10,ZNR1# |
1 | ||
| 88548-02040 |
AUR10,CUR10,ZNR1# |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-02030 |
AUR10,CUR10,ZNR1# |
1 | ||
| 88568-02030 |
AUR10,ZNR1# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
AUR10,CUR10,ZNR1#..SOL |
1 | ||
| 88578-12520 |
AUR10,ZNR1#..SOL |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52070 |
AUR10,CUR10,ZNR1#..LHD..SOL..(DCR,HTWC) |
1 | ||
| 88620-0F020 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0F130 |
AUR10,CUR10,ZNR1#..LHD..SOL NO.1 |
2 | ||
| 88648-0F140 |
AUR10,CUR10,ZNR1#..LHD..SOL NO.2 |
1 | ||
| 88648-0F160 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88648-0F160 |
AUR10,ZNR1#..LHD..SOL..(DCR,DCRE,HTWC) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88648-0F140 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0F080 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88650-0F070 |
AUR10,ZNR1#..SOL..(DCR,DCRE,HTWC) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05350 |
AUR10..LHD..SOL COLD AREA SPEC |
1 | ||
| 88710-05350 |
AUR10,CUR10..LHD..SOL COLD SPEC |
1 | ||
| 88710-05380 |
AUR10,CUR10,ZNR1#..LHD..SOL |
1 | ||
| 88710-05350 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88710-05380 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88569-05010 | ||||
| 88899-02120 | ||||
| 88899-05040 | ||||
| 88899-05060 | ||||
| 88899-05100 | ||||
| 88899-0F280 | ||||
| 90080-11523 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06833 | ||||
| 90119-W0017 | ||||
| 90159-60213 | ||||
| 90159-60383 | ||||
| 90163-W0002 | ||||
| 90179-06314 | ||||
| 90480-01405 | ||||
| 90480-01434 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(0705- )LHD..SOL
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0F080 |
AUR10,CUR10..LHD..SOL COLD SPEC |
1 | ||
| 87050-0F050 |
AUR10,CUR10,ZNR1#..LHD..SOL..(DCR,HTWC) |
1 | ||
| 87050-0F240 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87050-0F140 |
AUR10,ZNR1#..LHD..SOL..(DCR,DCRE,HTWC) |
1 | ||
| 87050-0F230 |
AUR10..LHD..SOL..(DCR,DCRE) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87050-0F150 |
AUR10..LHD..SOL COLD AREA SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02080 |
AUR10,CUR10,ZNR1#..LHD |
1 | ||
| 87103-02080 |
AUR10,ZNR1#..LHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-02030 |
AUR10,ZNR1#..SOL |
1 | ||
| 87106-05030 |
AUR10,ZNR1#..SOL |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-02040 |
AUR10,CUR10,ZNR1#..SOL |
1 | ||
| 87106-02040 |
AUR10,ZNR1#..SOL |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-02070 |
AUR10,CUR10,ZNR1#..LHD |
1 | ||
| 87106-02070 |
AUR10,ZNR1#..LHD |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-05020 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0F020 |
AUR10,CUR10,ZNR1#..LHD..(DCR,HTWC) |
1 | ||
| 87107-0F030 |
AUR10,CUR10..LHD..SOL..DCR COLD SPEC |
1 | ||
| 87107-0F020 |
AUR10,ZNR1#..LHD..(DCR,DCRE,HTWC) |
1 | ||
| 87107-0F030 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87107-0F030 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0F040 |
AUR10,CUR10,ZNR1#..LHD..SOL |
1 | ||
| 87130-0F041 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 87130-0F060 |
AUR10..LHD..SOL..(DCR,DCRE) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87130-0F060 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 87130-0F042 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-13010 |
AUR10,ZNR1#..SOL |
1 | ||
| 87165-13010 |
AUR10,CUR10,ZNR1#..SOL |
1 | ||
| 87165-13010 |
AUR10..LHD..SOL COLD AREA SPEC |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-0F020 |
AUR10,CUR10,ZNR1#..LHD |
1 | ||
| 87237-0F020 |
AUR10,ZNR1#..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-05080 |
AUR10,CUR10,ZNR1#..LHD..SOL |
1 | ||
| 88501-0F040 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88501-05080 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88501-0F031 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88501-0F040 |
AUR10..LHD..SOL COLD AREA SPEC |
1 | ||
| 88501-0F041 |
AUR10..LHD..SOL COLD AREA SPEC |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-21040 |
AUR10,ZNR1#..SOL |
1 | ||
| 88515-21040 |
AUR10,ZNR1#..SOL |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-02070 |
AUR10,ZNR1# |
1 | ||
| 88539-02070 |
AUR10,CUR10,ZNR1# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02040 |
AUR10,ZNR1# |
1 | ||
| 88548-02040 |
AUR10,CUR10,ZNR1# |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-02030 |
AUR10,CUR10,ZNR1# |
1 | ||
| 88568-02030 |
AUR10,ZNR1# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
AUR10,CUR10,ZNR1#..SOL |
1 | ||
| 88578-12520 |
AUR10,ZNR1#..SOL |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52070 |
AUR10,CUR10,ZNR1#..LHD..SOL..(DCR,HTWC) |
1 | ||
| 88620-0F020 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-0F130 |
AUR10,CUR10,ZNR1#..LHD..SOL NO.1 |
2 | ||
| 88648-0F140 |
AUR10,CUR10,ZNR1#..LHD..SOL NO.2 |
1 | ||
| 88648-0F160 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88648-0F160 |
AUR10,ZNR1#..LHD..SOL..(DCR,DCRE,HTWC) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88648-0F140 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-0F130 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88648R - WIRING, COOLER, NO.3 | ||||
| 88648-0F170 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0F080 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88650-0F070 |
AUR10,ZNR1#..SOL..(DCR,DCRE,HTWC) AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 87233-0F030 |
AUR10,ZNR1#..LHD..SOL..(DCR,HTWC) |
1 | ||
| 87233-0F030 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05350 |
AUR10..LHD..SOL COLD AREA SPEC |
1 | ||
| 88710-05350 |
AUR10,CUR10..LHD..SOL COLD SPEC |
1 | ||
| 88710-05380 |
AUR10,CUR10,ZNR1#..LHD..SOL |
1 | ||
| 88710-05350 |
AUR10..LHD..SOL..(DCR,DCRE) COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION) |
1 | ||
| 88710-05380 |
AUR10,ZNR1#..LHD..SOL |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-02180 |
AUR10,ZNR1#..SOL |
1 | ||
| 88897-02180 |
AUR10,ZNR1#..SOL |
1 | ||
| Common parts | ||||
| 87452-0F030 | ||||
| 88467-52030 | ||||
| 88569-05010 | ||||
| 88899-02120 | ||||
| 88899-05040 | ||||
| 88899-05060 | ||||
| 88899-05100 | ||||
| 88899-0F280 | ||||
| 90080-11523 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06833 | ||||
| 90119-W0017 | ||||
| 90159-60213 | ||||
| 90159-60383 | ||||
| 90163-W0002 | ||||
| 90179-06314 | ||||
| 90480-01405 | ||||
| 90480-01434 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
