AUR10L-GRFEYW (2007)
Toyota Corolla Verso
Production
May 2007
-
Feb 2009
Engine
2ADFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )

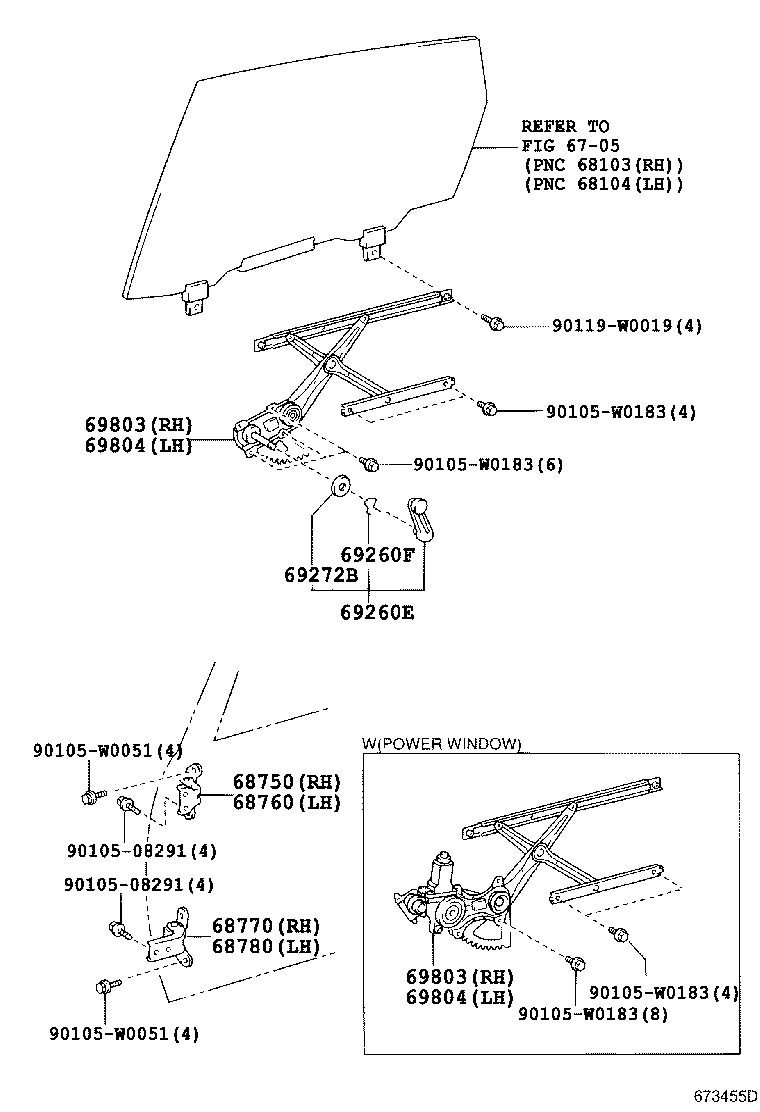

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 68750-0F010 |
AUR10,ZNR1# |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 68760-0F010 |
AUR10,ZNR1# |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-02060 |
AUR10,ZNR1# |
1 | ||
| 68770-02060 |
AUR10,CUR10,ZNR1# |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-02060 |
AUR10,ZNR1# |
1 | ||
| 68780-02060 |
AUR10,CUR10,ZNR1# |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-0F020 |
AUR10,ZNR1#..SOL |
1 | ||
| 69830-0F020 |
AUR10,ZNR1#..SOL |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-0F020 |
AUR10,ZNR1#..SOL |
1 | ||
| 69830-0F020 |
AUR10,ZNR1#..SOL |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-0F020 |
AUR10,ZNR1#..SOL |
1 | ||
| 69840-0F020 |
AUR10,ZNR1#..SOL |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-0F020 |
AUR10,ZNR1#..SOL |
1 | ||
| 69840-0F020 |
AUR10,ZNR1#..SOL |
1 | ||
| Common parts | ||||
| 90105-08291 | ||||
| 90105-W0051 | ||||
| 90105-W0183 | ||||
| 90119-W0019 | ||||
| Linked diagrams | ||||
| 6705 | ||||
