AUR10L-GRFEYW (2007)
Toyota Corolla Verso
(0402- )

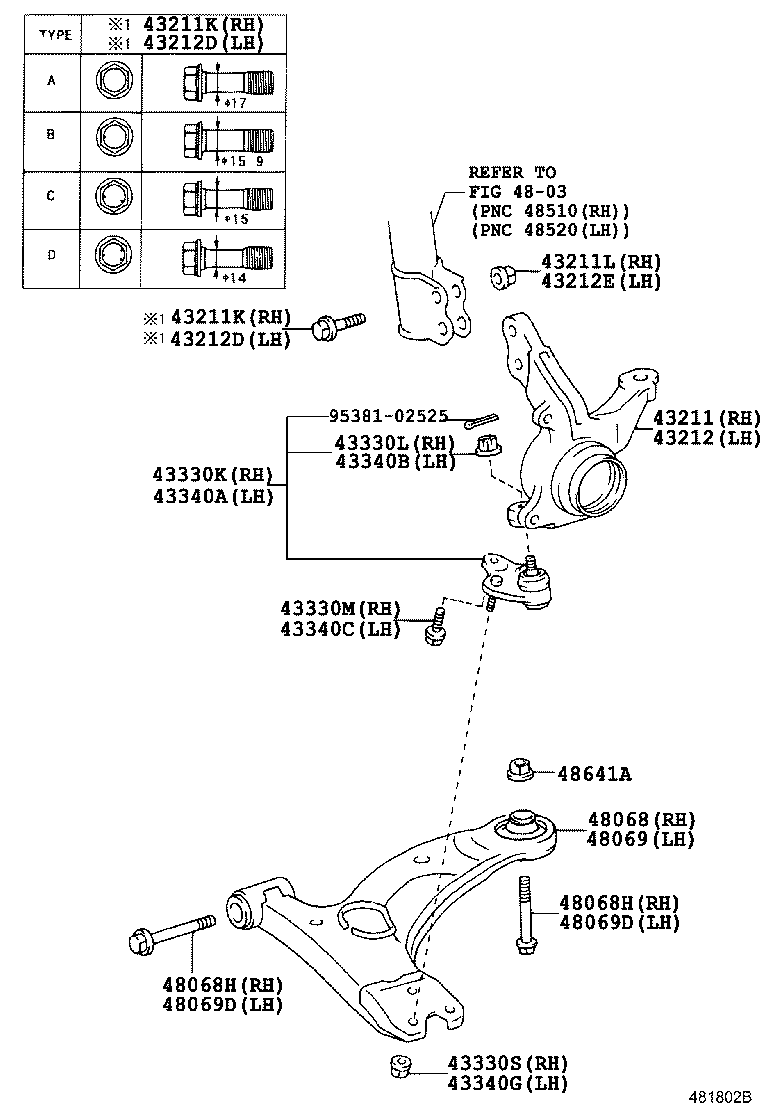

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-0F010 |
AUR10,ZNR1# |
1 | ||
| 43211-0F010 |
AUR10,ZNR1# |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17009 |
AUR10,CUR10,ZNR1# OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17011 |
AUR10,CUR10,ZNR1# OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 90105-17010 |
AUR10,CUR10,ZNR1# OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17009 |
AUR10,ZNR1# OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 90105-W0070 |
AUR10,ZNR1# OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-W0070 |
AUR10,CUR10,ZNR1# OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-17011 |
AUR10,ZNR1# OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 90105-17010 |
AUR10,ZNR1# OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17009 |
AUR10,CUR10,ZNR1# OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17011 |
AUR10,CUR10,ZNR1# OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 90105-17010 |
AUR10,CUR10,ZNR1# OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17009 |
AUR10,ZNR1# OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 90105-W0070 |
AUR10,ZNR1# OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-W0070 |
AUR10,CUR10,ZNR1# OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-17011 |
AUR10,ZNR1# OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 90105-17010 |
AUR10,ZNR1# OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90178-17001 |
AUR10,ZNR1# |
2 | ||
| 90178-17001 |
AUR10,ZNR1# |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-0F010 |
AUR10,ZNR1# |
1 | ||
| 43212-0F010 |
AUR10,ZNR1# |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17010 |
AUR10,ZNR1# OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 90105-W0070 |
AUR10,CUR10,ZNR1# OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-17009 |
AUR10,ZNR1# OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17010 |
AUR10,CUR10,ZNR1# OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17011 |
AUR10,CUR10,ZNR1# OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 90105-17011 |
AUR10,ZNR1# OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 90105-W0070 |
AUR10,ZNR1# OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-17009 |
AUR10,CUR10,ZNR1# OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17010 |
AUR10,ZNR1# OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 90105-W0070 |
AUR10,CUR10,ZNR1# OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-17009 |
AUR10,ZNR1# OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17010 |
AUR10,CUR10,ZNR1# OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17011 |
AUR10,CUR10,ZNR1# OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 90105-17011 |
AUR10,ZNR1# OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 90105-W0070 |
AUR10,ZNR1# OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-17009 |
AUR10,CUR10,ZNR1# OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90178-17001 |
AUR10,ZNR1# |
2 | ||
| 90178-17001 |
AUR10,ZNR1# |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-09360 |
AUR10,ZNR1# |
1 | ||
| 43330-09360 |
AUR10,ZNR1# |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
AUR10,ZNR1# |
1 | ||
| 90171-14003 |
AUR10,CUR10,ZNR1# |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-W0077 |
AUR10,ZNR1# |
1 | ||
| 90105-W0077 |
AUR10,ZNR1# |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90178-W0037 |
AUR10,ZNR1# |
2 | ||
| 90178-W0037 |
AUR10,ZNR1# |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-09360 |
AUR10,ZNR1# |
1 | ||
| 43330-09360 |
AUR10,ZNR1# |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
AUR10,ZNR1# |
1 | ||
| 90171-14003 |
AUR10,ZNR1# |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-W0077 |
AUR10,ZNR1# |
1 | ||
| 90105-W0077 |
AUR10,ZNR1# |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90178-W0037 |
AUR10,ZNR1# |
2 | ||
| 90178-W0037 |
AUR10,ZNR1# |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-0F010 |
AUR10,ZNR1# |
1 | ||
| 48068-0F010 |
AUR10,ZNR1# |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-W0086 |
AUR10,ZNR1# |
2 | ||
| 90119-W0086 |
AUR10,ZNR1# |
2 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-W0086 |
AUR10,ZNR1# |
2 | ||
| 90119-W0086 |
AUR10,ZNR1# |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-0F010 |
AUR10,ZNR1# |
1 | ||
| 48069-0F010 |
AUR10,ZNR1# |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-W0086 |
AUR10,ZNR1# |
2 | ||
| 90119-W0086 |
AUR10,ZNR1# |
2 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-W0086 |
AUR10,ZNR1# |
2 | ||
| 90119-W0086 |
AUR10,ZNR1# |
2 | ||
| 48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90179-14068 |
AUR10,ZNR1# |
2 | ||
| 90179-14068 |
AUR10,ZNR1# |
2 | ||
| Common parts | ||||
| 95381-02525 | ||||
| Linked diagrams | ||||
| 4803 | ||||
