AUR10L-GRFEYW (2007)

Toyota Corolla Verso

Production May 2007 - Feb 2009
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )LHD..5F,6F

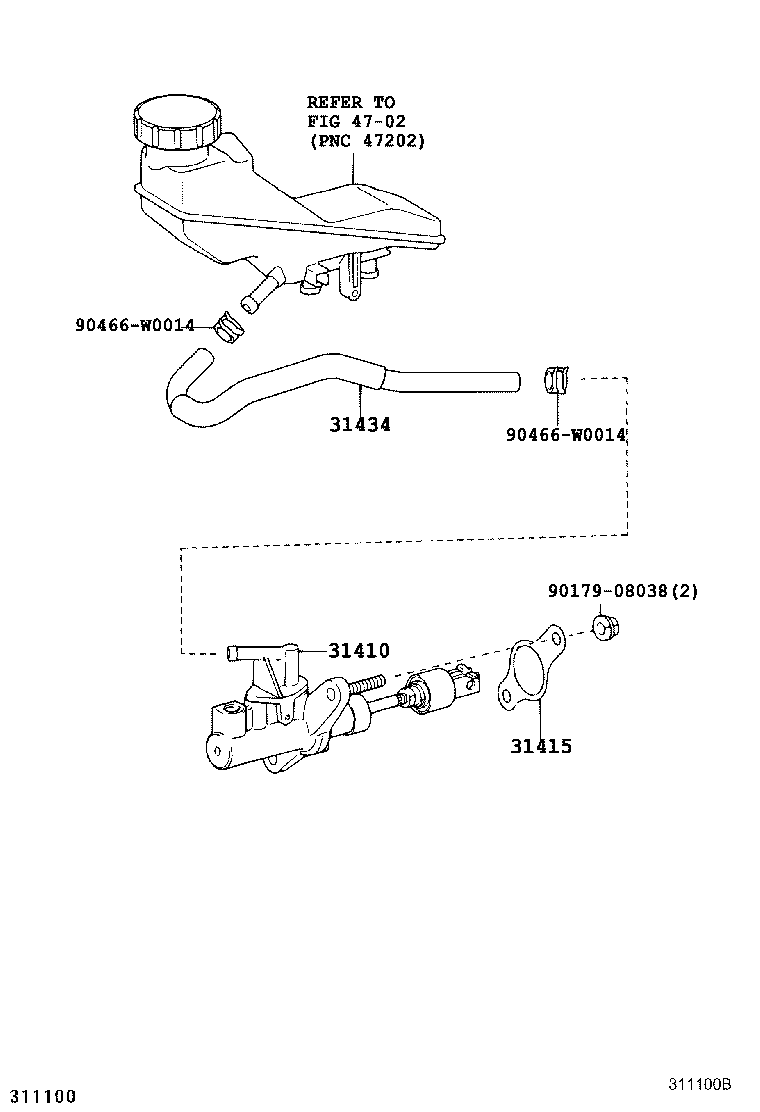

Click highlighted areas on diagram

diagram 31410 31415 31434 4702 9017908038 90466W0014 90466W0014
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-05041

AUR10..LHD

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-10010

AUR10,ZNR1#..5F,6F

 1
31415-10010

AUR10,CUR10,ZNR1#..5F,6F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-0F020

AUR10,ZNR1#..LHD..(5F,6F)

 1
31434-0F020

AUR10,ZNR1#..LHD..(5F,6F)

 1
Common parts
90179-08038
90466-W0014
Linked diagrams
4702
