ZZE150R-AEMNKW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Dec 2008
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )4ZZFE

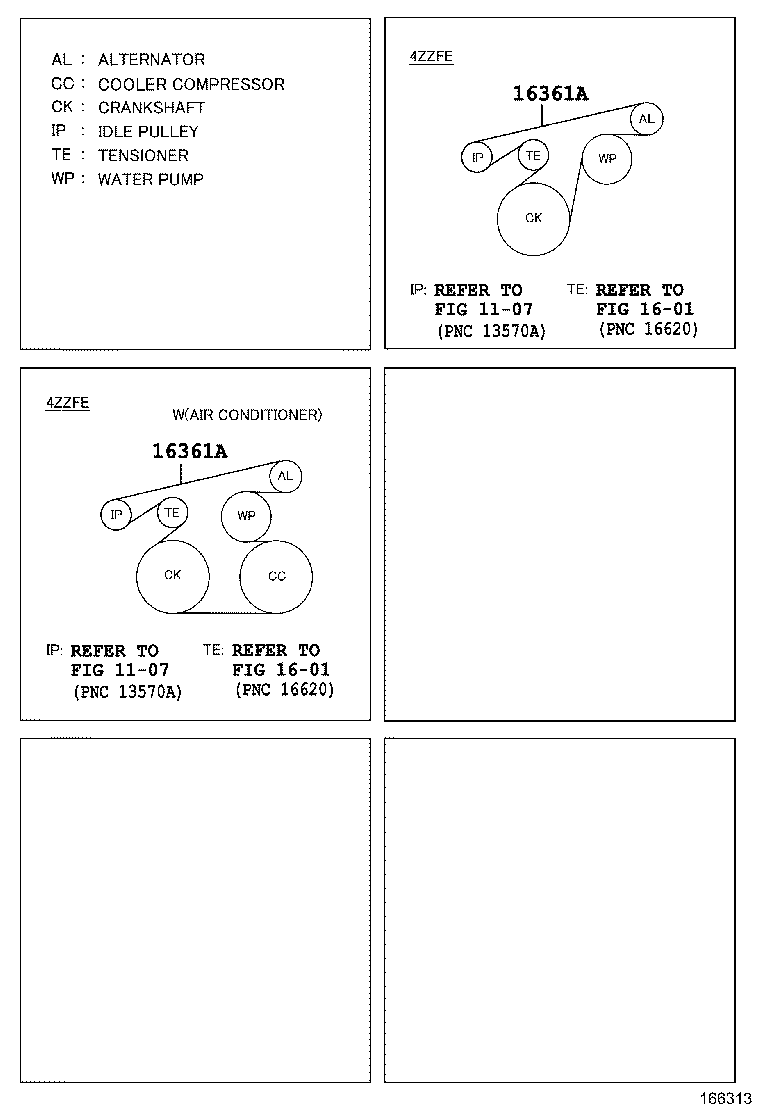

Click highlighted areas on diagram

diagram 1107 1107 1601 1601 16361A 16361A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02539

4ZZFE..ZZE150..D

 1
90916-02574

4ZZFE..ZZE150..D

MANUAL AIR CONDITIONER(MAKER OPTION)

 1
90916-02574

4ZZFE..ZZE150..N

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02539

4ZZFE..ZZE150..D

 1
90916-02574

4ZZFE..ZZE150..D

MANUAL AIR CONDITIONER(MAKER OPTION)

 1
90916-02574

4ZZFE..ZZE150..N

 1
Linked diagrams
1107
1601
