ZZE150R-AEMDKW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Dec 2008
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611-0812)ZZE150..RHD

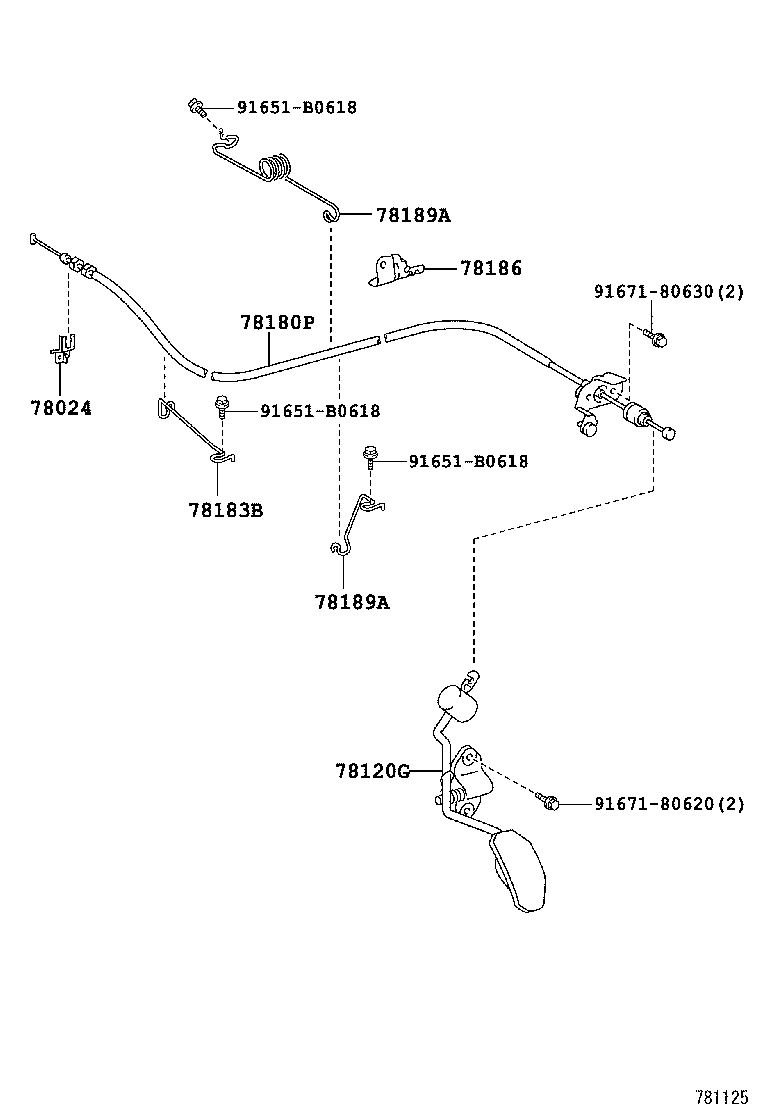

Click highlighted areas on diagram

diagram 78024 78120G 78180P 78183B 78186 78189A 78189A 91651B0618 91651B0618 91651B0618 9167180620 9167180630
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-12090

ZZE150

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12380

ZZE150..RHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-12A00

ZZE150..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12280

ZZE150..RHD

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12430

ZZE150..RHD

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12170

ZZE150..RHD

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12170

ZZE150..RHD

 1
Common parts
91651-B0618
91671-80620
91671-80630
