ZZE150L-AEMNKW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Dec 2008
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611-0812)4ZZFE

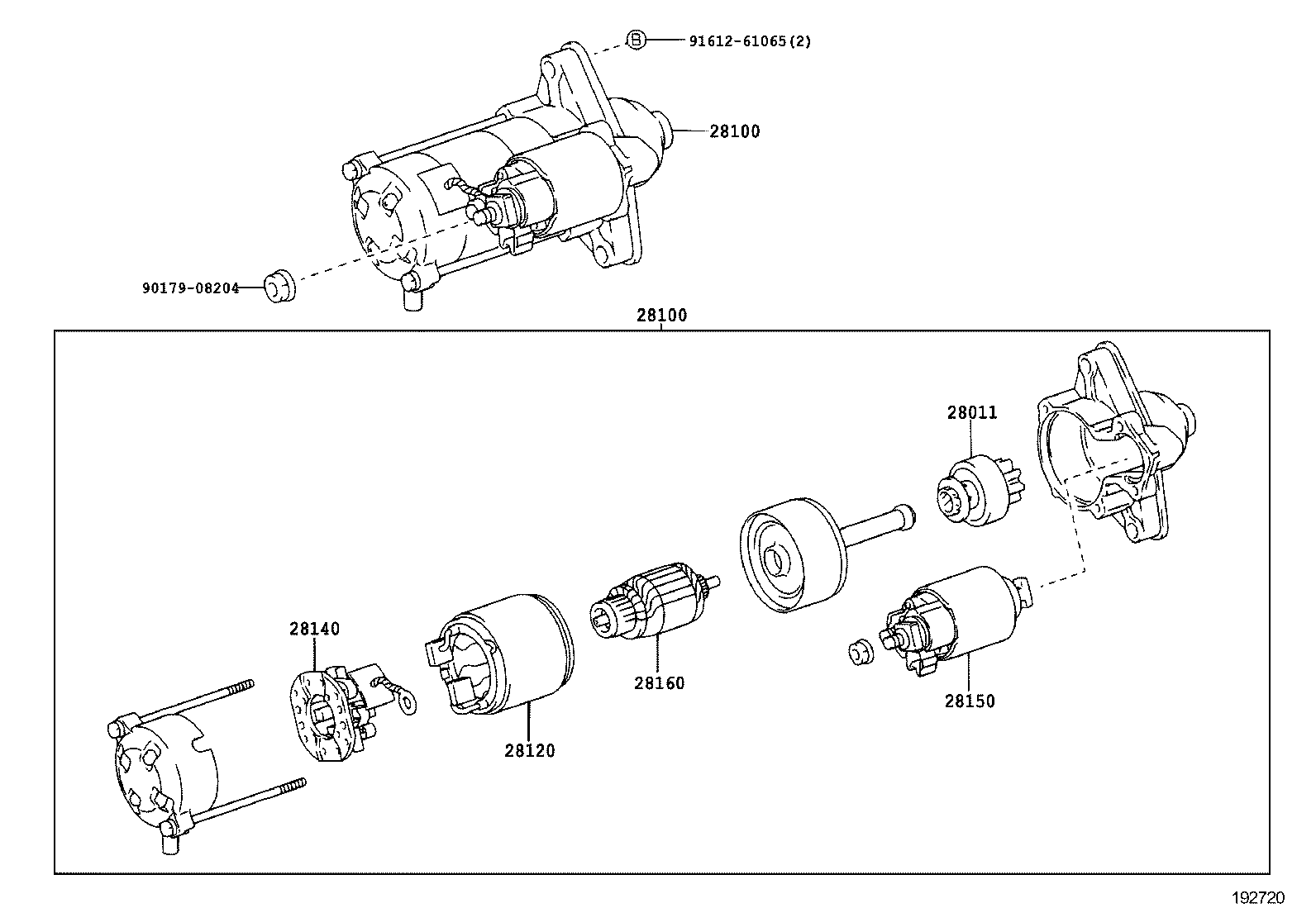

Click highlighted areas on diagram

12V 0.8KW,1.0KW

diagram 28011 28100 28100 28120 28140 28150 28160 9017908204 9161261065
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020

1ZRFE,4ZZFE..ZRE151,ZZE150

 1
28100 - STARTER ASSY
28100-22040

4ZZFE..ZZE150..LHD

12V 1.0KW,COLD AREA SPEC

 1
28100-22040

4ZZFE..ZZE150

12V 1.0KW,SUB COLD AREA SPEC

 1
28100-22030

4ZZFE..ZZE150

12V 0.8KW

 1
28100 - STARTER ASSY
28100-22040

4ZZFE..ZZE150..LHD

12V 1.0KW,COLD AREA SPEC

 1
28100-22040

4ZZFE..ZZE150

12V 1.0KW,SUB COLD AREA SPEC

 1
28100-22030

4ZZFE..ZZE150

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-70050

1ZRFE,4ZZFE..ZRE151,ZZE150

SUB COLD AREA SPEC

 1
28120-70020

1ZRFE,4ZZFE..ZRE151,ZZE150

 1
28120-70050

1ZRFE,4ZZFE..ZRE151,ZZE150..LHD

COLD AREA SPEC

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020

1ZRFE,4ZZFE..ZRE151,ZZE150

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-70030

4ZZFE..ZZE150

 1
28150-22100

4ZZFE..ZZE150

 1
28160 - ARMATURE ASSY, STARTER
28160-70050

1ZRFE,4ZZFE..ZRE151,ZZE150

SUB COLD AREA SPEC

 1
28160-70021

1ZRFE,4ZZFE..ZRE151,ZZE150

 1
28160-70050

1ZRFE,4ZZFE..ZRE151,ZZE150..LHD

COLD AREA SPEC

 1
Common parts
90179-08204
91612-61065
