ZRE151R-AEMDKW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Dec 2008
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0611- )NRE150,ZRE151,ZZE150..RHD

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 55107A 8401 8401 8401 8401 9017910088 9163560832 9167380816
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31311-12370

NDE150,ZRE151,ZZE150..RHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

ZRE151,ZZE150..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NDE150,ZRE151,ZZE150..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NDE150,ZRE151,ZZE150..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NDE150,ZRE151,ZZE150..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NDE150,ZRE151,ZZE150..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

NDE150,ZRE151,ZZE150..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-61000

NDE150,ZRE151,ZZE150..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-42010

NDE150,ZRE151,ZZE150..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

NDE150,ZRE151,ZZE150..RHD

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

NDE150,ZRE151,ZZE150..RHD

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12270

ZRE151,ZZE150..RHD

 1
Common parts
90179-10088
91635-60832
91673-80816
Linked diagrams
8401

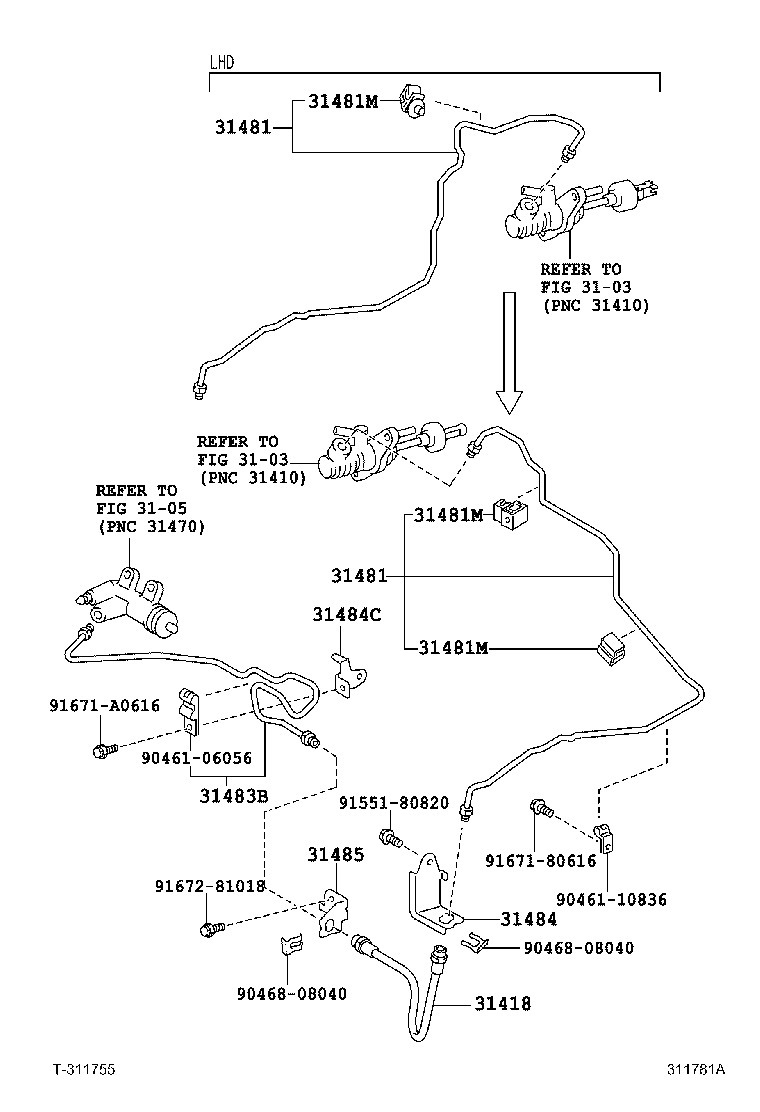

ILLUST NO. 2 OF 2(0611-0812)ZRE151..5F

Click highlighted areas on diagram

diagram 3103 3103 3105 31418 31481 31481 31481M 31481M 31481M 31483B 31484 31484C 31485 9046106056 9046110836 9046808040 9046808040 9155180820 9167180616 91671A0616 9167281018
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02E28

NDE150,ZRE151,ZZE150..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12370

NDE150,ZRE151,ZZE150..RHD

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12370

NDE150,ZRE151,ZZE150..RHD

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

NDE150,ZRE151,ZZE150..RHD

 2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

NDE150,ZRE151,ZZE150..RHD

 2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

NDE150,ZRE151,ZZE150..RHD

 2
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-12120

ZRE151..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12500

NDE150,ZRE151,ZZE150..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52150

ZRE151,ZZE150..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12510

ZRE151,ZZE150..5F

 1
Common parts
90461-06056
90461-10836
90468-08040
91551-80820
91671-80616
91671-A0616
91672-81018
Linked diagrams
3103
3105
