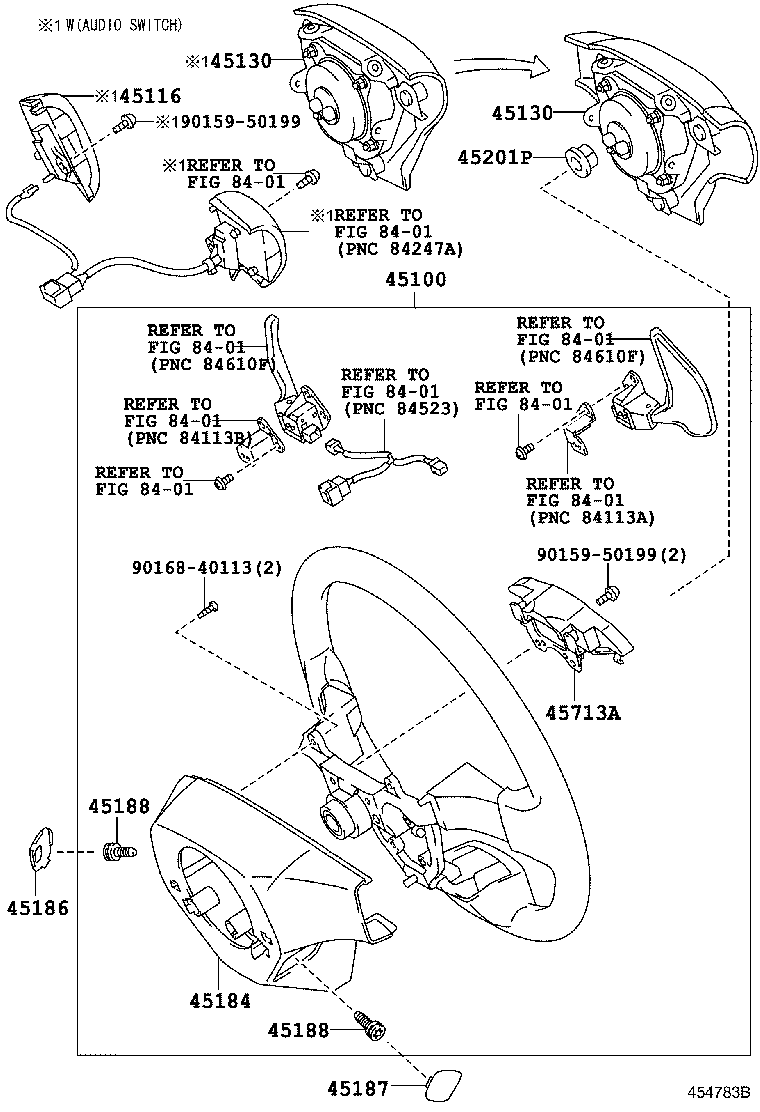

ZRE151L-AEGNKW (2006)
Toyota Corolla Sed (Jpp)
(0611-1004)4FC,5F,6F
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12D60B0 |
NDE150,ZRE151,ZZE150..5F..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D80B0 |
ZRE151..5FS..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D70B0 |
ZRE151..5FS..D 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D80E0 |
NDE150,ZRE151..5FS..N 3-SPOKE,LEATHER,ASH BROWN,TRIM4# |
1 | ||
| 45100-12D60B0 |
NDE150,ZRE151,ZZE150..5F..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45100-12D80B0 |
ZRE151..5FS..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45100-12D80B0 |
NDE150,ZRE151..5FS..N 3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D60B0 |
NDE150,ZRE151,ZZE150..5F..N 3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D60E0 |
NDE150,ZRE151,ZZE150..5F..N 3-SPOKE,LEATHER,ASH BROWN,TRIM4# |
1 | ||
| 45100-12D50B0 |
NDE150,ZRE151,ZZE150..5F..D 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-48010 |
NDE150,ZRE151,ZZE150..5F STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 45107-48010 |
NDE150,ZRE151,ZZE150..5F |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-52030 |
ZRE151..LHD..5F..N REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(EUROPE NTA NAME PLATE)&CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 45116-52030 |
NDE150,ZRE151,ZZE150 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 45116-52030 |
ZRE151..LHD..5F..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY) |
1 | ||
| 45116-52030 |
ZRE151..LHD..5F..N REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(EUROPE NTA NAME PLATE)&CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12B40E0 |
NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 45130-12B50E0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B40B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 45130-12B50B0 |
NDE150,ZRE151,ZZE150 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45130-12B50E0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B50B0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12B40E0 |
NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 45130-12B50E0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B40B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 45130-12B50B0 |
NDE150,ZRE151,ZZE150 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45130-12B50E0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B50B0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),DK.GRAY,TRIM1# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-12340B0 |
NDE150,ZRE151,ZZE150..5F DK.GRAY,TRIM1# |
1 | ||
| 45184-12350E0 |
NDE150,ZRE151..5FS..N ASH BROWN,TRIM4# |
1 | ||
| 45184-12340E0 |
NDE150,ZRE151,ZZE150..5F..N ASH BROWN,TRIM4# |
1 | ||
| 45184-12350B0 |
NDE150,ZRE151..5FS DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-12010E0 |
ZRE151..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),ASH BROWN,TRIM4# |
1 | ||
| 45186-12010E0 |
ZRE151..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4# |
1 | ||
| 45186-12010B0 |
ZRE151..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45186-12020B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 45186-12010B0 |
ZRE151..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),DK.GRAY,TRIM1# |
1 | ||
| 45186-12020E0 |
NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-12020B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 45187-12020E0 |
NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-12080 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0611-1004)5FS,6FS
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12D60B0 |
NDE150,ZRE151,ZZE150..5F..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D80B0 |
ZRE151..5FS..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D70B0 |
ZRE151..5FS..D 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D80E0 |
NDE150,ZRE151..5FS..N 3-SPOKE,LEATHER,ASH BROWN,TRIM4# |
1 | ||
| 45100-12D60B0 |
NDE150,ZRE151,ZZE150..5F..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45100-12D80B0 |
ZRE151..5FS..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45100-12D80B0 |
NDE150,ZRE151..5FS..N 3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D60B0 |
NDE150,ZRE151,ZZE150..5F..N 3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D60E0 |
NDE150,ZRE151,ZZE150..5F..N 3-SPOKE,LEATHER,ASH BROWN,TRIM4# |
1 | ||
| 45100-12D50B0 |
NDE150,ZRE151,ZZE150..5F..D 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-52030 |
ZRE151..LHD..5F..N REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(EUROPE NTA NAME PLATE)&CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 45116-52030 |
NDE150,ZRE151,ZZE150 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 45116-52030 |
ZRE151..LHD..5F..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY) |
1 | ||
| 45116-52030 |
ZRE151..LHD..5F..N REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(EUROPE NTA NAME PLATE)&CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12B40E0 |
NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 45130-12B50E0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B40B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 45130-12B50B0 |
NDE150,ZRE151,ZZE150 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45130-12B50E0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B50B0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12B40E0 |
NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 45130-12B50E0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B40B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 45130-12B50B0 |
NDE150,ZRE151,ZZE150 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45130-12B50E0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B50B0 |
NDE150,ZRE151,ZZE150..N STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),DK.GRAY,TRIM1# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-12340B0 |
NDE150,ZRE151,ZZE150..5F DK.GRAY,TRIM1# |
1 | ||
| 45184-12350E0 |
NDE150,ZRE151..5FS..N ASH BROWN,TRIM4# |
1 | ||
| 45184-12340E0 |
NDE150,ZRE151,ZZE150..5F..N ASH BROWN,TRIM4# |
1 | ||
| 45184-12350B0 |
NDE150,ZRE151..5FS DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-12010E0 |
ZRE151..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),ASH BROWN,TRIM4# |
1 | ||
| 45186-12010E0 |
ZRE151..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4# |
1 | ||
| 45186-12010B0 |
ZRE151..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45186-12020B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 45186-12010B0 |
ZRE151..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),DK.GRAY,TRIM1# |
1 | ||
| 45186-12020E0 |
NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-12020B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 45187-12020E0 |
NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-12080 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8401 | ||||
