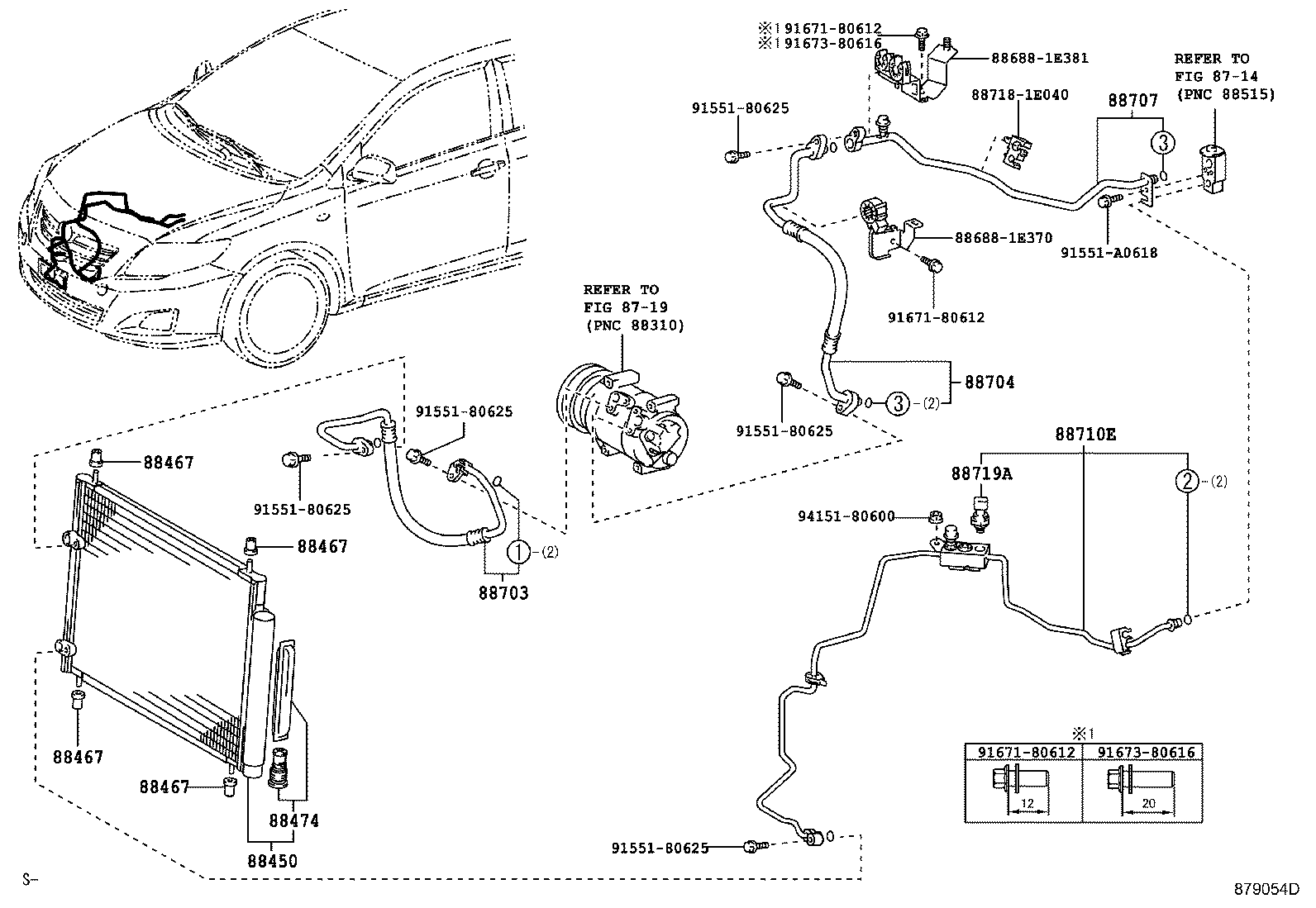

Toyota Corolla sed (jpp) ZRE151 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88450 - CONDENSER ASSY, W/RECEIVER
88450-12280	NRE150,ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	1
88450-12280	ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	1
88450-12280	ZRE151,ZZE150..N	11/2006 - 12/2008	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NDE150,ZRE151,ZZE150..N	11/2006 - 12/2008	4
16716-28010	NDE150,NRE150,ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	4
16716-28010	NDE150,ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NDE150,ZRE151,ZZE150..N	11/2006 - 12/2008	4
16716-28010	NDE150,NRE150,ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	4
16716-28010	NDE150,ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NDE150,ZRE151,ZZE150..N	11/2006 - 12/2008	4
16716-28010	NDE150,NRE150,ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	4
16716-28010	NDE150,ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NDE150,ZRE151,ZZE150..N	11/2006 - 12/2008	4
16716-28010	NDE150,NRE150,ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	4
16716-28010	NDE150,ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	4
88474 - DRYER, COOLER
88474-12030	ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	1
88474-12030	NRE150,ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	1
88474-12030	ZRE151,ZZE150..N	11/2006 - 12/2008	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-12830	ZRE151..N	11/2006 - 12/2008	1
88703-12830	ZRE151..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	1
88703-12830	ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
88703-12830	ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	1
88704 - HOSE SUB-ASSY, SUCTION
88704-1A180	ZRE151..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2006	1
88704-1A181	ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
88704-1A180	ZRE151..N	11/2006 - 12/2006	1
88704-1A181	ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	1
88707 - PIPE SUB-ASSY, SUCTION
88707-12250	ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL	12/2008 - 02/2010	1
88707-12250	NDE150,ZRE151,ZZE150..N	11/2006 - 12/2008	1
88707-12250	NDE150,ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	1
88707-12250	NDE150,ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-12760	ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
88710-12760	ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	1
88710-12760	ZRE151,ZZE150..N	11/2006 - 12/2008	1
88710-12760	ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL	12/2008 - 02/2010	1
88719-33020	NDE150,ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION)	11/2006 - 12/2008	1
88719-33020	NDE150,NRE150,ZRE151..D AIR CONDITIONER-MANUAL	12/2008 - 02/2010	1
88719-33020	NDE150,ZRE151,ZZE150..N	11/2006 - 12/2008	1
Common parts
88688-1E370
88688-1E381
88718-1E040
91551-80625
91551-A0618
91671-80612
91673-80616
94151-80600
Linked diagrams
8714
8719

ZRE151L-AEFNPW (2008)

ILLUST NO. 1 OF 2(0611- )ZRE151

ILLUST NO. 2 OF 2(0611- )
