ZRE151L-AEFNPW (2008)
Toyota Corolla Sed (Jpp)

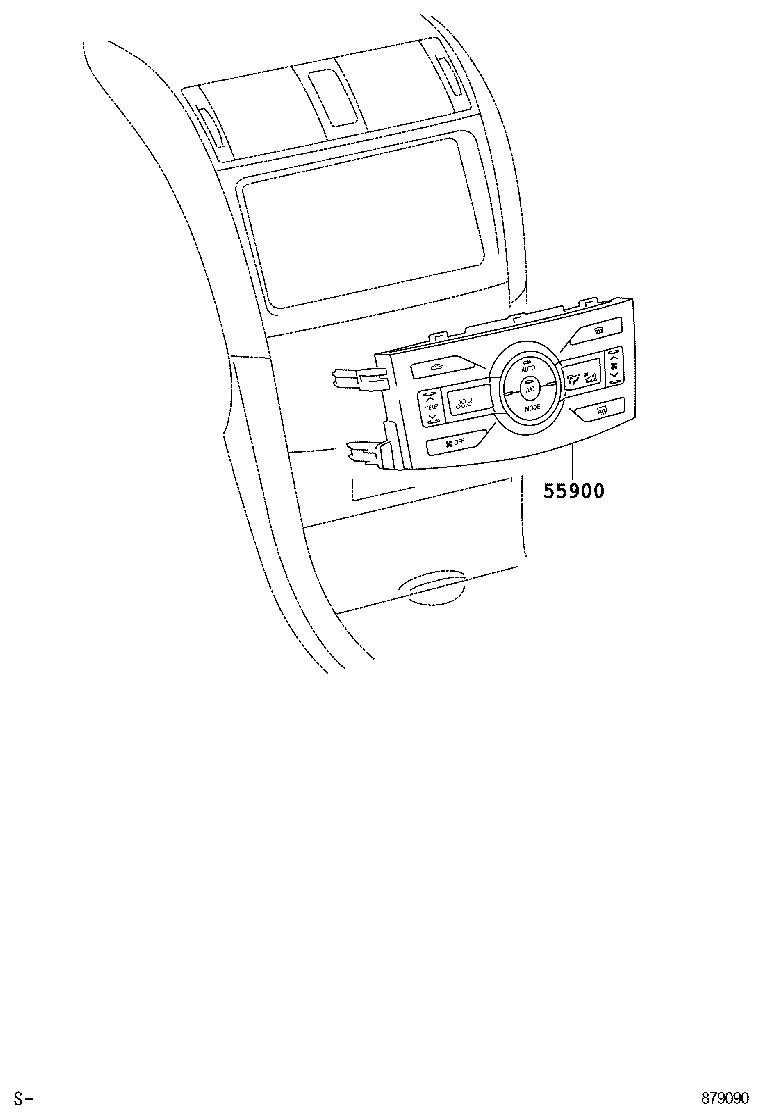

ILLUST NO. 1 OF 3(0611- )
MANUAL CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-12140 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 55901-12140 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55901-12140 |
ADE150,NDE150,ZRE151..LHD..N..(DCRL,HTWVM) COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55901-12140 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55901-12140 |
NDE150,ZRE151,ZZE150..LHD..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 55901-12140 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-12070 |
NDE150,ZRE151,ZZE150..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 55902-12070 |
NDE150,ZRE151,ZZE150..LHD COLD AREA SPEC |
1 | ||
| 55902-12060 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55902-12060 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 55902-12070 |
NDE150,ZRE151,ZZE150 SUB COLD AREA SPEC |
1 | ||
| 55902-12070 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) COLD AREA SPEC |
1 | ||
| 55902-12060 |
NDE150,ZRE151,ZZE150..LHD..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 55902-12060 |
ADE150,NDE150,ZRE151..LHD..N..(DCRL,HTWVM) COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55902-12060 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55902-12070 |
NDE150,NRE150,ZRE151..D SUB COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 55902-12070 |
NDE150,NRE150,ZRE151..LHD..D COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 55902-12070 |
NDE150,ZRE151,ZZE150..D SUB COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 55902-12070 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM SUB COLD AREA SPEC |
1 | ||
| 55902-12060 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-12010 |
ZRE151,ZZE150..N |
1 | ||
| 55903-12010 |
ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 55903-12010 |
ZRE151,ZZE150..N SUB COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 55903-12010 |
ZRE151,ZZE150..N AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 55903-12010 |
ZRE151,ZZE150..D SUB COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 55903-12030 |
ZRE151,ZZE150..D |
1 | ||
| 55903-12020 |
ZRE151..LHD..N COLD AREA SPEC |
1 | ||
| 55903-12040 |
ZRE151..LHD..D COLD AREA SPEC |
1 | ||
| 55903-12010 |
ZRE151,ZZE150..LHD..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 55903-12020 |
ZRE151..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 55903-12010 |
NRE150,ZRE151..D SUB COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 55903-12010 |
ZRE151..LHD..N..HTWVM |
1 | ||
| 55903-12010 |
ZRE151..LHD..N..HTWVM COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55903-12020 |
ZRE151..LHD..N..HTWVM COLD AREA SPEC |
1 | ||
| 55903-12010 |
ZRE151..LHD..N..HTWVM AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55903-12010 |
ZRE151..LHD..N..HTWVM SUB COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55903-12010 |
NRE150,ZRE151..D AIR CONDITIONER-MANUAL |
1 | ||
| 55903-12030 |
NRE150,ZRE151..D |
1 | ||
| 55903-12020 |
NRE150,ZRE151..LHD..D COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 55903-12040 |
NRE150,ZRE151..LHD..D COLD AREA SPEC |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
NDE150,ZRE151,ZZE150 |
3 | ||
| 90010-01122 |
ADE150,NDE150,ZRE151..LHD..N..(DCRL,HTWVM) COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
3 | ||
| 90010-01122 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL AIR CONDITIONER-AUTO(SINGLE MODE) |
3 | ||
| 90010-01122 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
3 | ||
| 90010-01122 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
3 | ||
| 90010-01122 |
NDE150,ZRE151,ZZE150..LHD..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
3 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
NDE150,ZRE151,ZZE150 |
3 | ||
| 90010-01122 |
ADE150,NDE150,ZRE151..LHD..N..(DCRL,HTWVM) COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
3 | ||
| 90010-01122 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL AIR CONDITIONER-AUTO(SINGLE MODE) |
3 | ||
| 90010-01122 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
3 | ||
| 90010-01122 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
3 | ||
| 90010-01122 |
NDE150,ZRE151,ZZE150..LHD..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
3 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
NDE150,ZRE151,ZZE150 |
3 | ||
| 90010-01122 |
ADE150,NDE150,ZRE151..LHD..N..(DCRL,HTWVM) COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
3 | ||
| 90010-01122 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL AIR CONDITIONER-AUTO(SINGLE MODE) |
3 | ||
| 90010-01122 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
3 | ||
| 90010-01122 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
3 | ||
| 90010-01122 |
NDE150,ZRE151,ZZE150..LHD..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
3 | ||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 1 OF 3(0611- )
AUTO CONTROL
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 3(0611- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-12130 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55085-12130 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-12190 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 55086-12190 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12280 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55950-12280 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-12080 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55990-12080 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87220-12040 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 87220-12040 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-12350 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) |
1 | ||
| 87211-12350 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-12340 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) |
1 | ||
| 87211-12340 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87213-12090 |
NDE150,ZRE151,ZZE150 SUB COLD AREA SPEC |
1 | ||
| 87213-12090 |
NDE150,ZRE151,ZZE150..LHD COLD AREA SPEC |
1 | ||
| 87213-12090 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) COLD AREA SPEC |
1 | ||
| 87213-12090 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM SUB COLD AREA SPEC |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87215-12050 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM SUB COLD AREA SPEC |
1 | ||
| 87215-12050 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) COLD AREA SPEC |
1 | ||
| 87215-12050 |
NDE150,ZRE151,ZZE150..LHD COLD AREA SPEC |
1 | ||
| 87215-12050 |
NDE150,ZRE151,ZZE150 SUB COLD AREA SPEC |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87212-12130 |
NDE150,ZRE151,ZZE150..LHD COLD AREA SPEC |
1 | ||
| 87212-12130 |
NDE150,ZRE151,ZZE150 SUB COLD AREA SPEC |
1 | ||
| 87212-12130 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) COLD AREA SPEC |
1 | ||
| 87212-12130 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM SUB COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90179-06314 | ||||
| 93568-55014 | ||||

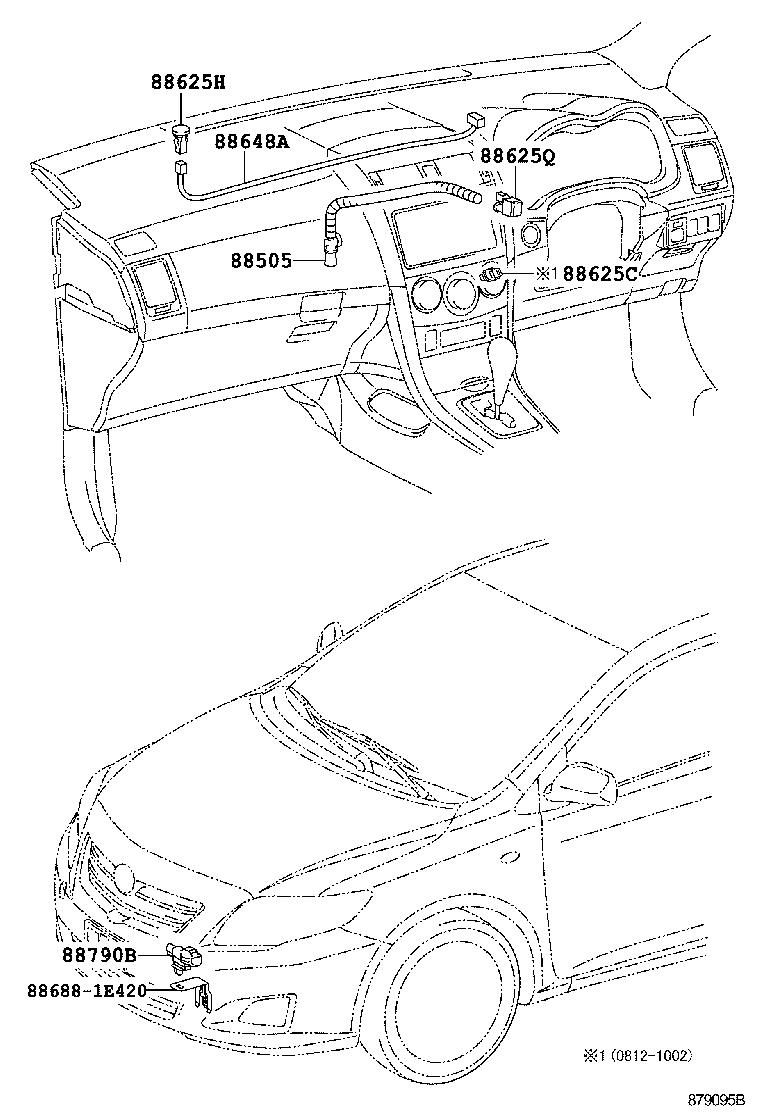

ILLUST NO. 3 OF 3(0611- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-12020 |
NDE150,ZRE151,ZZE150..LHD..N AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 88505-12020 |
ADE150,NDE150,ZRE151..LHD..N..(DCRL,HTWVM) AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
NDE150,ZRE151,ZZE150..N AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 88625-47031 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88625-47031 |
NDE150,ZRE151,ZZE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 88625-47031 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88625-47021 |
NDE150,ZRE151,ZZE150..N AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 88625-47021 |
NDE150,ZRE151,ZZE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 88625-47021 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-12730 |
NDE150,ZRE151,ZZE150..N AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 88648-12730 |
ZRE151..LHD..N..HTWVM;ADE150,NDE150..N..DCRL AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 88790-22131 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| Common parts | ||||
| 88688-1E420 | ||||
