ZRE151L-AEFNPW (2008)
Toyota Corolla Sed (Jpp)

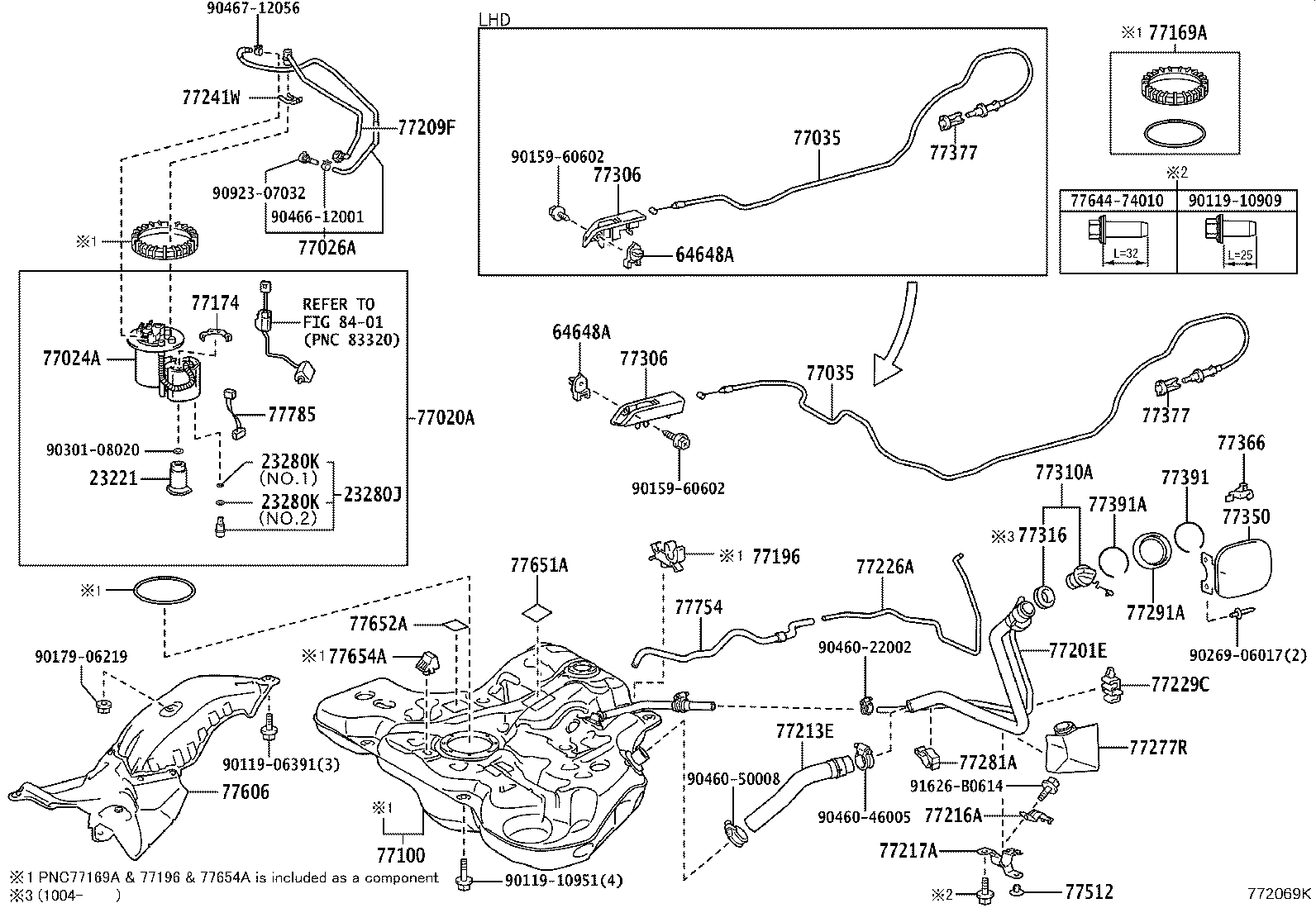

ILLUST NO. 1 OF 2(0611- )ZRE151,ZZE150
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-37050 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 90301-15024 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 90301-15024 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-12570 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77020-12570 |
ZRE151 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12050 |
ZRE151,ZZE150 |
1 | ||
| 77024-12050 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-12030 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77026-12030 |
ZRE151,ZZE150 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12460 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 77035-12460 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12460 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 77035-12460 |
ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12B60 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77001-12B60 |
ZRE151,ZZE150 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-12020 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77174-12020 |
ZRE151,ZZE150 |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-12080 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77196-12080 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-12680 |
ZRE151,ZZE150 |
1 | ||
| 77201-12790 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12210 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77209-12210 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12300 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77213-12300 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-12060 |
ZRE151,ZZE150 |
1 | ||
| 77226-12060 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12070 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77229-12070 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
ZRE151,ZZE150 |
1 | ||
| 77241-33011 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77241-60320 |
NRE150,ZRE151 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12180 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77277-12180 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12100 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77281-12100 |
ZRE151,ZZE150 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-12170 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77291-12170 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77300-52030 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12490 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77350-12490 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77360-30080 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-35010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77377-35010 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-35010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77377-35010 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77391-12020 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-53010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77391-53010 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77512-35140 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-12130 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77606-12130 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77651-12070 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-45020 |
NDE150,ZRE151,ZZE150 |
3 | ||
| 77652-45020 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
3 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12090 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77654-12090 |
ZRE151,ZZE150 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12160 |
ZRE151,ZZE150 |
1 | ||
| 77754-12160 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12020 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77785-12020 |
ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 77644-74010 | ||||
| 90119-06391 | ||||
| 90119-10909 | ||||
| 90119-10951 | ||||
| 90159-60602 | ||||
| 90179-06219 | ||||
| 90269-06017 | ||||
| 90301-08020 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-12001 | ||||
| 90467-12056 | ||||
| 90923-07032 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0611- )NRE150,ZRE151,ZZE150
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12810 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77251-12720 |
ZRE151,ZZE150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12510 |
ZRE151,ZZE150 |
1 | ||
| 77261-12580 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
ZRE151,ZZE150 |
2 | ||
| 77285-42110 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
ZRE151,ZZE150 |
2 | ||
| 77285-42110 |
ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12120 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 77286-20190 |
ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12120 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
