Toyota Corolla sed (jpp) ZRE151 STEERING COLUMN & SHAFT

ZRE151L-AEFNPW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Feb 2010

Engine 1ZRFAE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0611- )

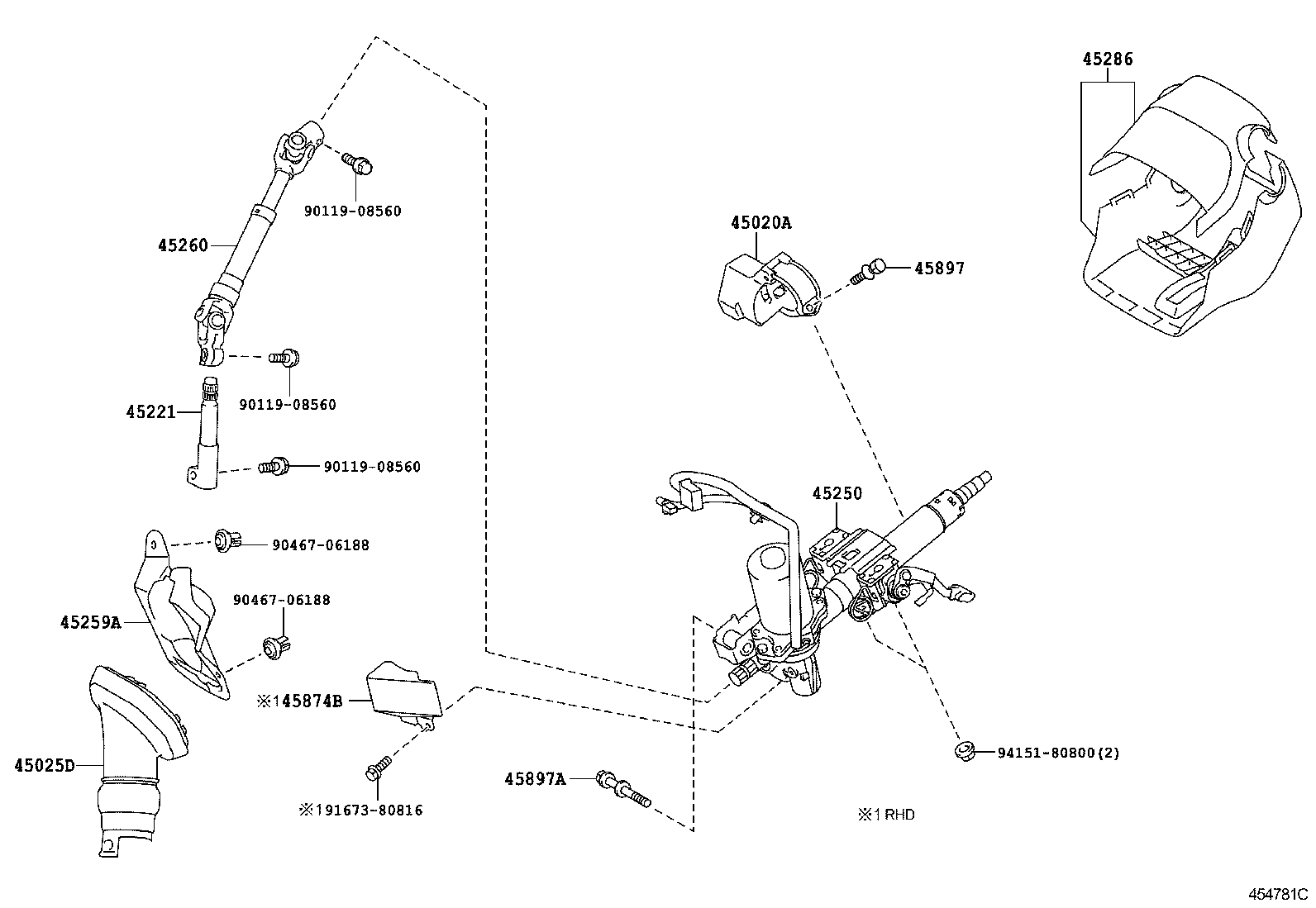

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12300	NDE150,ZRE151,ZZE150..LHD	11/2006 - 12/2008	1
45025-12300	ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM)	12/2008 - 02/2010	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12330	NDE150,ZRE151,ZZE150	11/2006 - 12/2008	1
45221-12330	ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
45250 - COLUMN ASSY, STEERING
45250-12B90	ADE150,NDE150,ZRE151,ZZE150..LHD	11/2006 - 08/2007	1
45250-12B80	ADE150,ZRE151..LHD..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 08/2007	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12070	NDE150,ZRE151,ZZE150..LHD	11/2006 - 12/2008	1
45259-12070	ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM)	12/2008 - 02/2010	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-12580	NDE150,ZRE151,ZZE150	11/2006 - 12/2008	1
45260-12580	ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
45286 - COVER, STEERING COLUMN
45286-12975B0	ZRE151..N STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1#	11/2006 - 12/2008	1
45286-12977E1	NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4#	11/2006 - 12/2008	1
45286-12975E1	ZRE151..N STARTING SYSTEM-PUSH BUTTON,ASH BROWN,TRIM4#	11/2006 - 12/2008	1
45286-12977B0	NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1#	11/2006 - 12/2008	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NDE150,ZRE151,ZZE150	11/2006 - 12/2008	1
45897-12020	ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010	ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
Common parts
90119-08560
90467-06188
91673-80816
94151-80800
Linked diagrams
8401

(0611- )ADE150,ZRE151..N

Click highlighted areas on diagram

STARTING SYSTEM-PUSH BUTTON

Part #	Description	Period	Qty
45020A - ACTUATOR ASSY, STEERING LOCK
45020-42150	ZRE151..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 12/2008	1
45020-42150	ADE150..DCRL;ZRE151..LHD..N..HTWVM STARTING SYSTEM-PUSH BUTTON	12/2008 - 02/2010	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12300	NDE150,ZRE151,ZZE150..LHD	11/2006 - 12/2008	1
45025-12300	ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM)	12/2008 - 02/2010	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12330	NDE150,ZRE151,ZZE150	11/2006 - 12/2008	1
45221-12330	ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
45250 - COLUMN ASSY, STEERING
45250-12B90	ADE150,NDE150,ZRE151,ZZE150..LHD	11/2006 - 08/2007	1
45250-12B80	ADE150,ZRE151..LHD..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 08/2007	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12070	NDE150,ZRE151,ZZE150..LHD	11/2006 - 12/2008	1
45259-12070	ADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM)	12/2008 - 02/2010	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-12580	NDE150,ZRE151,ZZE150	11/2006 - 12/2008	1
45260-12580	ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
45286 - COVER, STEERING COLUMN
45286-12975B0	ZRE151..N STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1#	11/2006 - 12/2008	1
45286-12977E1	NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4#	11/2006 - 12/2008	1
45286-12975E1	ZRE151..N STARTING SYSTEM-PUSH BUTTON,ASH BROWN,TRIM4#	11/2006 - 12/2008	1
45286-12977B0	NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1#	11/2006 - 12/2008	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NDE150,ZRE151,ZZE150	11/2006 - 12/2008	1
45897-12020	ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010	ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM	12/2008 - 02/2010	1
Common parts
90119-08560
90467-06188
91673-80816
94151-80800

ZRE151L-AEFNPW (2008)

(0611- )

(0611- )ADE150,ZRE151..N
