ZRE151L-AEFNPW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Feb 2010
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )NDE150,NRE150,ZRE151..6F

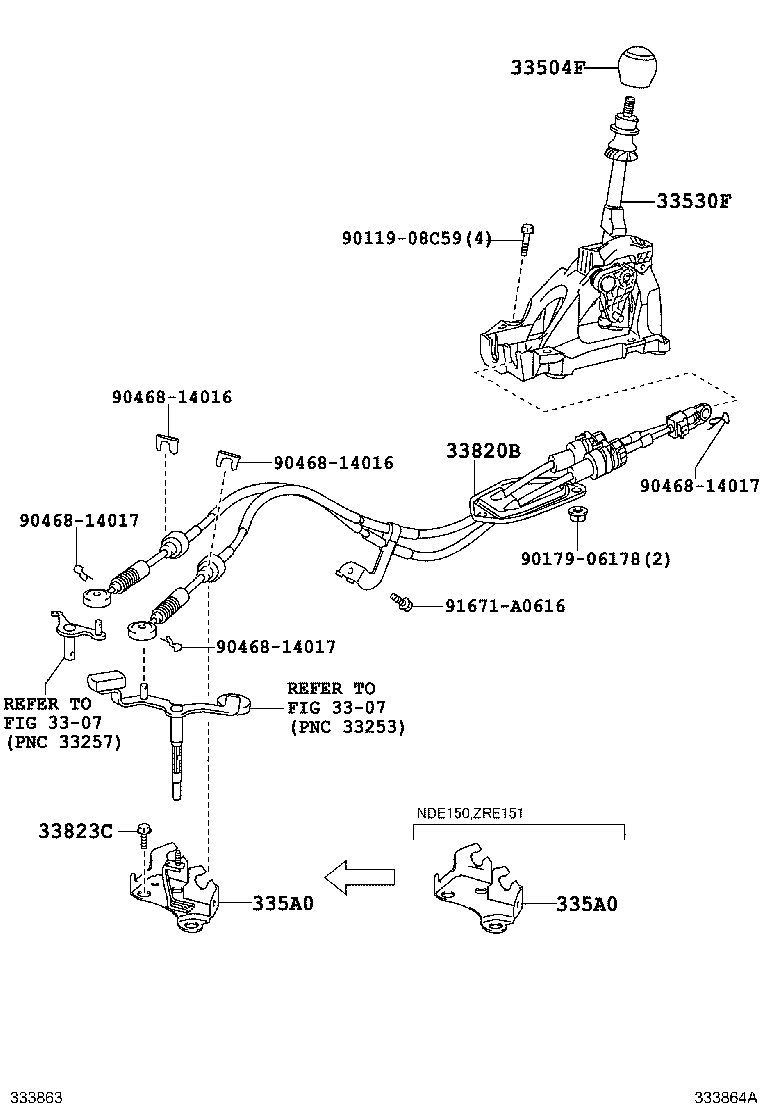

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 335A0 335A0 33820B 33823C 9011908C59 9017906178 9046814016 9046814016 9046814017 9046814017 9046814017 91671A0616
Part # Description Qty Price
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-20010

NDE150..6F..DCRL;ZRE151..6F..D..HTWVM;ZRE151..LHD..6F..N..HTWVM

*201,*206

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-20010

NDE150..6F..DCRL;ZRE151..6F..D..HTWVM;ZRE151..LHD..6F..N..HTWVM

*201,*206

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12E70

NDE150..6F..DCRL;ZRE151..6F..D..HTWVM;ZRE151..LHD..6F..N..HTWVM

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08C60

NDE150..6F..DCRL;ZRE151..6F..D..HTWVM;ZRE151..LHD..6F..N..HTWVM

*201,*206

 3
Common parts
90119-08C59
90179-06178
90468-14016
90468-14017
91671-A0616
Linked diagrams
3307
