ZRE151L-AEFNPW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Feb 2010
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

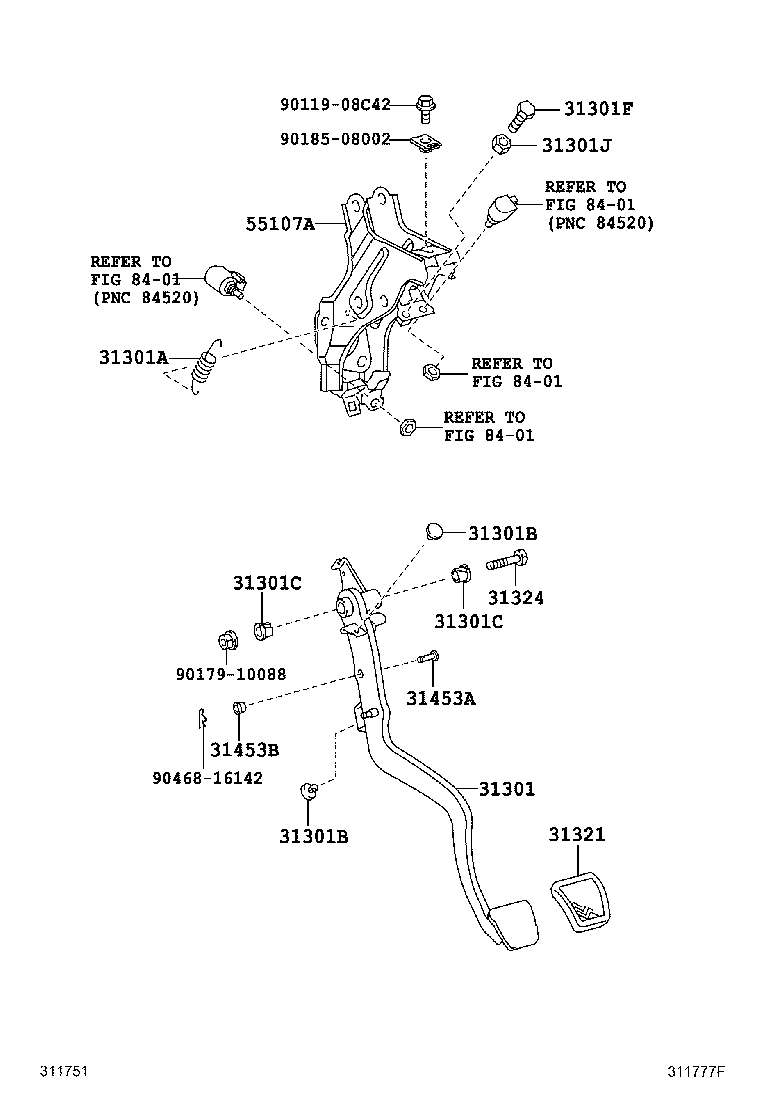

ILLUST NO. 1 OF 2(0611- )NRE150,ZRE151,ZZE150..LHD..5F,6F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31453A 31453B 55107A 8401 8401 8401 8401 9011908C42 9017910088 9018508002 9046816142
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12511

ZRE151..LHD..6F..HTWVM

 1
31301-12510

NRE150,ZRE151..LHD..6F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

ZRE151..6F..D..HTWVM;ZRE151..LHD..6F..N..HTWVM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZRE151..6F..D..HTWVM;ADE150,NDE150..6F..DCRL;ZRE151..LHD..6F..N..HTWVM

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZRE151..6F..D..HTWVM;ADE150,NDE150..6F..DCRL;ZRE151..LHD..6F..N..HTWVM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZRE151..6F..D..HTWVM;ADE150,NDE150..6F..DCRL;ZRE151..LHD..6F..N..HTWVM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZRE151..6F..D..HTWVM;ADE150,NDE150..6F..DCRL;ZRE151..LHD..6F..N..HTWVM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

NDE150..LHD..6F;ADE150,NRE150,ZRE151..LHD..6F..(DCRL,HTWC,HTWVM)

 1
90101-10055

ADE150,NDE150,ZRE151..LHD..6F..(DCRL,HTWVM)

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
46441-12020

ADE150,NDE150,ZRE151..LHD..6F..(DCRL,HTWVM)

 1
94130-61000

NDE150..LHD..6F;ADE150,NRE150,ZRE151..LHD..6F..(DCRL,HTWC,HTWVM)

 1
31321 - PAD, CLUTCH PEDAL
31321-42010

ZRE151..6F..D..HTWVM;ADE150,NDE150..6F..DCRL;ZRE151..LHD..6F..N..HTWVM

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10167

ADE150,NDE150,ZRE151..LHD..6F..(DCRL,HTWVM)

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08256

ADE150,NDE150,ZRE151..LHD..6F..(DCRL,HTWVM)

L=36.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

ADE150,NDE150,ZRE151..LHD..6F..(DCRL,HTWVM)

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12280

NRE150,ZRE151..LHD..6F

 1
55107-12281

ZRE151..LHD..6F..HTWVM

 1
Common parts
90119-08C42
90179-10088
90185-08002
90468-16142
Linked diagrams
8401

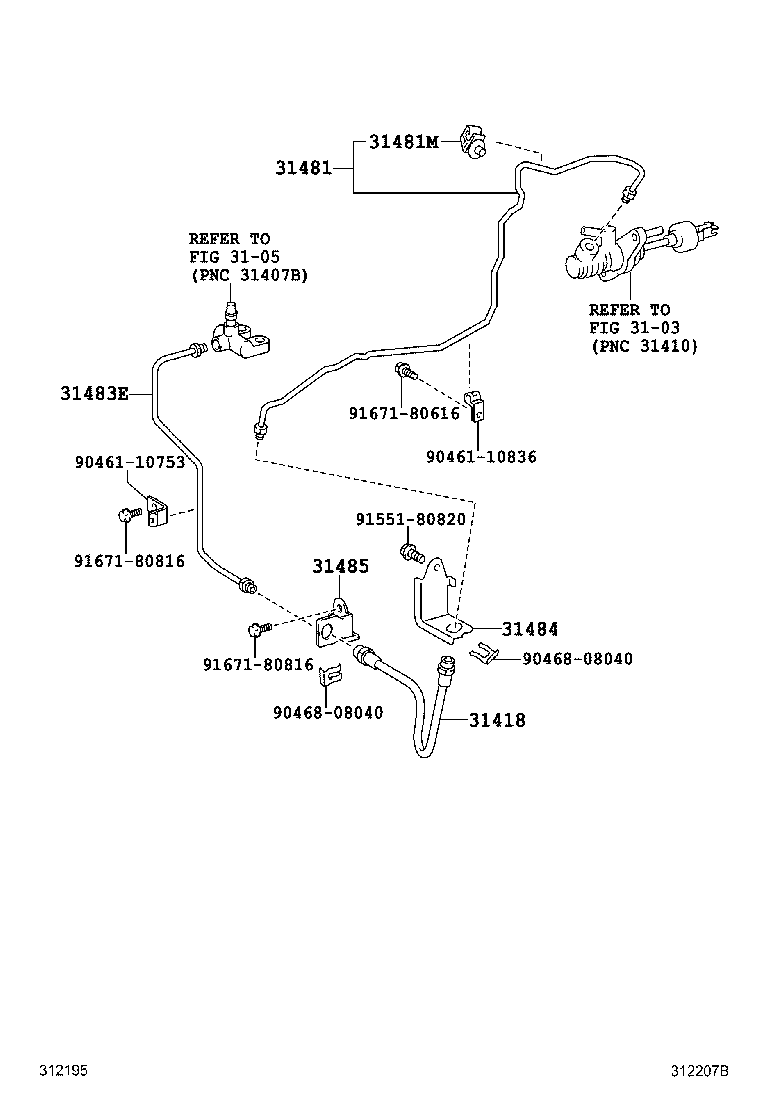

ILLUST NO. 2 OF 2(0812- )ZRE151..LHD..6F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31481M 31483E 31484 31485 9046110753 9046110836 9046808040 9046808040 9155180820 9167180616 9167180816 9167180816
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02E28

NDE150..6F..DCRL;ZRE151..6F..D..HTWVM;ZRE151..LHD..6F..N..HTWVM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12360

ADE150,NDE150,ZRE151..LHD..6F..(DCRL,HTWVM)

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01D46

ADE150,NDE150,ZRE151..LHD..6F..(DCRL,HTWVM)

 1
31483E - TUBE, BLEEDER CLUTCH RELEASE
31483-12140

ZRE151..6F..D..HTWVM;ZRE151..LHD..6F..N..HTWVM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12500

ZRE151..6F..D..HTWVM;ADE150,NDE150..6F..DCRL;ZRE151..LHD..6F..N..HTWVM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12440

ZRE151..6F..D..HTWVM;ZRE151..LHD..6F..N..HTWVM

 1
Common parts
90461-10753
90461-10836
90468-08040
91551-80820
91671-80616
91671-80816
Linked diagrams
3103
3105
