ZRE151L-AEFNPW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Feb 2010
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )1ZR#

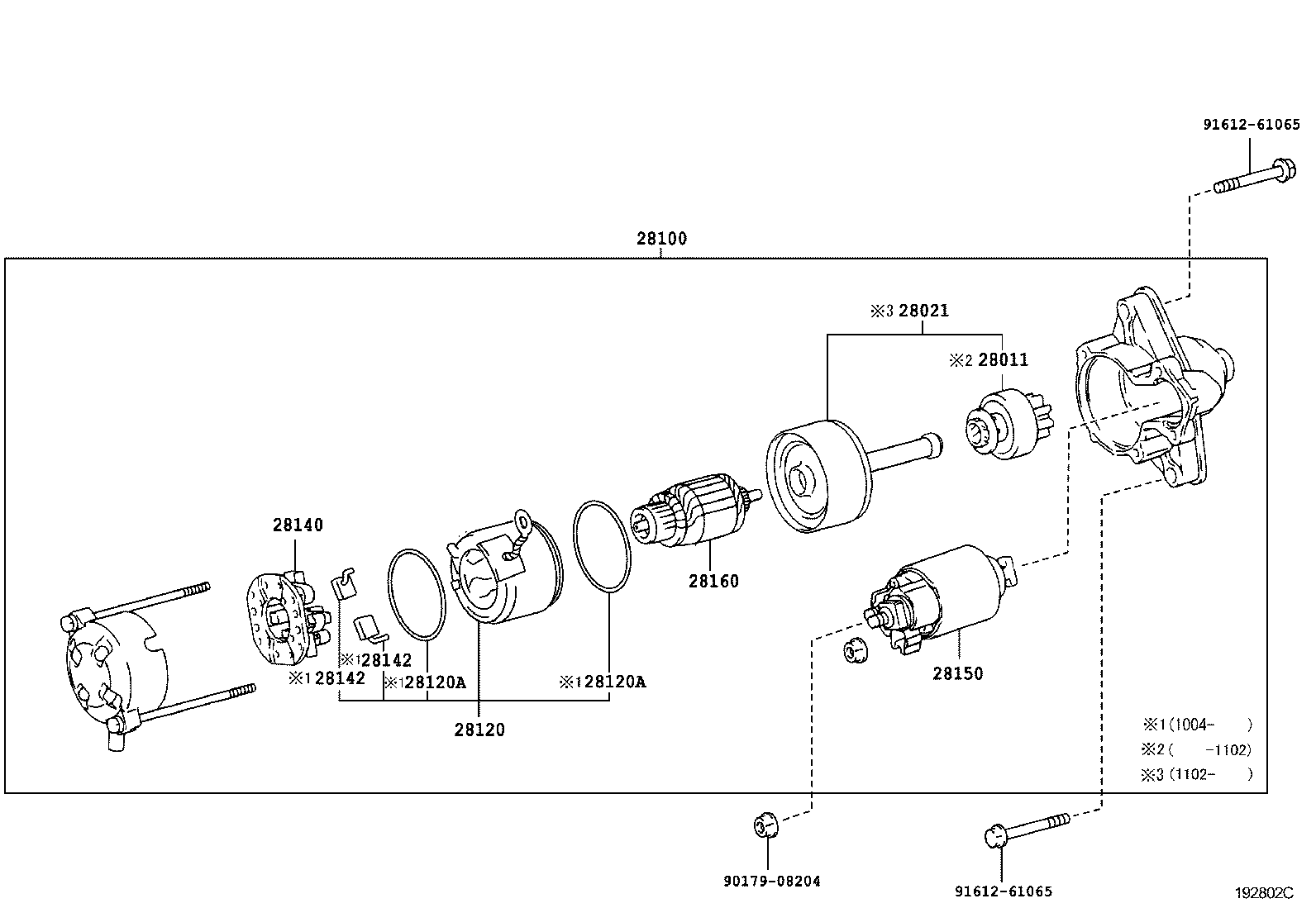

Click highlighted areas on diagram

12V 0.8KW,1.0KW

diagram 28011 28021 28100 28120 28120A 28120A 28140 28142 28142 28150 28160 9017908204 9161261065 9161261065
Part # Description Qty Price
28100 - STARTER ASSY
28100-37020

1ZR#..ZRE151

12V 0.8KW

 1
28100-37030

1ZR#..ZRE151..LHD

12V 1.0KW,COLD AREA SPEC

 1
28100-37030

1ZR#..ZRE151

12V 1.0KW,SUB COLD AREA SPEC

 1
28120 - YOKE ASSY, STARTER
28120-70050

1ZR#..ZRE151

SUB COLD AREA SPEC

 1
28120-70050

1ZR#..ZRE151..LHD

COLD AREA SPEC

 1
28120-47120

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
28120-70020

1ZR#..ZRE151

 1
28120-40130

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

SUB COLD AREA SPEC

 1
28120-40130

1ZRFAE..ZRE151..LHD

COLD AREA SPEC

 1
Common parts
90179-08204
91612-61065
