ZRE151L-AEFNPW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Feb 2010
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )1ZR#

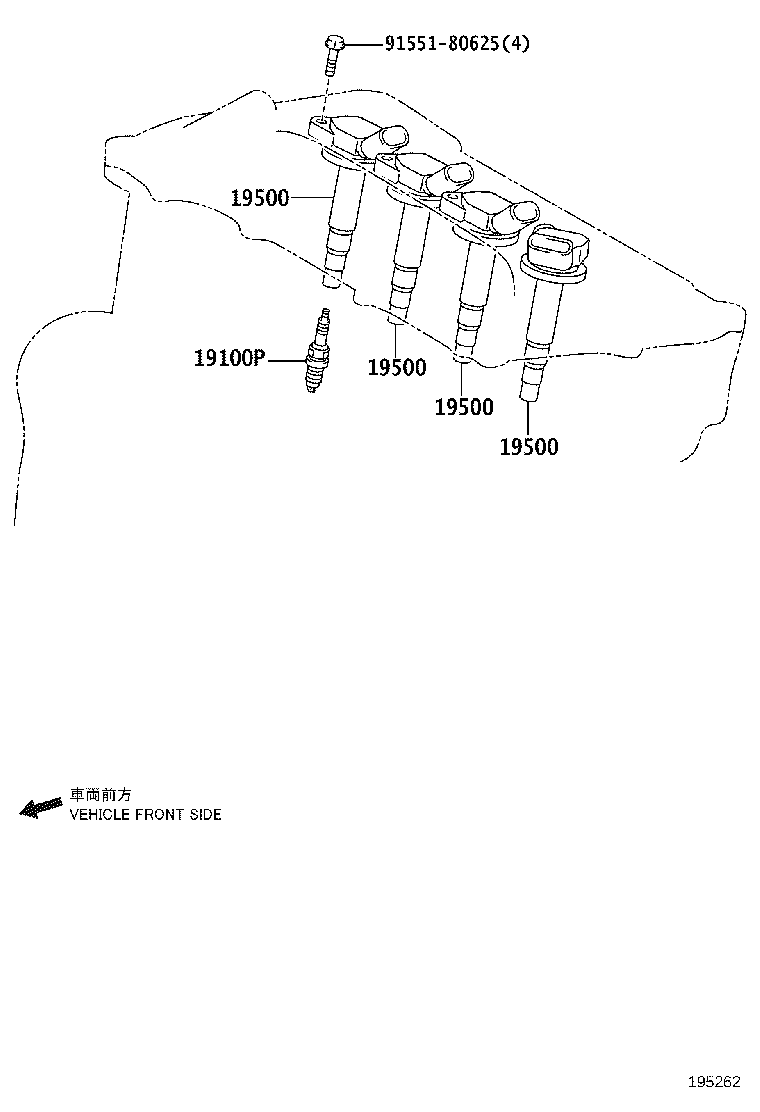

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19500 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01253

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

SC20HR11

 4
19500 - COIL ASSY, IGNITION
90919-02252

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 4
19500 - COIL ASSY, IGNITION
90919-02252

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 4
19500 - COIL ASSY, IGNITION
90919-02252

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 4
19500 - COIL ASSY, IGNITION
90919-02252

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 4
Common parts
91551-80625
