ZRE151L-AEFNPW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Feb 2010
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )1ZR#

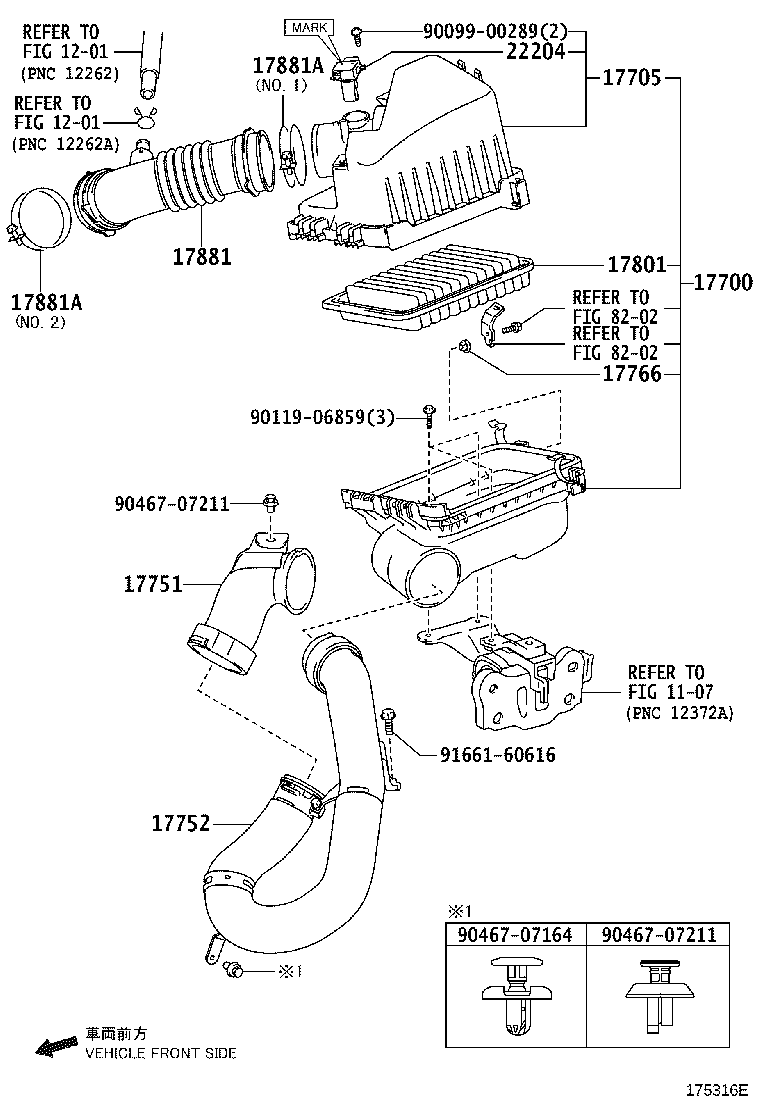

Click highlighted areas on diagram

diagram 17700 17705 17751 17752 17766 17801 17881 17881A 17881A 22204 9009900289 9011906859 9046707164 9046707211 9046707211 9166160616
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-37230

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37110

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
17751 - INLET, AIR CLEANER, NO.1
17751-37020

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
17752 - INLET, AIR CLEANER, NO.2
17752-37030

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
17766 - STAY, AIR CLEANER, NO.2
17706-22010

1ZR#..ZRE151

 1
17706-21010

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-22120

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

NO.2

 1
96111-10750

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

NO.2

 1
96111-10750

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

NO.1

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-37010

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
Common parts
90099-00289
90119-06859
90467-07164
90467-07211
91661-60616
