ZRE151L-AEFNPW (2008)
Toyota Corolla Sed (Jpp)
ILLUST NO. 1 OF 2(0611- )1ZR#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-21150 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52201 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-52501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52201 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-52501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-21090 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-52101 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-52101 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-21030 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-37040 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-17013 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-51901 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-17013 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-51901 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16361 - FAN | ||||
| 16361-22100 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-22120 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-22160 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-22080 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-51010 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21060 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74230 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-22030 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-43901 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-43901 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-22130 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-37040 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1ZR#..ZRE151 NO.1 |
1 | ||
| 90466-35001 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-44301 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1ZR#..ZRE151 NO.1 |
1 | ||
| 90466-35001 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 96136-44301 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-22020 |
1ZR#..ZRE151 |
1 | ||
| 16575-37020 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-37030 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 16581-22120 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.1 |
1 | ||
| 16581-22120 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N NO.2 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-22150 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-22040 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06887 | ||||
| 90480-18010 | ||||
| 91673-80616 | ||||
| 91673-J0818 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8718 | ||||

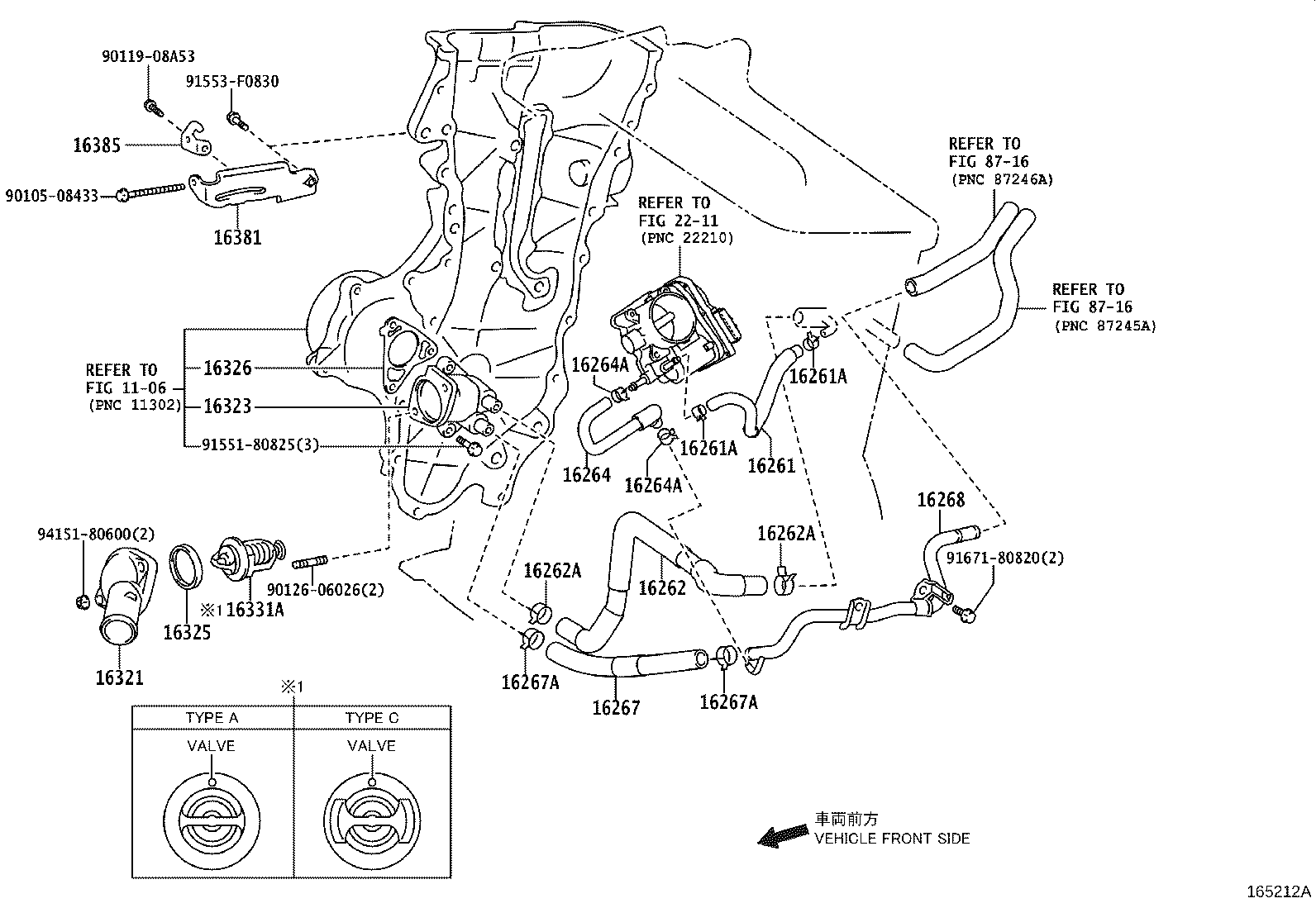

ILLUST NO. 2 OF 2(0611- )1ZR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37010 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37020 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-37010 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-37010 |
1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N |
1 | ||
| Common parts | ||||
| 90105-08433 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 8716 | ||||
