ZRE151L-AEFNPW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Feb 2010
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )1ZR#

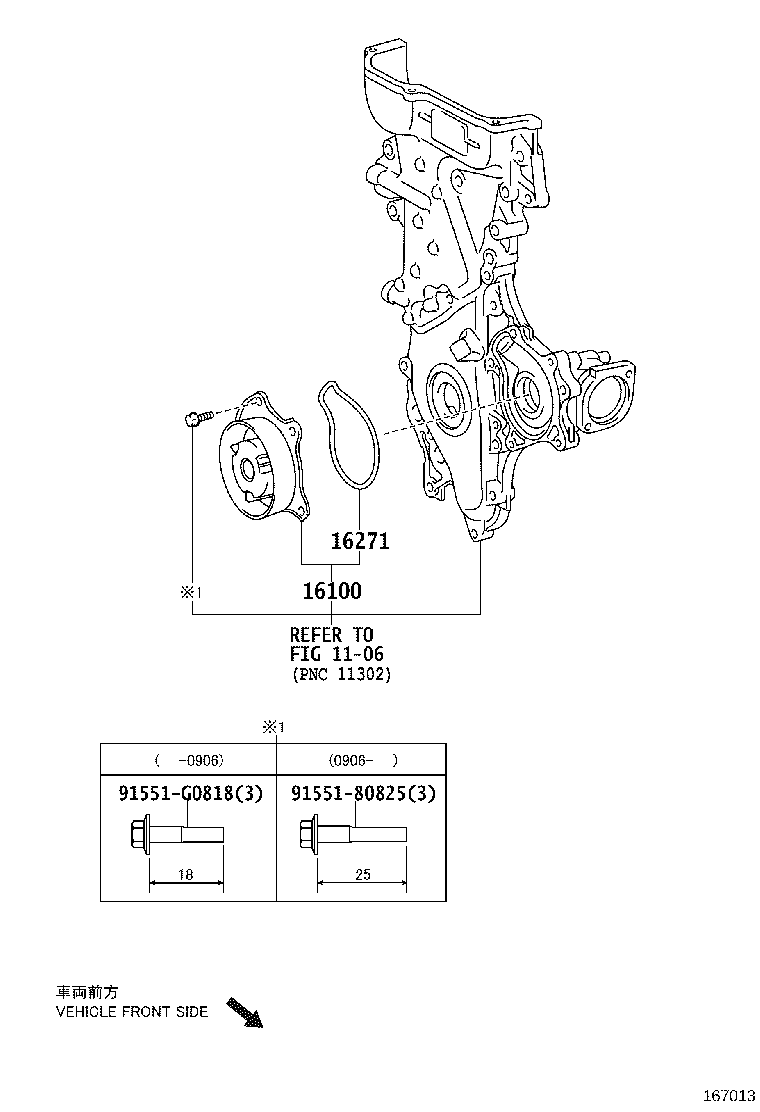

Click highlighted areas on diagram

diagram 1106 16100 16271 9155180825 91551G0818
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39465

1ZR#..ZRE151

 1
16100-39466

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
16271 - GASKET, WATER PUMP
16271-37010

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
Common parts
91551-80825
91551-G0818
Linked diagrams
1106
