ZRE151L-AEFNPW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Feb 2010
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

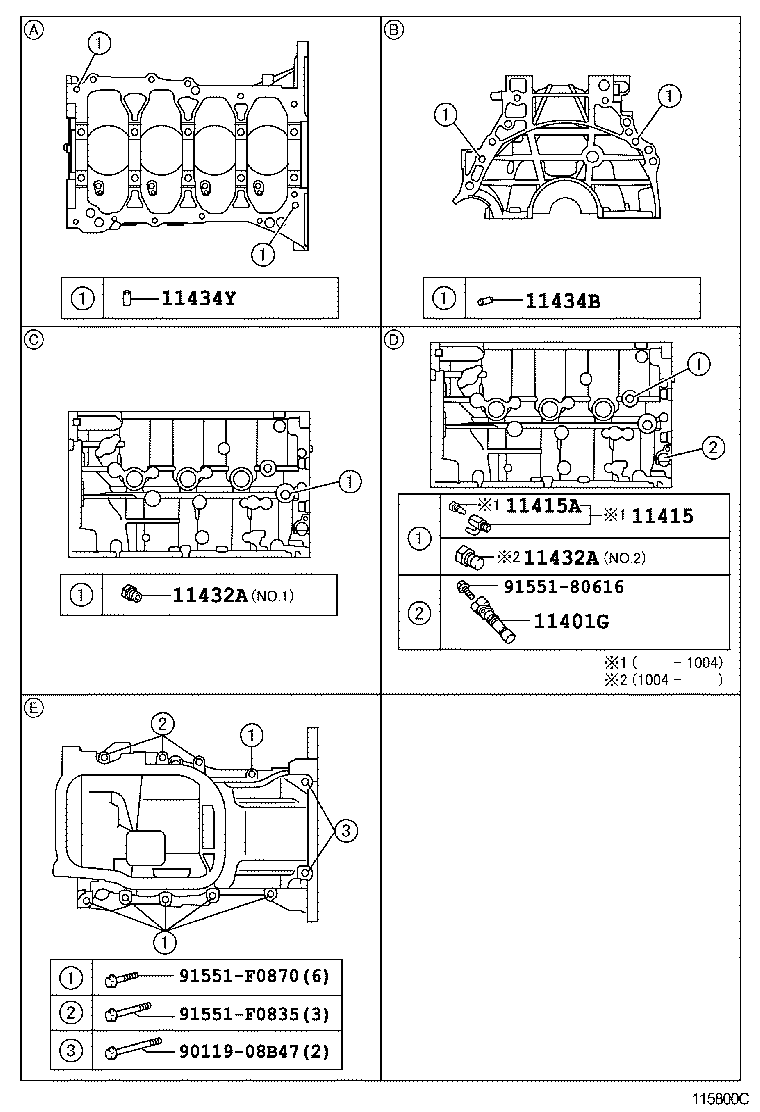

ILLUST NO. 2 OF 2(0611- )1ZR#

Click highlighted areas on diagram

diagram 11401G 11415 11415A 11432A 11432A 11434B 11434Y 9011908B47 9155180616 91551F0835 91551F0870
Part # Description Qty Price
11401G - SENSOR, CRANK POSITION
90919-05070

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

1ZR#..ZRE151

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1ZR#..ZRE151

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53006

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

NO.1

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53006

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

NO.1

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

L=22,OD=10

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-08074

1ZR#..ZRE151

L=15

 2
90250-08120

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

L=18

 2
Common parts
90119-08B47
91551-80616
91551-F0835
91551-F0870

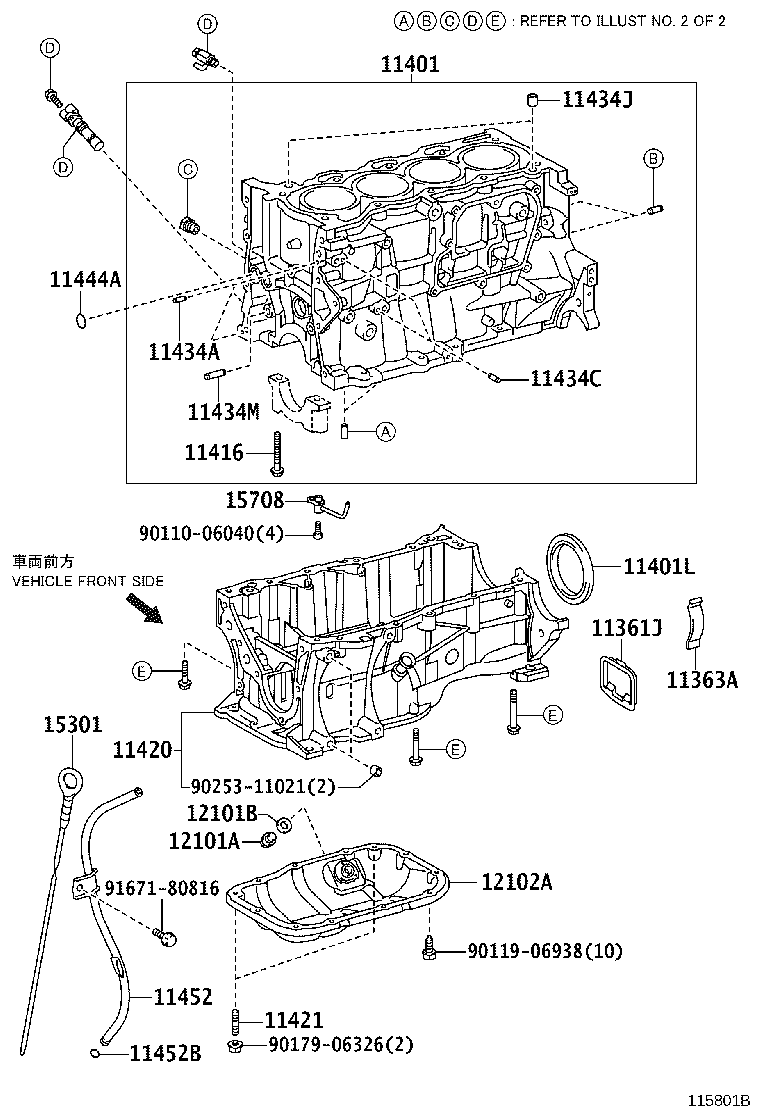

ILLUST NO. 1 OF 2(0611-1204)1ZR#

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401L 11416 11420 11421 11434A 11434C 11434J 11434M 11444A 11452 11452B 12101A 12101B 12102A 15301 15708 9011006040 9011906938 9017906326 9025311021 9167180816
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-21011

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-21010

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-39045

1ZR#..ZRE151

 1
11410-39047

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
11401L - SEAL, ENGINE REAR OIL
90311-76002

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02163

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-37010

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-04097

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

L=12,OD=4.0

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13001

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 2
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-10030

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
11444A - RING, O
96723-24020

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-37010

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-37010

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-37010

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-37011

1ZRFAE..ZRE151..D;1ZRFAE..ZRE151..LHD..N

 4
Common parts
90110-06040
90119-06938
90179-06326
90253-11021
91671-80816
