ZRE151L-AEFNPW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Feb 2010
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )

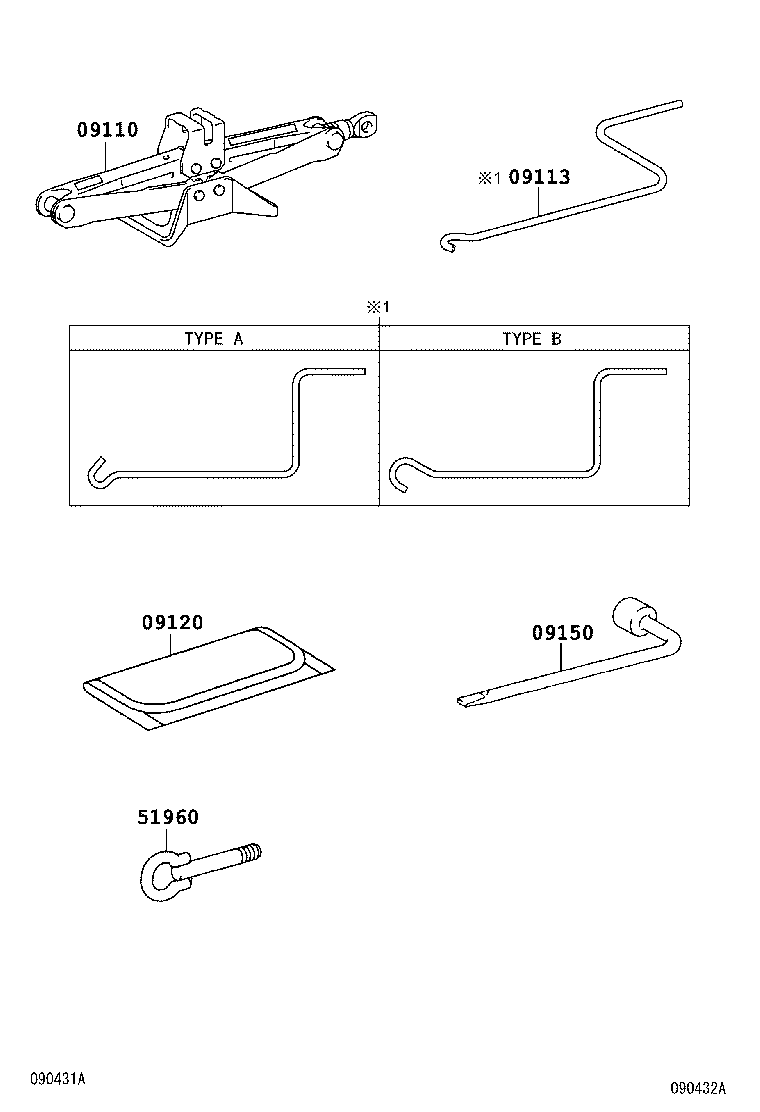

Click highlighted areas on diagram

diagram 09110 09113 09120 09150 51960
Part # Description Qty Price
09110 - JACK ASSY
09111-12160

NDE150,ZRE151,ZZE150

 1
09111-12210

ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM

 1
09113 - HANDLE, JACK
09113-52010

ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM

TYPE B:REFER ILLUST.

 1
09113-52010

NDE150,ZRE151,ZZE150

TYPE B:REFER ILLUST.

 1
09113-20040

NDE150,ZRE151,ZZE150

TYPE A:REFER ILLUST.

 1
09113-20040

ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM

TYPE A:REFER ILLUST.

 1
09120 - BAG, TOOL
09120-10040

NDE150,ZRE151,ZZE150

SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

 1
09120-10040

NDE150,ZRE151,ZZE150

SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES

 1
09120-10040

NDE150,NRE150;ZRE151..HTWVM

SPARE TIRE-195/65R15 6J STEEL WHEEL

 1
09120-10040

ADE150,NRE150..DCRL,HTWC;NDE150,ZRE151..DCR,DCRL,HTWVM

SPARE TIRE-205/55R16 6.5J STEEL WHEEL

 1
09120-10040

NDE150,ZRE151,ZZE150

SPARE TIRE-195/65R15 6J STEEL WHEEL

 1
09120-10040

NDE150,ZRE151,ZZE150

SPARE TIRE-205/55R16 6.5J STEEL WHEEL

 1
09120-10040

NDE150,NRE150;ZRE151..HTWVM

SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

 1
09120-10040

ADE150,NRE150..DCRL,HTWC;NDE150,ZRE151..DCR,DCRL,HTWVM

SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES

 1
09150 - WRENCH, HUB NUT BOX
09150-35070

NDE150,ZRE151,ZZE150

 1
51960 - HOOK ASSY, FRONT
51960-28020

ZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM

 2
51960-28020

NDE150,ZRE151,ZZE150

 2
