NRE150R-AEFDKW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )RHD

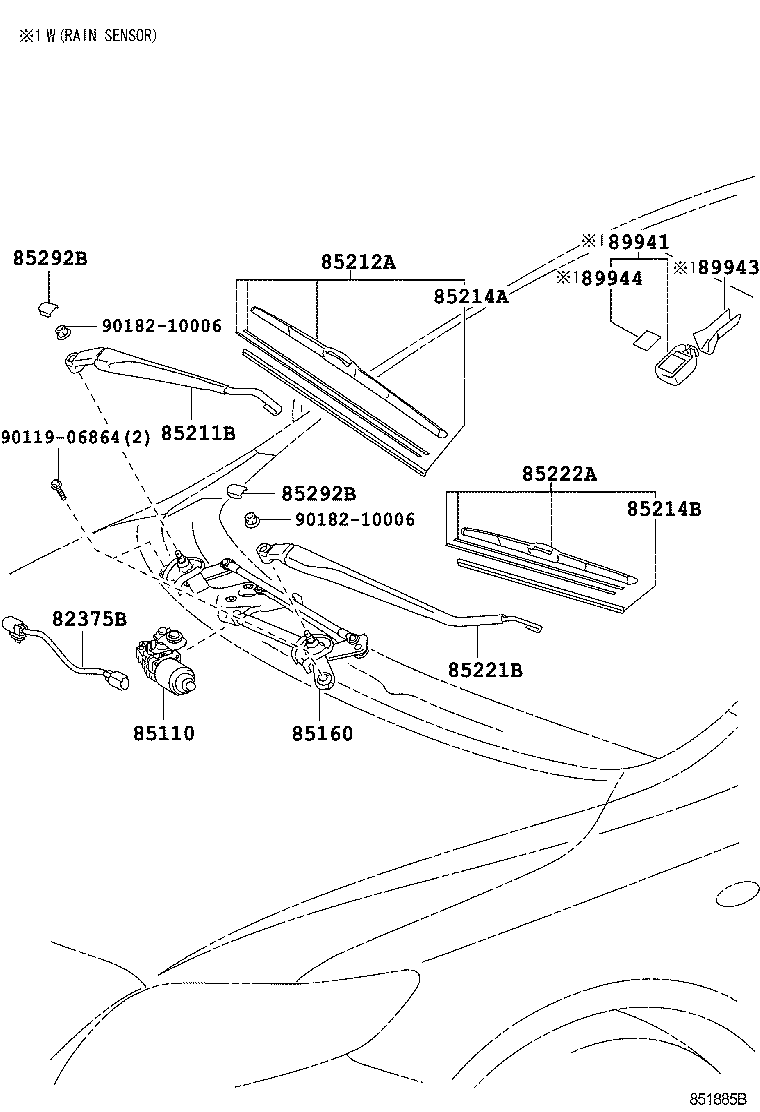

Click highlighted areas on diagram

diagram 82375B 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 9011906864 9018210006 9018210006
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-12310

NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM

 1
82375-12311

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12A30

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-12A40

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
85211B - ARM, FRONT WIPER, RH
85211-12530

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
85212A - BLADE, FR WIPER, RH
85212-12480

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
85214A - RUBBER, WIPER, RH
85214-68020

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
85214B - RUBBER, WIPER, LH
85214-68030

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
85221B - ARM, FRONT WIPER, LH
85221-12470

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
85222A - BLADE, FR WIPER, LH
85222-12860

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 2
89941 - SENSOR, RAIN
89941-42010

ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC)

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
89943 - COVER, RAIN SENSOR
89943-42010

ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC)

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
89944 - TAPE, RAIN SENSOR
89944-42010

ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC)

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
Common parts
90119-06864
90182-10006
