NRE150R-AEFDKW (2008)
Toyota Corolla Sed (Jpp)
ILLUST NO. 1 OF 9(0611- )NRE150,ZRE151,ZZE150..RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1EF10 |
NRE150..RHD STOP & START SYSTEM PACKAGE |
1 | ||
| 82111-1ED20 |
NRE150..RHD |
1 | ||
| 82111-1EF10 |
NRE150..RHD PART NUMBER LABEL=82111-1EF10 |
1 | ||
| 82111-1ED20 |
NRE150..RHD PART NUMBER LABEL=82111-1ED20 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12150 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12160 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12B10 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12B20 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 9(0611- )RHD

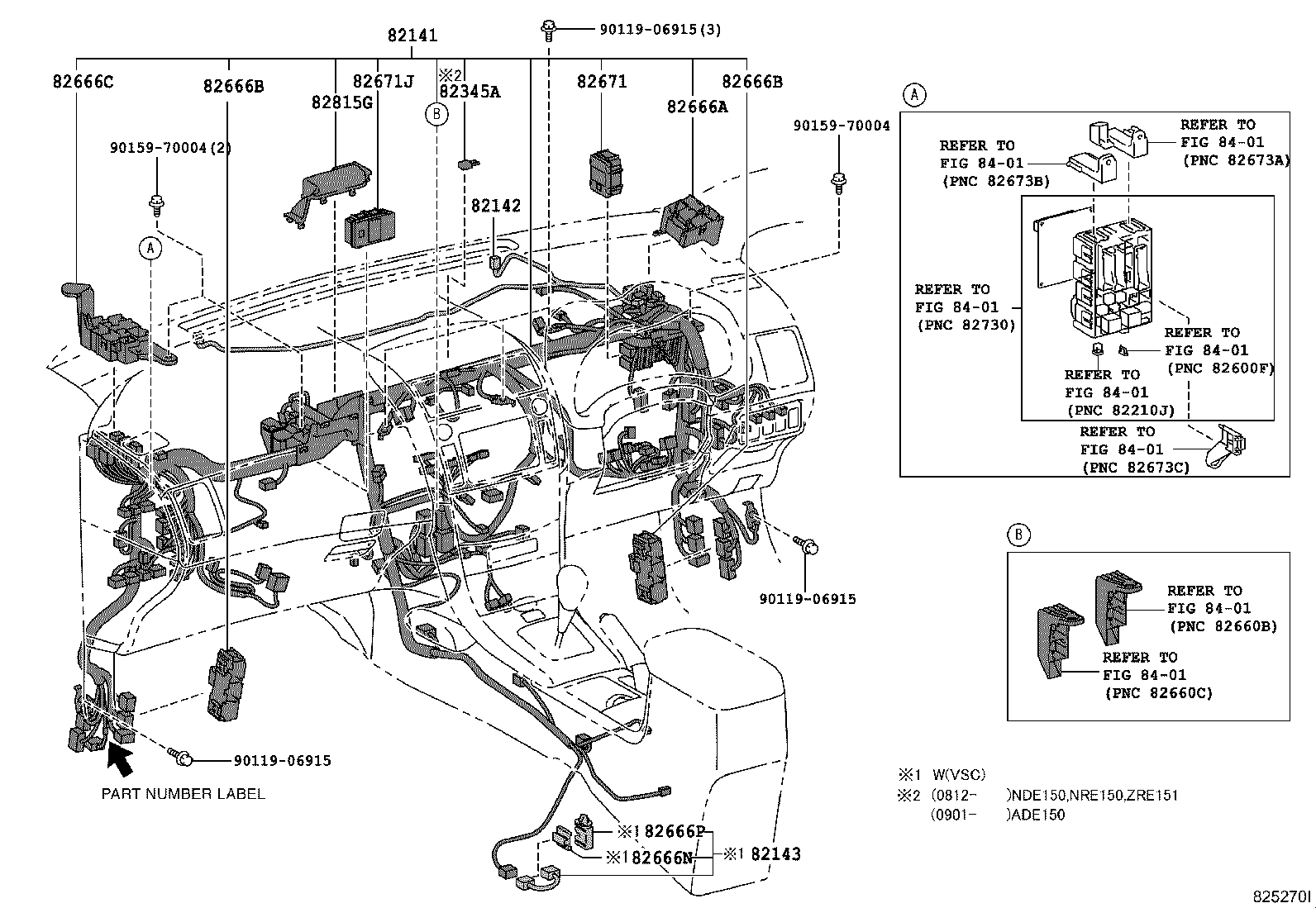

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1KT10 |
NRE150..RHD..N STOP & START SYSTEM PACKAGE&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82141-1KT30 |
NRE150..RHD..N STOP & START SYSTEM PACKAGE&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82141-1KS60 |
NRE150,ZRE151..RHD..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82141-1KT20 |
NRE150..RHD..N STOP & START SYSTEM PACKAGE&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82141-1KT00 |
NRE150..RHD STOP & START SYSTEM PACKAGE |
1 | ||
| 82141-1KS70 |
NRE150,ZRE151..RHD..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82141-1KS30 |
NRE150..RHD;ZRE151..RHD..N |
1 | ||
| 82141-1KS40 |
NRE150,ZRE151..RHD..N AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82141-1KT20 |
NRE150..RHD..N PART NUMBER LABEL=82141-1KP60 OR -1KT20 |
1 | ||
| 82141-1KT00 |
NRE150..RHD PART NUMBER LABEL=82141-1KP40 OR -1KT00 |
1 | ||
| 82141-1KT10 |
NRE150..RHD..N PART NUMBER LABEL=82141-1KP50 OR -1KT10 |
1 | ||
| 82141-1KT30 |
NRE150..RHD..N PART NUMBER LABEL=82141-1KP70 OR -1KT30 |
1 | ||
| 82141-1KS30 |
NRE150..RHD;ZRE151..RHD..N PART NUMBER LABEL=82141-1KN70 OR -1KS30 |
1 | ||
| 82141-1KS60 |
NRE150,ZRE151..RHD..N PART NUMBER LABEL=82141-1KP00 OR -1KS60 |
1 | ||
| 82141-1KS40 |
NRE150,ZRE151..RHD..N PART NUMBER LABEL=82141-1KN80 OR -1KS40 |
1 | ||
| 82141-1KS70 |
NRE150,ZRE151..RHD..N PART NUMBER LABEL=82141-1KP10 OR -1KS70 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12400 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC) INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82142-12380 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC) INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 82345-12050 |
NRE150..N STOP & START SYSTEM PACKAGE&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82345-12050 |
NRE150..N STOP & START SYSTEM PACKAGE&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82345-12050 |
NRE150..N STOP & START SYSTEM PACKAGE&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12350 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12430 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12270 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-12280 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12310 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 9(0611- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23292-26030 | ||||
| 82715-02290 | ||||
| 82715-02300 | ||||
| 82715-02390 | ||||
| 82715-02400 | ||||
| 82715-12420 | ||||
| 82715-12870 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A10 | ||||
| 82715-12A20 | ||||
| 82715-12A30 | ||||
| 82715-12A40 | ||||
| 82715-12A90 | ||||
| 82715-12B00 | ||||
| 82715-12B70 | ||||
| 82715-12B80 | ||||
| 82715-12C00 | ||||
| 82715-12C10 | ||||
| 82715-12C30 | ||||
| 82715-12C60 | ||||
| 82715-12C70 | ||||
| 82715-12C80 | ||||
| 82715-12F20 | ||||
| 82715-12F30 | ||||
| 82715-20A10 | ||||
| 82715-20A20 | ||||
| 82715-20A30 | ||||
| 82715-20A40 | ||||
| 82715-20A70 | ||||
| 82715-20A80 | ||||
| 82715-32390 | ||||
| 82715-42560 | ||||
| 82715-42740 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 91551-80608 | ||||
| 91551-80816 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
ILLUST NO. 6 OF 9(0611- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 53614-12040 | ||||
| 82711-16790 | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-12840 | ||||
| 82715-12A50 | ||||
| 82715-12E20 | ||||
| 82715-12F40 | ||||
| 82715-12G10 | ||||
| 82715-12L40 | ||||
| 82715-12L90 | ||||
| 82715-12N20 | ||||
| 82715-12N30 | ||||
| 82715-12N40 | ||||
| 91671-80816 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 7 OF 9(0611- )NRE150,ZRE151,ZZE150
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07431 |
ZRE151..RHD..N;NRE150,ZRE151..HTWC |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07431 |
ZRE151..RHD..N;NRE150,ZRE151..HTWC |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-06915 | ||||
| 90119-10550 | ||||
| 91673-80820 | ||||
ILLUST NO. 8 OF 9(0611- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10860 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
ILLUST NO. 9 OF 9(0611- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12212 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
ILLUST NO. 6 OF 9(0611- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12N00 | ||||
| 82715-12N40 | ||||
| 82715-12N70 | ||||
| 82715-12N80 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P10 | ||||
| 82715-12P20 | ||||
| 82715-12P30 | ||||
| 82715-12P50 | ||||
| 82715-12P60 | ||||
| 82715-12P70 | ||||
| 82715-12P80 | ||||
| 82715-12P90 | ||||
| 82715-12Q30 | ||||
| 82715-12Q41 | ||||
| 82715-12Q60 | ||||
| 82715-12Q70 | ||||
| 82715-12R10 | ||||
| 82715-28L90 | ||||
| 82715-52S30 | ||||
| 82715-52U00 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
ILLUST NO. 4 OF 9(0611- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12P50 |
NDE150,NRE150..RHD..D..(DCR,HTWC) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82151-12P60 |
NRE150,ZRE151..RHD..N |
1 | ||
| 82151-12P60 |
NDE150,NRE150..RHD..D..(DCR,HTWC) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER |
1 | ||
| 82151-12P30 |
NDE150,NRE150..RHD..D..(DCR,HTWC) |
1 | ||
| 82151-12P40 |
NDE150,NRE150..RHD..D..(DCR,HTWC) AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12P60 |
NDE150,NRE150..RHD..D..(DCR,HTWC) AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER |
1 | ||
| 82152-12P50 |
NDE150,NRE150..RHD..D..(DCR,HTWC) |
1 | ||
| 82152-12P60 |
NRE150,ZRE151..RHD..N |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12590 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC) |
1 | ||
| 82153-12580 |
NDE150,NRE150,ZRE151..D..(DCR,HTWC) |
1 | ||
| 82153-12590 |
NDE150,NRE150,ZRE151..D..(DCR,HTWC) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12540 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC) |
1 | ||
| 82154-12530 |
NDE150,NRE150,ZRE151..D..(DCR,HTWC) |
1 | ||
| 82154-12540 |
NDE150,NRE150,ZRE151..D..(DCR,HTWC) POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
ILLUST NO. 2 OF 9(0812- )NRE150

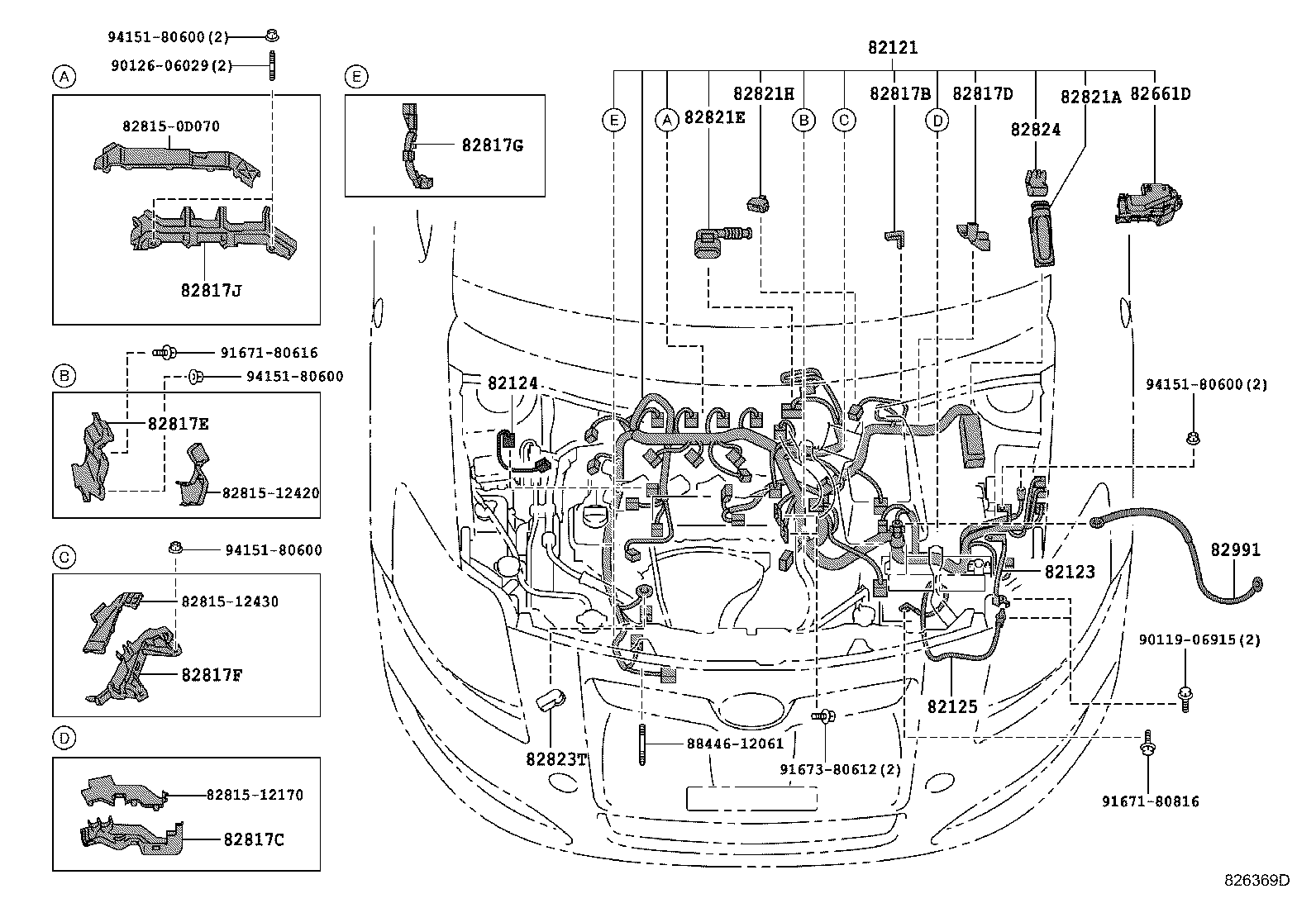

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12K10 |
NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 82121-12K31 |
NRE150 |
1 | ||
| 82121-12K11 |
NRE150..D STOP & START SYSTEM PACKAGE&AIR CONDITIONER-MANUAL |
1 | ||
| 82121-12K30 |
NRE150 |
1 | ||
| 82121-12K10 |
NRE150..D STOP & START SYSTEM PACKAGE&AIR CONDITIONER-MANUAL |
1 | ||
| 82121-12K11 |
NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12420 |
NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 82123-12460 |
NRE150,ZRE151..HTWC |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12150 |
NRE150 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-12590 |
ZRE151..RHD..N;NRE150,ZRE151..6F..HTWC |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12860 |
ZRE151..RHD..N;NRE150,ZRE151..HTWC |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12B90 |
ZRE151..RHD..N;NRE150,ZRE151..HTWC |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12J10 |
ZRE151..RHD..N;NRE150,ZRE151..HTWC |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-12J60 |
NRE150 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12J70 |
NRE150 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12J90 |
NRE150 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-0D140 |
NRE150 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-12660 |
NRE150 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12650 |
NRE150 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12110 |
ZRE151..RHD..N;NRE150,ZRE151..HTWC |
1 | ||
| Common parts | ||||
| 82815-0D070 | ||||
| 82815-12170 | ||||
| 82815-12420 | ||||
| 82815-12430 | ||||
| 88446-12061 | ||||
| 90119-06915 | ||||
| 90126-06029 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 9(0611- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-12N90 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD |
1 | ||
| 82161-12P00 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 82161-12P00 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD PART NUMBER LABEL=82161-12P00 |
1 | ||
| 82161-12N90 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD PART NUMBER LABEL=82161-12N90 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12K70 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 82162-12K60 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 82162-12K70 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) PART NUMBER LABEL=82162-12K70 |
1 | ||
| 82162-12K60 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) PART NUMBER LABEL=82162-12K60 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12F40 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) AUDIO (OVERSEAS MARKET)-WITH(NAVIGATION SYSTEM) & 6SPEAKER |
1 | ||
| 82171-12F30 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD |
1 | ||
| 82171-12F50 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-12F60 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUDIO (OVERSEAS MARKET)-WITH(NAVIGATION SYSTEM) & 6SPEAKER |
1 | ||
| 82171-12F40 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82171-12F40 |
1 | ||
| 82171-12F30 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD PART NUMBER LABEL=82171-12F30 |
1 | ||
| 82171-12F60 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82171-12F60 |
1 | ||
| 82171-12F50 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82171-12F50 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12210 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12400 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-12370 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20280 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
