Toyota Corolla sed (jpp) NRE150 FRONT DOOR PANEL & GLASS

NRE150R-AEFDKW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

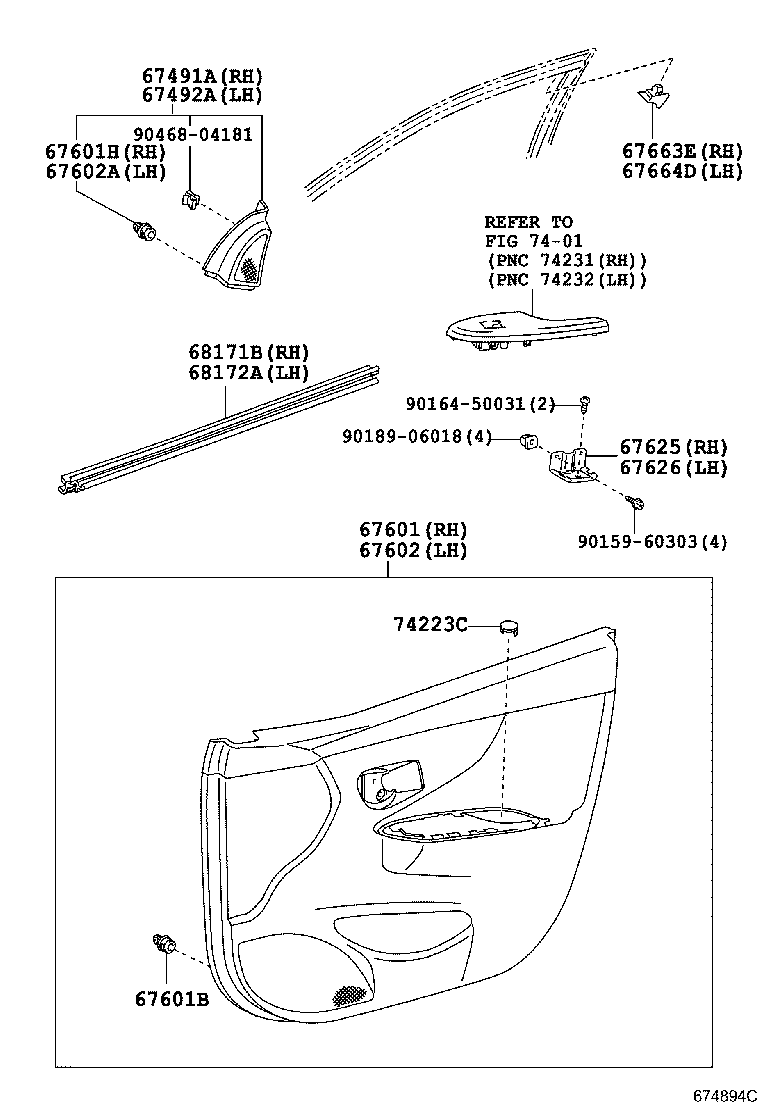

ILLUST NO. 2 OF 2(0611- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12510	ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC)	12/2008 - 12/2999	1
67491-12510	NDE150,NRE150,ZRE151..D..(DCR,HTWC) AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER	12/2008 - 12/2999	1
67491-12500	NDE150,NRE150,ZRE151..D..(DCR,HTWC)	12/2008 - 12/2999	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12510	ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC)	12/2008 - 12/2999	1
67492-12510	NDE150,NRE150,ZRE151..D..(DCR,HTWC) AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER	12/2008 - 12/2999	1
67492-12500	NDE150,NRE150,ZRE151..D..(DCR,HTWC)	12/2008 - 12/2999	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-12F90E1	NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4#	12/2008 - 04/2010	1
67610-12F90B1	NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1#	12/2008 - 04/2010	1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206	NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM	12/2008 - 04/2010	20
67601H - RETAINER, DOOR TRIM, RH
67771-12060	ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC	12/2008 - 12/2999	1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-12F30E1	NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4#	12/2008 - 04/2010	1
67620-12F30B1	NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1#	12/2008 - 04/2010	1
67602A - RETAINER, DOOR TRIM, LH
67771-12060	ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC	12/2008 - 12/2999	1
67625 - BRACKET, FRONT DOOR TRIM, RH
67625-12210	ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC	12/2008 - 12/2999	1
67626 - BRACKET, FRONT DOOR TRIM, LH
67625-12210	ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC	12/2008 - 12/2999	1
67663E - GARNISH, DOOR FRAME, RH
67663-48010	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67664D - GARNISH, DOOR FRAME, LH
67664-48010	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-12340	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-12260	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
74223C - CAP, DOOR ARMREST
74223-12130B0	NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1#	12/2008 - 04/2010	2
74223-12130E0	NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4#	12/2008 - 04/2010	2
Common parts
90159-60303
90164-50031
90189-06018
90468-04181
Linked diagrams
7401

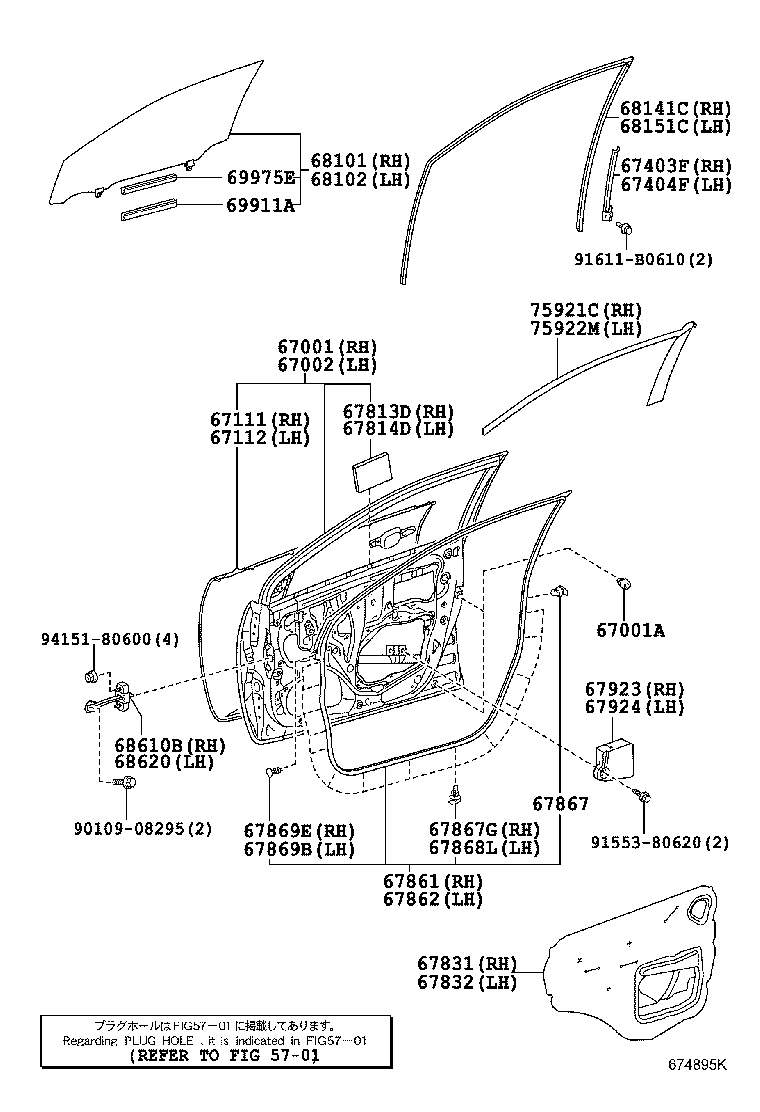

ILLUST NO. 1 OF 2(0611- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-12A30	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	01/2009 - 12/2999	1
67001-12A31	NDE150,NRE150,ZRE151	12/2008 - 01/2009	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09143	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-12A31	NDE150,NRE150,ZRE151	12/2008 - 01/2009	1
67002-12A30	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	01/2009 - 12/2999	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12700	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12690	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12260	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12250	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67813D - SHEET, QUARTER PANEL SILENCER, RH
67817-47010	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	2
67814D - SHEET, QUARTER PANEL SILENCER, LH
67817-47010	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-12670	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-12450	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12A20	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12A20	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67867 - CLIP, DOOR WEATHERSTRIP
90467-04034	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	2
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-12150	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	14
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-12150	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	14
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-12040	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67924-12040	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-12A80	NDE150,NRE150,ZRE151 *UVCT,T=3.5,GREEN	12/2008 - 01/2009	1
68101-12A81	ADE150,NDE150,NRE150,ZRE151 *UVCT,T=3.5,GREEN	02/2009 - 04/2010	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-12A81	ADE150,NDE150,NRE150,ZRE151 *UVCT,T=3.5,GREEN	02/2009 - 04/2010	1
68102-12A80	NDE150,NRE150,ZRE151 *UVCT,T=3.5,GREEN	12/2008 - 01/2009	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-12560	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
68151C - RUN, FRONT DOOR GLASS, LH
68151-12260	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	12/2008 - 12/2999	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-12200	ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC	12/2008 - 04/2010	1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-12200	ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC	12/2008 - 04/2010	1
69911A - CHANNEL, FRONT DOOR GLASS, NO.1
69911-13010	NDE150,NRE150,ZRE151	12/2008 - 01/2009	2
69955-47010	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	02/2009 - 12/2999	2
69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1
69975-16020	NDE150,NRE150,ZRE151	12/2008 - 01/2009	2
69975-47010	ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)	02/2009 - 12/2999	2
75921C - TAPE, BLACK OUT, NO.1 RH
75921-12080	NRE150,ZRE151..RHD..N	12/2008 - 12/2999	1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-12080	NRE150,ZRE151..RHD..N	12/2008 - 12/2999	1
Common parts
90109-08295
91553-80620
91611-B0610
94151-80600
Linked diagrams
5701
