NRE150R-AEFDKW (2008)
Toyota Corolla Sed (Jpp)
ILLUST NO. 1 OF 2(0611- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-12131B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55302-12131E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) ASH BROWN,TRIM4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-12360B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55303-12360E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12370 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12330 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-12100B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55317-12100E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-12090E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55318-12090B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-12720 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-12070 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-12110 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-12150 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-12090 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-12080 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-12080 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12230B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 55961-12230E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) ASH BROWN,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-12200B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 55962-12200E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) ASH BROWN,TRIM4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-12170 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-42010 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 69065-74010 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12140 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-1A200 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90183-05094 | ||||
| 90183-06025 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||

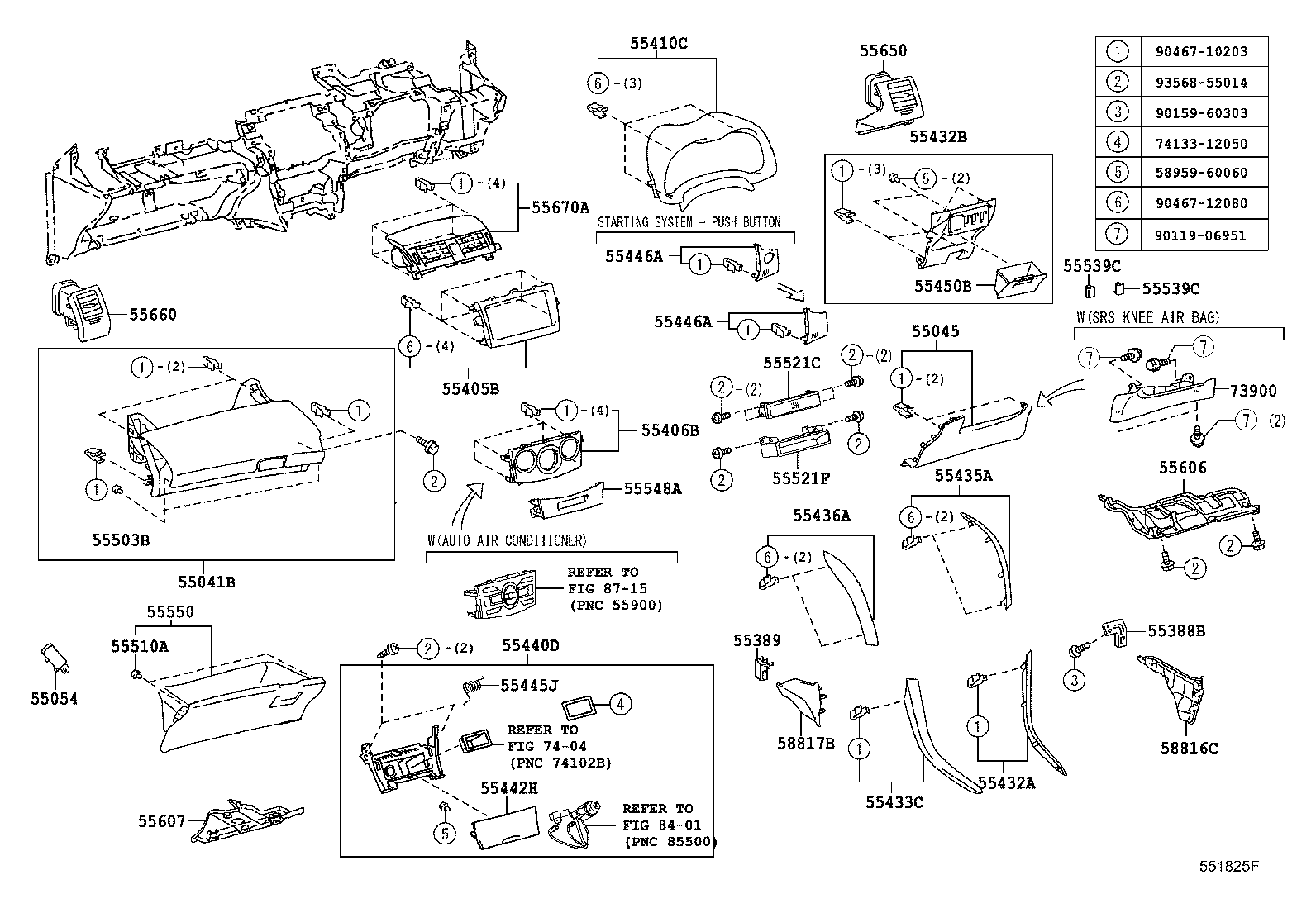

ILLUST NO. 2 OF 2(0611- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-12060E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55041-12060B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-12370E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55045-12370B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12030 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55389-42020 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55388-42020 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12A71 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 55405-12A71 |
NDE150,NRE150,ZRE151..D AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 4SPEAKER |
1 | ||
| 55405-12A71 |
NDE150,NRE150,ZRE151..D AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-12440 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 55406-12480 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 55406-12440 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12A30E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) ASH BROWN,TRIM4# |
1 | ||
| 55410-12A30B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-12480 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-12020E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55480-12020B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-12220 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-12120 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-12090 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-12110 |
NRE150,ZRE151..RHD..N |
1 | ||
| 55440-12150 |
NDE150,NRE150..RHD..D..(DCR,HTWC) |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-12100 |
NRE150,ZRE151..RHD..N |
1 | ||
| 55442-12160 |
NDE150,NRE150..RHD..D..(DCR,HTWC) |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-12100 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12150E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55446-12150B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12150E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55446-12150B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-12020E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55450-12020B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 55557-53030 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-12190 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 55521-12190 |
NDE150,NRE150,ZRE151..D AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER |
1 | ||
| 55521-12190 |
NDE150,NRE150,ZRE151..D AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 4SPEAKER |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-52020 |
NDE150,NRE150,ZRE151..D AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER |
1 | ||
| 55521-52020 |
NDE150,NRE150,ZRE151..D AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 4SPEAKER |
1 | ||
| 55521-52020 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55539-52060B0 |
NRE150 STOP & START SYSTEM PACKAGE,DK.GRAY |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55539-52060B0 |
NRE150 STOP & START SYSTEM PACKAGE,DK.GRAY |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12160 |
NRE150..D STOP & START SYSTEM PACKAGE |
1 | ||
| 55548-12100 |
NRE150..N STOP & START SYSTEM PACKAGE |
1 | ||
| 55548-12170 |
NDE150,NRE150,ZRE151..D..(DCR,HTWC) |
1 | ||
| 55548-12110 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC) |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12470B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 55550-12470E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-12090 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-12060 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12340E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55650-12380B0 |
ADE150,NRE150,ZRE151..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 55650-12350B0 |
NDE150,NRE150,ZRE151..RHD..D DK.GRAY,TRIM1# |
1 | ||
| 55650-12340B0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 55650-12390B0 |
NDE150,NRE150,ZRE151..RHD..D DK.GRAY,TRIM1# |
1 | ||
| 55650-12380E0 |
ADE150,NRE150,ZRE151..RHD..N GREGE,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12390B0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 55660-12400B0 |
NDE150,NRE150,ZRE151..RHD..D DK.GRAY,TRIM1# |
1 | ||
| 55660-12410E0 |
ADE150,NRE150,ZRE151..RHD..N GREGE,TRIM4# |
1 | ||
| 55660-12410B0 |
ADE150,NRE150,ZRE151..RHD..N DK.GRAY,TRIM1# |
1 | ||
| 55660-12420B0 |
NDE150,NRE150,ZRE151..RHD..D DK.GRAY,TRIM1# |
1 | ||
| 55660-12390E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-12370 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) |
1 | ||
| 55670-12380 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 55670-12590 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..N..(DCR,HTWC) |
1 | ||
| 55670-12600 |
NDE150,NRE150,ZRE151..D..(DCR,HTWC) |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-12101B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 58816-12101E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-12081E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 58817-12081B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD DK.GRAY,TRIM1# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-12040B0 |
ADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 73900-12040E0 |
ADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM) SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 74133-12050 | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
