NRE150R-AEFDKW (2008)
Toyota Corolla Sed (Jpp)
(0611- )

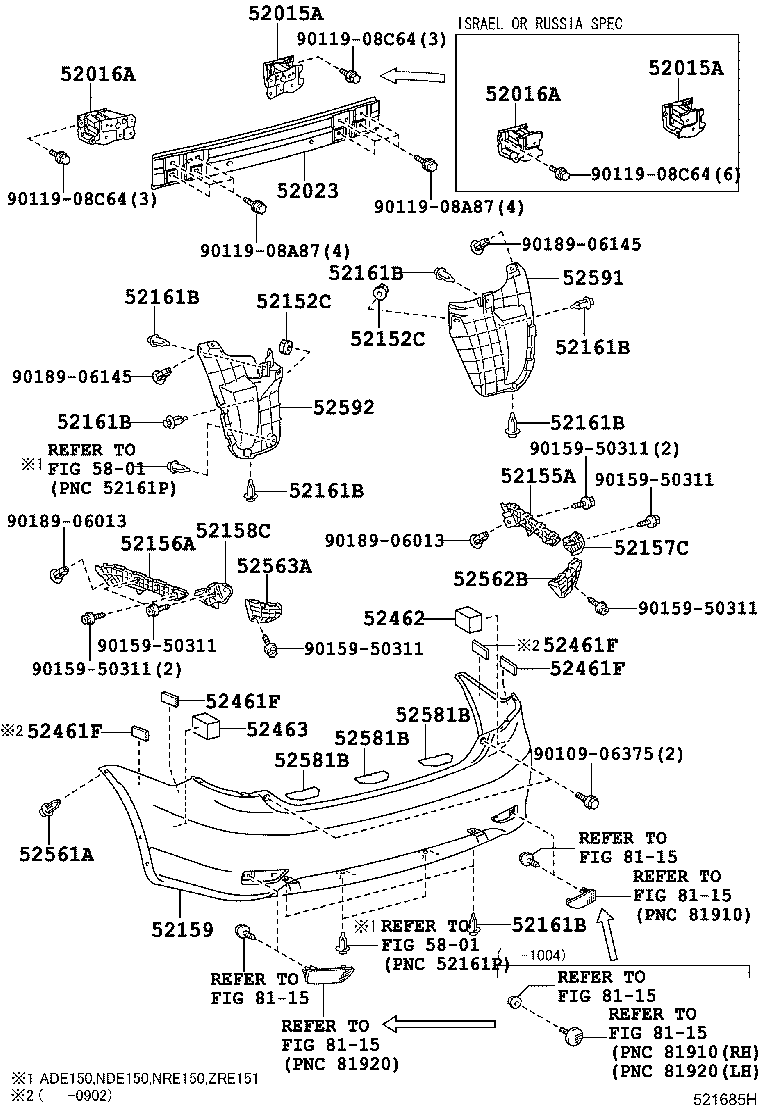

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-12310 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-12310 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-12280 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-12280 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52171-12200 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-06121 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-06121 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
2 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-12320 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-12290 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-12160 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-12090 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-12934 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
8 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-12030 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
4 | ||
| 52461-12030 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
2 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-12030 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
4 | ||
| 52461-12030 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
2 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-12030 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
4 | ||
| 52461-12030 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
2 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-12030 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
4 | ||
| 52461-12030 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
2 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-12090 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-12090 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-05090B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY |
2 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-12130 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-12040 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-13030 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
3 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-13030 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
3 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-13030 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
3 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12200 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12120 |
ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC) |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-08A87 | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| 90189-06013 | ||||
| 90189-06145 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 8115 | ||||
