NRE150R-AEFDKW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )NDE150,NRE150,ZRE151

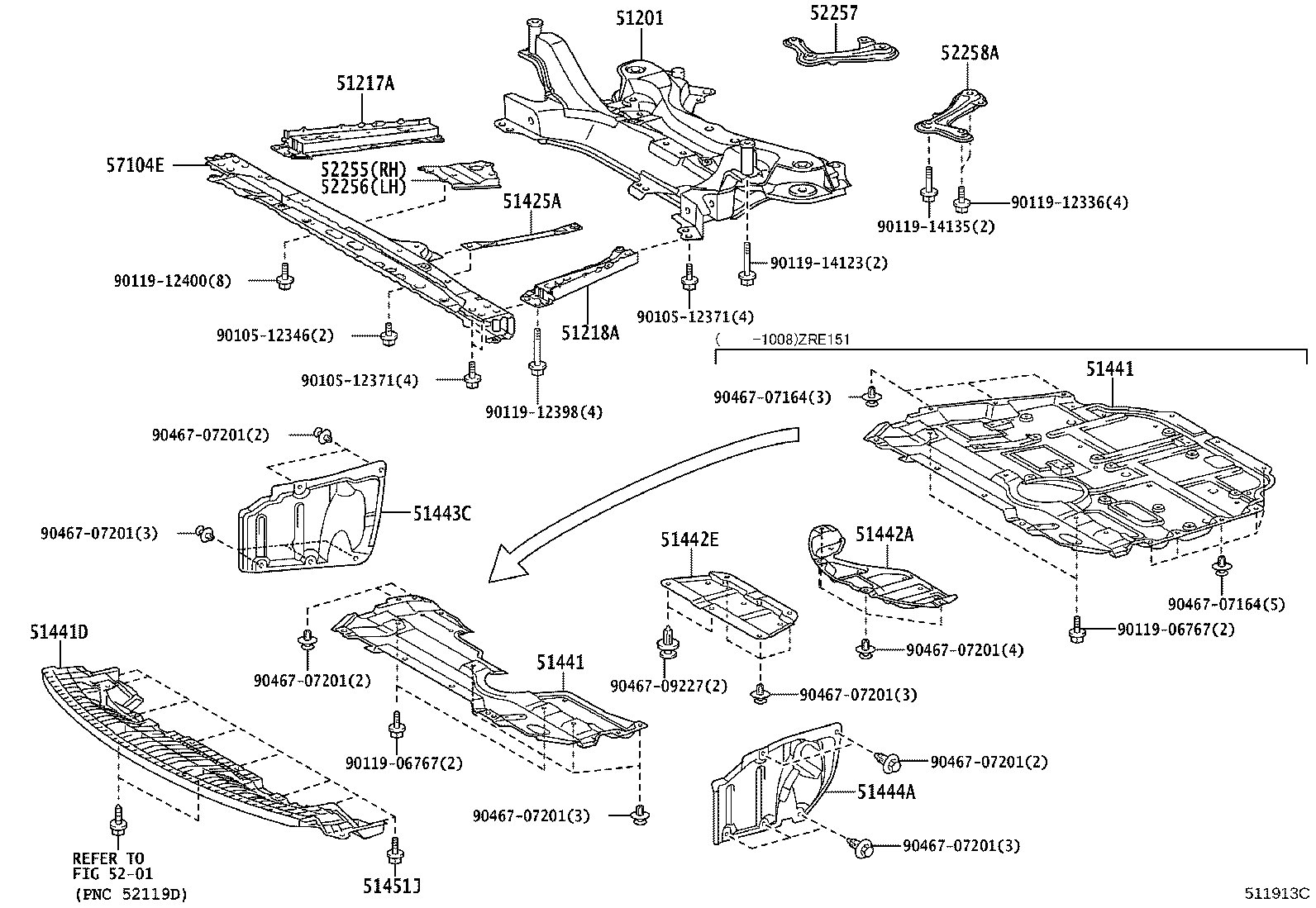

Click highlighted areas on diagram

diagram 51201 51217A 51218A 51425A 51441 51441 51441D 51442A 51442E 51443C 51444A 51451J 5201 52255 52256 52257 52258A 57104E 9010512346 9010512371 9010512371 9011906767 9011906767 9011912336 9011912398 9011912400 9011914123 9011914135 9046707164 9046707164 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046709227
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12441

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51107-12010

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51108-12010

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
51425A - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER
51425-12060

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-12270

NDE150,NRE150..DCR,HTWC

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-12270

NDE150,NRE150..DCR,HTWC

 1
51441D - COVER, ENGINE UNDER
52618-12020

NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM

 1
51442E - COVER, ENGINE UNDER, NO.2
51442-12270

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-12080

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-12050

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
51451J - BOLT, NO.1
90119-06767

NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM

 8
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-12010

NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM

 1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-12010

NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-12011

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-12011

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-12270

ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC

 1
Common parts
90105-12346
90105-12371
90119-06767
90119-12336
90119-12398
90119-12400
90119-14123
90119-14135
90467-07164
90467-07201
90467-09227
Linked diagrams
5201
