NRE150R-AEFDKW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

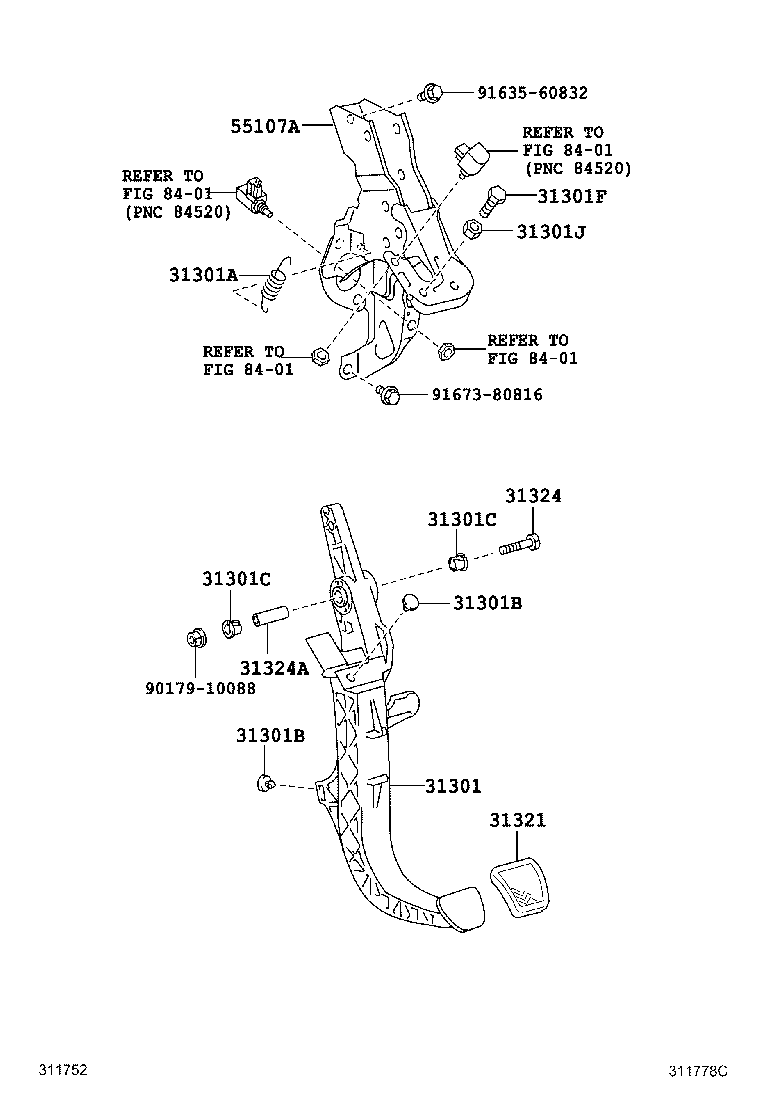

ILLUST NO. 1 OF 2(0611- )NRE150,ZRE151,ZZE150..RHD

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 55107A 8401 8401 8401 8401 9017910088 9163560832 9167380816
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31311-12370

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

ZRE151..RHD..N;NRE150,ZRE151..6F..HTWC

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-61000

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
31321 - PAD, CLUTCH PEDAL
31321-42010

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12270

NRE150..RHD;ZRE151..RHD..N

 1
Common parts
90179-10088
91635-60832
91673-80816
Linked diagrams
8401

ILLUST NO. 2 OF 2(0812- )NRE150..RHD

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31481M 31481M 31483E 31484 31485 9046110753 9046110836 9046808040 9046808040 9155180820 9167180616 9167180816 9167180816
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02E28

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12370

NRE150..RHD;ZRE151..RHD..N

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

ZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)

 2
31483E - TUBE, BLEEDER CLUTCH RELEASE
31483-12140

ZRE151..RHD..N;NRE150,ZRE151..6F..HTWC

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12500

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12440

ZRE151..RHD..N;NRE150,ZRE151..6F..HTWC

 1
Common parts
90461-10753
90461-10836
90468-08040
91551-80820
91671-80616
91671-80816
Linked diagrams
3103
3105
