NRE150R-AEFDKW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )1NRFE

Click highlighted areas on diagram

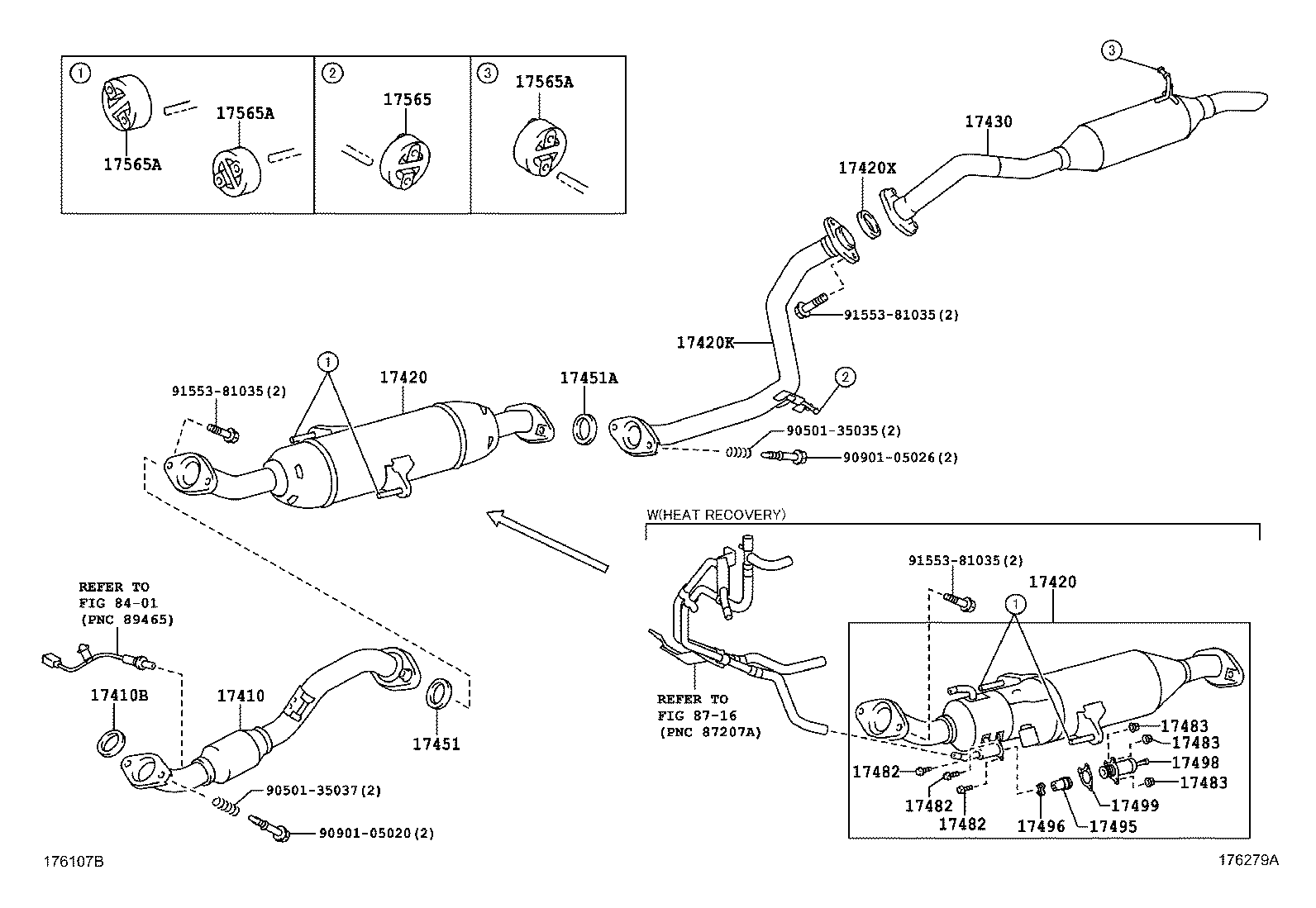

diagram 17410 17410B 17420 17420 17420K 17420X 17430 17451 17451A 17482 17482 17482 17483 17483 17483 17495 17496 17498 17499 17565 17565A 17565A 17565A 8401 8716 9050135035 9050135037 9090105020 9090105026 9155381035 9155381035 9155381035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-47060

1NRFE..NRE150

*114=TOYOTA/CD9/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-47020

1NRFE..NRE150..RHD

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-47070

1NRFE..NRE150

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-47070

1NRFE..NRE150

 1
17420K - PIPE ASSY, EXHAUST, CENTER NO.2
17420-22110

1NRFE..NRE150..RHD

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06089

1ZRFAE..ZRE151..RHD..N;1N#..NDE150,NRE150..RHD..(DCR,HTWC)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37170

1NRFE..NRE150..RHD;1ZRFAE..ZRE151..RHD..N

 1
17451 - GASKET, EXHAUST PIPE
90917-06089

1NRFE..NRE150..RHD

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-28031

1NRFE..NRE150..RHD

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22030

1ZRFAE..ZRE151..RHD..N;1N#..NDE150,NRE150..RHD..(DCR,HTWC)

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1ZRFAE..ZRE151..RHD..N;1N#..NDE150,NRE150..RHD..(DCR,HTWC)

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1ZRFAE..ZRE151..RHD..N;1N#..NDE150,NRE150..RHD..(DCR,HTWC)

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1ZRFAE..ZRE151..RHD..N;1N#..NDE150,NRE150..RHD..(DCR,HTWC)

 3
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
91553-81035
Linked diagrams
8401
8716
