NRE150R-AEFDKW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )1NRFE

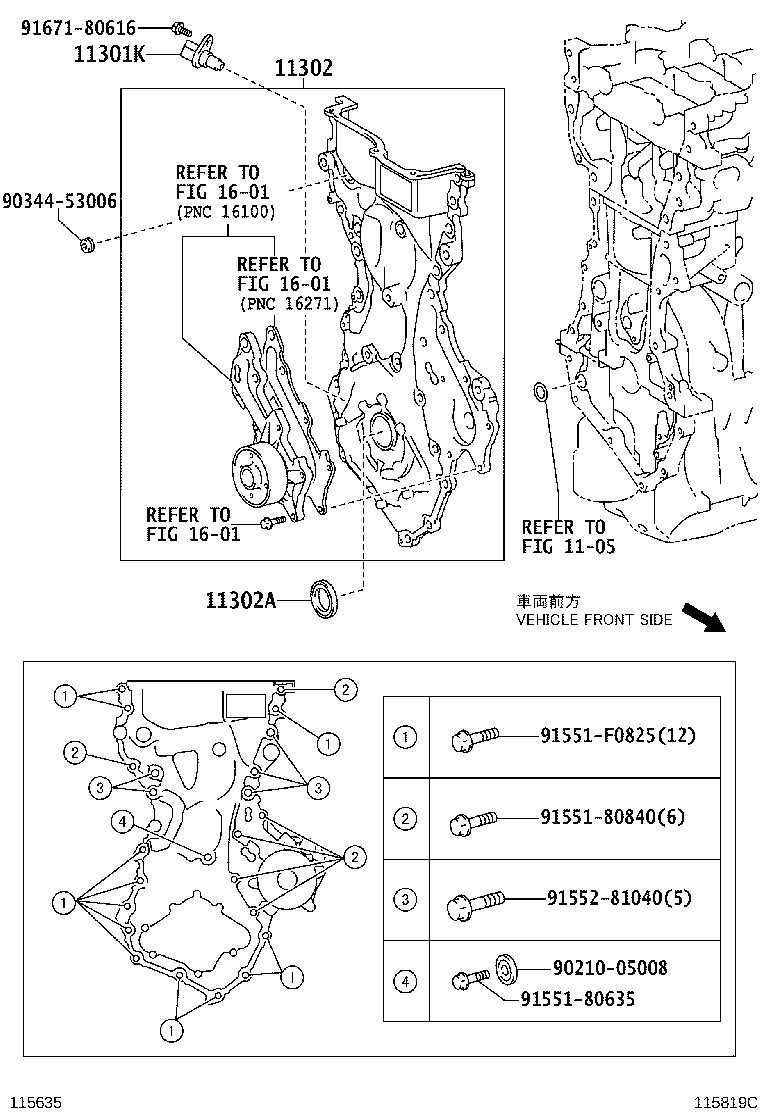

Click highlighted areas on diagram

diagram 1105 11301K 11302 11302A 1601 1601 1601 9021005008 9034453006 9155180635 9155180840 91551F0825 9155281040 9167180616
Part # Description Qty Price
11301K - SENSOR, CRANK POSITION
90919-05073

1NRFE..NRE150..RHD

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-47010

1NRFE..NRE150

 1
11310-47011

1NRFE..NRE150

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-25031

1NRFE..NRE150

 1
Common parts
90210-05008
90344-53006
91551-80635
91551-80840
91551-F0825
91552-81040
91671-80616
Linked diagrams
1105
1601
