NRE150L-AEFDKW (2010)
Toyota Corolla Sed (Jpp)
ILLUST NO. 4 OF 7(0611- )LHD

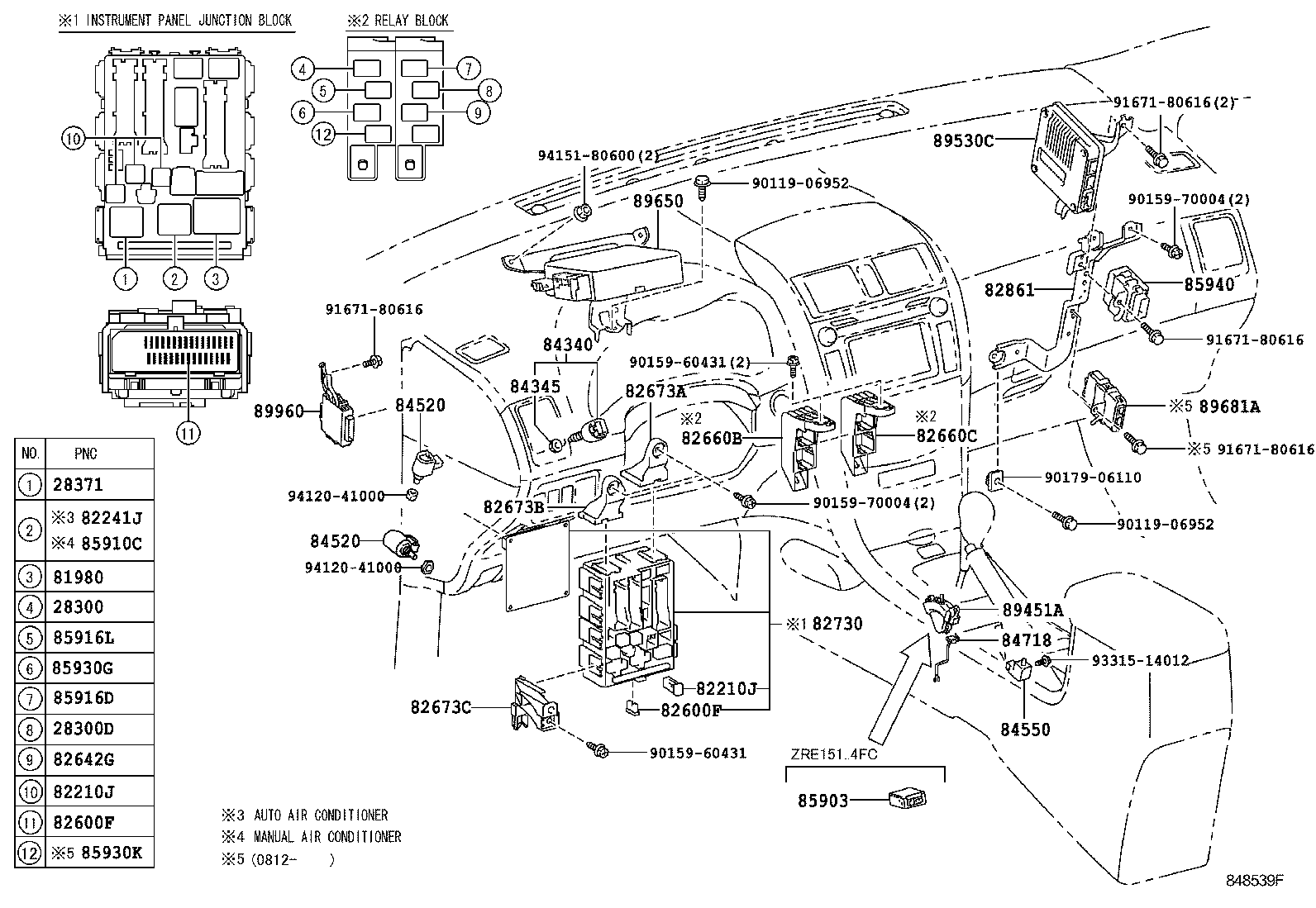

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1N#,1ZRFE..NDE150,NRE150,ZRE151 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1N#,1ZRFE..NDE150,NRE150,ZRE151 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
NDE150,NRE150,ZRE151 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
NDE150,NRE150,ZRE151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NDE150,NRE150,ZRE151 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
NDE150,NRE150,ZRE151 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
NDE150,NRE150,ZRE151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NDE150,NRE150,ZRE151 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
NDE150,NRE150,ZRE151 50A,TERM.:FEMALE,RED |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
NDE150,NRE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO |
1 | ||
| 82241-42010 |
NRE150,ZRE151..N DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO |
1 | ||
| 82241-42010 |
NRE150,ZRE151..N AIR CONDITIONER-AUTO |
1 | ||
| 82241-42010 |
NDE150,NRE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NDE150,NRE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NDE150,NRE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NDE150,NRE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
NDE150,NRE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
NDE150,NRE150,ZRE151 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NDE150,NRE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NDE150,NRE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NDE150,NRE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NDE150,NRE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NDE150,NRE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NDE150,NRE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90982-09025 |
NDE150,NRE150,ZRE151 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NDE150,NRE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NDE150,NRE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NDE150,NRE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
NDE150,NRE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
NDE150,NRE150,ZRE151 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NDE150,NRE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NDE150,NRE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NDE150,NRE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NDE150,NRE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NDE150,NRE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NDE150,NRE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90982-09025 |
NDE150,NRE150,ZRE151 30A,MINI FUSE,GRN |
1 | ||
| 82642G - RELAY, PANEL | ||||
| 90987-02027 |
NDE150,NRE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 90987-02027 |
NDE150,NRE150,ZRE151..D WIRELESS DOOR LOCK-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90987-02027 |
NDE150,NRE150,ZRE151 DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90987-02027 |
NDE150,NRE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
NDE150,NRE150,ZRE151 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82755-12020 |
NDE150,NRE150,ZRE151 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12240 |
NDE150,NRE150,ZRE151 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12250 |
NDE150,NRE150,ZRE151 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12260 |
NDE150,NRE150,ZRE151 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12Q00 |
NDE150,NRE150,ZRE151..D WIRELESS DOOR LOCK-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-12Q10 |
NDE150,NRE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-12Q10 |
NDE150,NRE150,ZRE151 DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-12B40 |
NDE150,NRE150,ZRE151..D WIRELESS DOOR LOCK-WITHOUT |
1 | ||
| 82730-12U40 |
NDE150,NRE150,ZRE151 |
1 | ||
| 82730-12U50 |
NDE150,NRE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-12030 |
NRE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NDE150,NRE150,ZRE151..6F |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NDE150,NRE150,ZRE151..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NDE150,NRE150,ZRE151 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NRE150,ZRE151..N AIR CONDITIONER-AUTO |
1 | ||
| 90987-04010 |
NDE150..D;NRE150,ZRE151 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NDE150,NRE150,ZRE151 FRONT FOG LAMP-WITH |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
NDE150,NRE150,ZRE151 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
NDE150,NRE150,ZRE151 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12160 |
NDE150,NRE150,ZRE151..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12A71 |
NRE150,ZRE151 |
1 | ||
| 89650-12A70 |
NRE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90179-06110 | ||||
| 91671-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 7(0611- )LHD

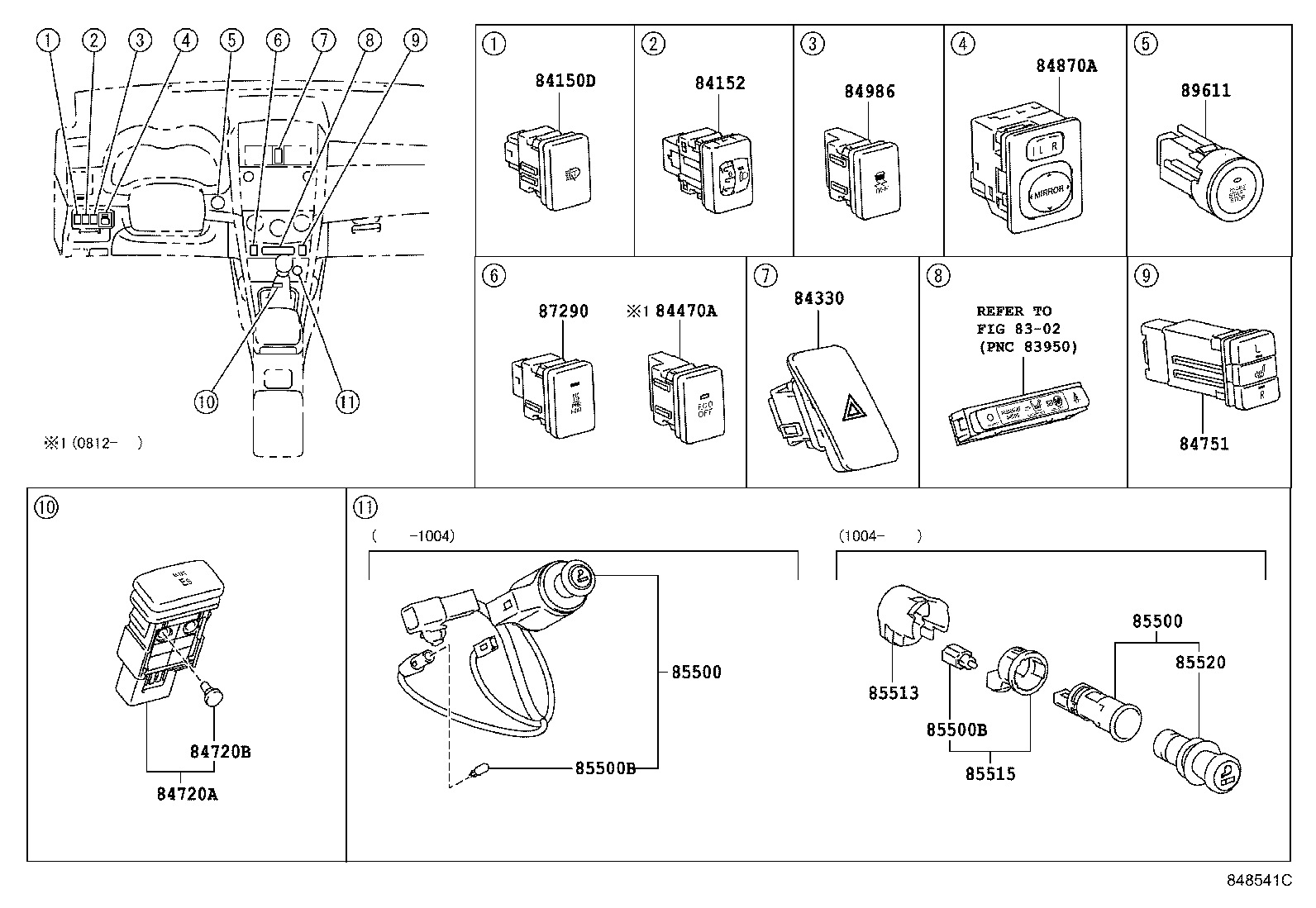

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-42020 |
NDE150,NRE150,ZRE151 HEADLAMP CLEANER-WITH |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12070 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12520 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-42040 |
NDE150,NRE150,ZRE151..DCRL,HTWC COLD AREA SPEC |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
NDE150,NRE150,ZRE151..D..(DCRL,HTWC) OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLOR),W/HEATER |
1 | ||
| 84870-28020 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84870-34010 |
NDE150,NRE150,ZRE151..D OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-12010 |
ZRE151;NRE150..N VSC-WITH |
1 | ||
| 84986-12010 |
NRE150..D VSC-WITH |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
NDE150,NRE150,ZRE151 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
NDE150,NRE150,ZRE151 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01030 |
NDE150,NRE150,ZRE151 14V1.4W,W/ORANGE CAP |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01030 |
NDE150,NRE150,ZRE151 14V1.4W,W/ORANGE CAP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
NDE150,NRE150,ZRE151 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22040 |
NDE150,NRE150,ZRE151 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NDE150,NRE150,ZRE151 |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 7 OF 7(0611- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12730 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NDE150,NRE150,ZRE151 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NDE150,NRE150,ZRE151 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NDE150,NRE150,ZRE151 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NDE150,NRE150,ZRE151 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NDE150,NRE150,ZRE151..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84810-52030 |
NDE150,NRE150,ZRE151..N |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NDE150,NRE150,ZRE151..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84810-52030 |
NDE150,NRE150,ZRE151..N |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12510 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 84820-12520 |
NDE150,NRE150,ZRE151..N |
1 | ||
| 84820-12520 |
NDE150,NRE150,ZRE151..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12510 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 84820-12520 |
NDE150,NRE150,ZRE151..N |
1 | ||
| 84820-12520 |
NDE150,NRE150,ZRE151..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| Common parts | ||||
| 90159-40085 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 91671-80616 | ||||

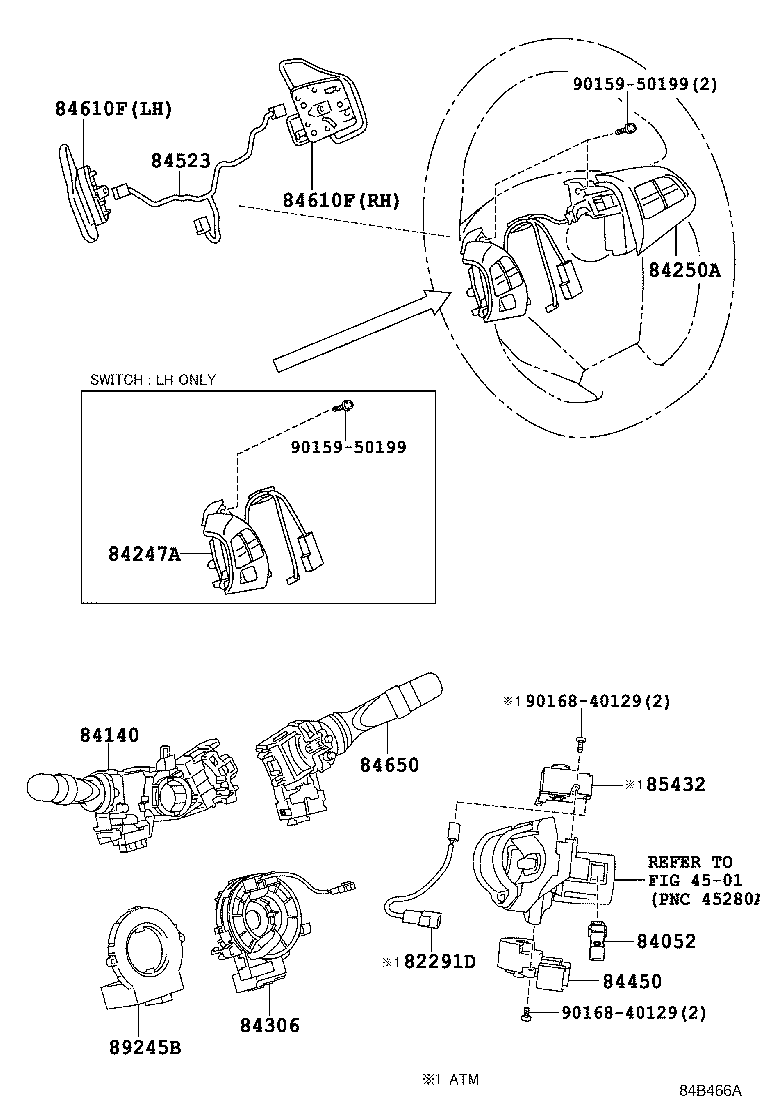

ILLUST NO. 6 OF 7(1004- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12611 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84140-12651 |
NDE150,NRE150,ZRE151..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 84140-12651 |
NDE150,NRE150,ZRE151..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-12621 |
NDE150,NRE150,ZRE151 FRONT FOG LAMP-WITH |
1 | ||
| 84140-12661 |
NDE150,NRE150,ZRE151..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITH |
1 | ||
| 84140-12631 |
NDE150,NRE150,ZRE151 DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-12661 |
NDE150,NRE150,ZRE151..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-12641 |
NDE150,NRE150,ZRE151 FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-12170 |
NDE150,NRE150,ZRE151..(4FC,6F)..N |
1 | ||
| 84247-12170 |
NDE150,NRE150,ZRE151..D STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-12350 |
NDE150,NRE150,ZRE151..(4FC,6F)..N AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12100 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 84306-12110 |
NRE150..D STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)&VSC-WITH |
1 | ||
| 84306-12110 |
NDE150,NRE150,ZRE151..N |
1 | ||
| 84306-12110 |
NDE150,NRE150,ZRE151..D STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12A20 |
NDE150,NRE150,ZRE151 |
1 | ||
| 84652-33441 |
NDE150,NRE150,ZRE151..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
NRE150..D STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)&VSC-WITH |
1 | ||
| 89245-12020 |
NRE150..D VSC-WITH |
1 | ||
| 89245-12020 |
ZRE151;NRE150..N VSC-WITH |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
