NDE150L-AEFNXW (2008)
Toyota Corolla Sed (Jpp)
Production
Dec 2008
-
Feb 2010
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0812- )1NDTV..DCR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25760A - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-33110 |
1NDTV..NDE150..DCR |
1 | ||
| 25760-33110 |
1NDTV..NDE150..DCRL |
1 | ||
| 25770A - HOSE ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25760-33130 |
1NDTV..NDE150..DCRL |
1 | ||
| 25760-33130 |
1NDTV..NDE150..DCR |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-30070 |
1NDTV..NDE150..DCRL |
1 | ||
| 25860-30070 |
1NDTV..NDE150..DCR |
1 | ||
| Common parts | ||||
| 90447-08091 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8202 | ||||
| 8405 | ||||

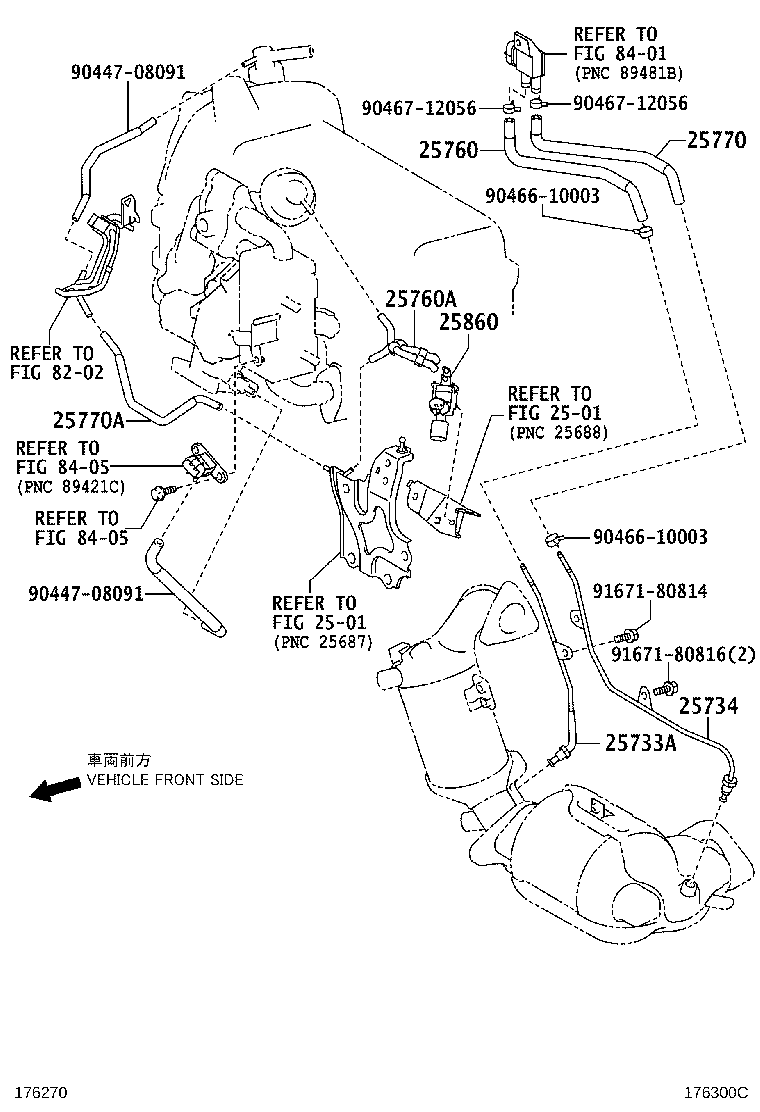

(0812-1002)1NDTV..DCRL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25733A - PIPE, VACUUM, NO.1 | ||||
| 25733-33010 |
1NDTV..NDE150..DCRL |
1 | ||
| 25734 - PIPE, VACUUM, NO.2 | ||||
| 25734-33010 |
1NDTV..NDE150..DCRL |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-33080 |
1NDTV..NDE150..DCRL |
1 | ||
| 25760A - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-33110 |
1NDTV..NDE150..DCR |
1 | ||
| 25760-33110 |
1NDTV..NDE150..DCRL |
1 | ||
| 25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25770-33020 |
1NDTV..NDE150..DCRL |
1 | ||
| 25770A - HOSE ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25760-33130 |
1NDTV..NDE150..DCRL |
1 | ||
| 25760-33130 |
1NDTV..NDE150..DCR |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-30070 |
1NDTV..NDE150..DCRL |
1 | ||
| 25860-30070 |
1NDTV..NDE150..DCR |
1 | ||
| Common parts | ||||
| 90447-08091 | ||||
| 90466-10003 | ||||
| 90467-12056 | ||||
| 91671-80814 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8202 | ||||
| 8401 | ||||
| 8405 | ||||
