NDE150L-AEFDYW (2008)
Toyota Corolla Sed (Jpp)

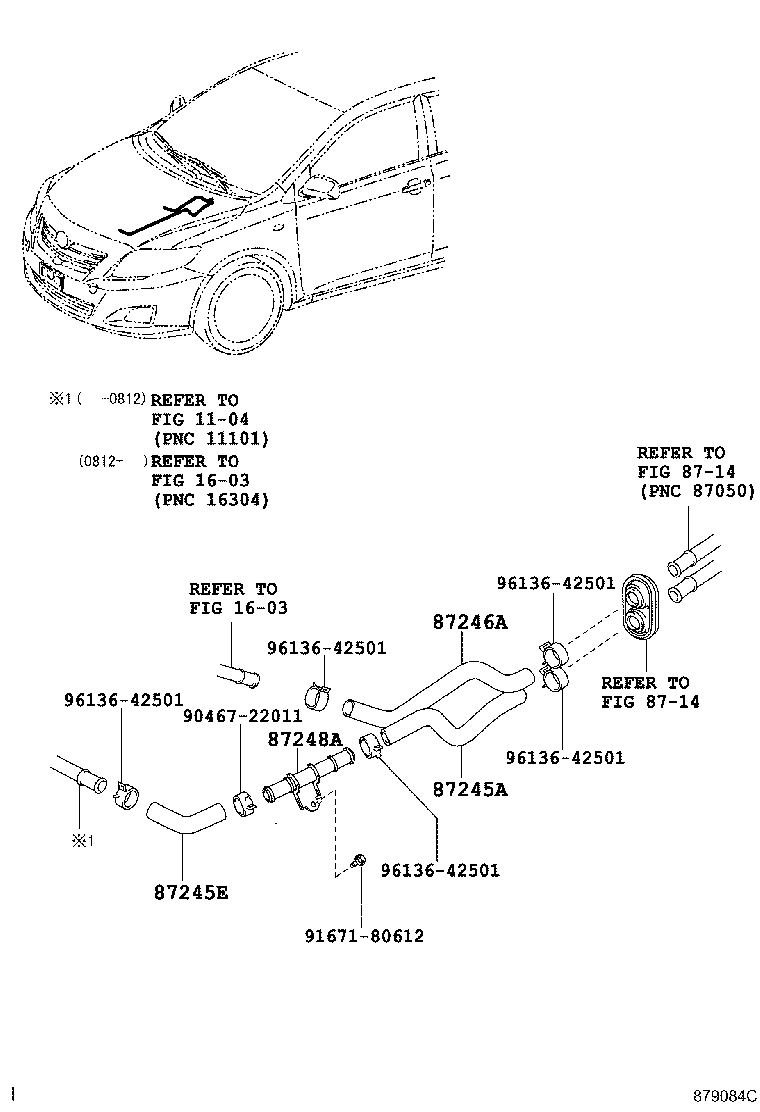

(0611- )NDE150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-12A90 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12B50 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12B50 |
NDE150..LHD;ADE150..LHD..DCRL COLD AREA SPEC |
1 | ||
| 87245-12F10 |
NDE150 |
1 | ||
| 87245-12A90 |
NDE150 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-12A80 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12A80 |
NDE150 |
1 | ||
| 87245-12E90 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87245-12E90 |
NDE150..DCR |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-12B00 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12B00 |
NDE150 |
1 | ||
| 87245-12F70 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87245-12F70 |
NDE150..DCR |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-12230 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87248-12230 |
NDE150 |
1 | ||
| 87248-12290 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87248-12290 |
NDE150..DCR |
1 | ||
| Common parts | ||||
| 90467-22011 | ||||
| 91671-80612 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||

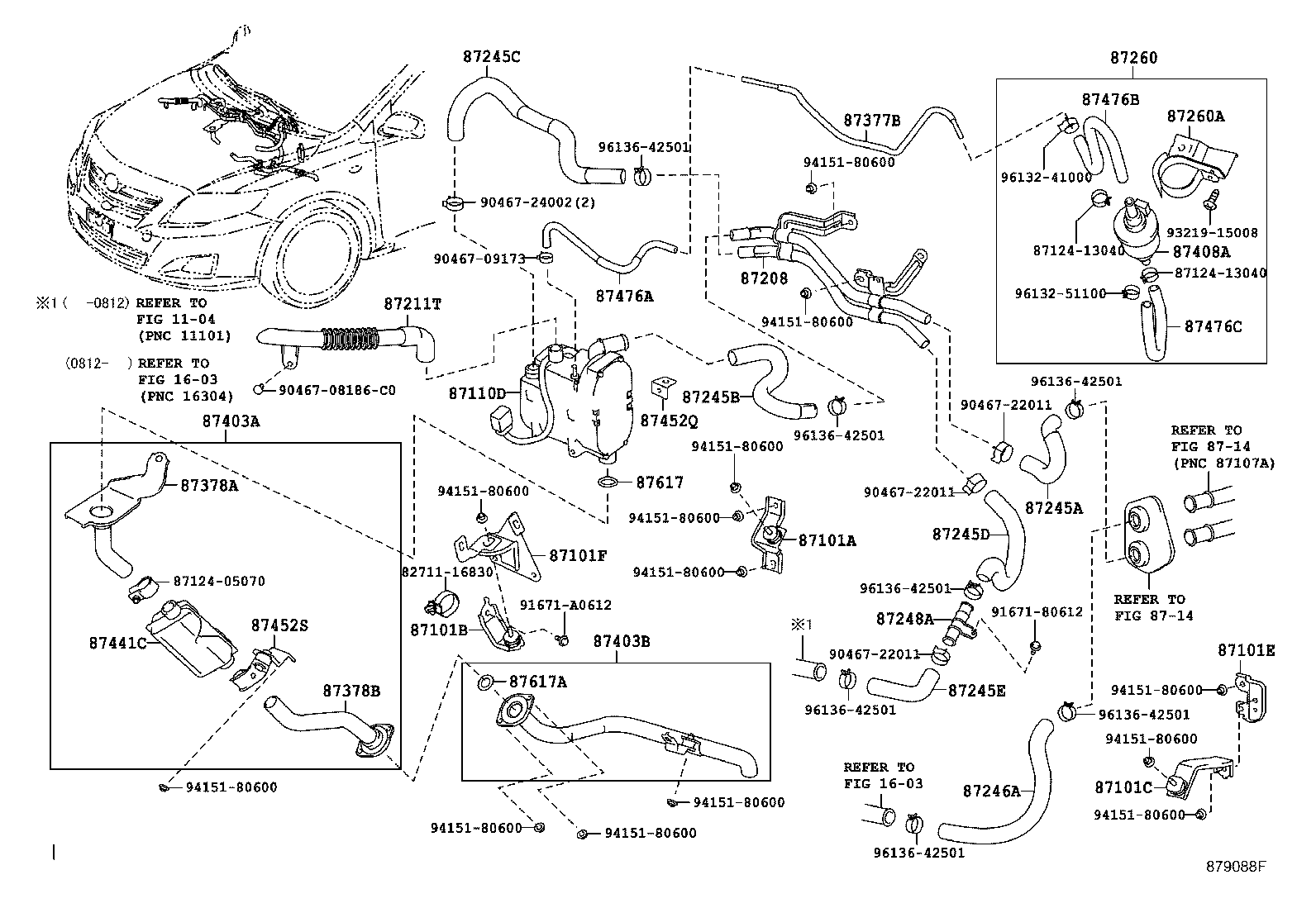

(0611- )NDE150
W(STOVE HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87101A - BRACKET SUB-ASSY, HEATER NO.1 | ||||
| 87101-12080 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87101-12080 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87101B - BRACKET SUB-ASSY, HEATER NO.2 | ||||
| 87101-12090 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87101-12090 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87101C - BRACKET SUB-ASSY, HEATER NO.3 | ||||
| 87101-12100 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87101-12100 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87101E - BRACKET SUB-ASSY, HEATER NO.4 | ||||
| 87101-12120 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87101-12120 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87101F - BRACKET SUB-ASSY, HEATER NO.5 | ||||
| 87101-12140 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87101-12110 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87110D - HEATER ASSY | ||||
| 87110-02030 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-12070 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87208-12060 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87211T - DUCT, AIR | ||||
| 87211-12360 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87211-12360 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-12A90 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12B50 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12B50 |
NDE150..LHD;ADE150..LHD..DCRL COLD AREA SPEC |
1 | ||
| 87245-12F10 |
NDE150 |
1 | ||
| 87245-12A90 |
NDE150 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-12B40 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12F40 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-12B30 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12B30 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 87245-12F50 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87245-12B60 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-12A80 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12A80 |
NDE150 |
1 | ||
| 87245-12E90 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87245-12E90 |
NDE150..DCR |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-12B00 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87245-12B00 |
NDE150 |
1 | ||
| 87245-12F70 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87245-12F70 |
NDE150..DCR |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-12230 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87248-12230 |
NDE150 |
1 | ||
| 87248-12290 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87248-12290 |
NDE150..DCR |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-12030 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87260-12030 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87260A - BRACKET, HEATER PUMP | ||||
| 87261-12050 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87261-12050 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87377B - PIPE, FUEL | ||||
| 87377-12020 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87377-12020 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87378A - PIPE, EXHAUST | ||||
| 87378-12060 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87378-12060 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87378B - PIPE, EXHAUST, NO.2 | ||||
| 87378-12070 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87378-12070 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87403A - PIPE SUB-ASSY, EXHAUST | ||||
| 87403-12040 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87403-12040 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87403B - PIPE SUB-ASSY, EXHAUST | ||||
| 87403-12030 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87403-12030 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87408A - PUMP SUB-ASSY, FUEL | ||||
| 87408-0D011 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87408-0D011 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87441C - MUFFLER | ||||
| 87441-05010 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87441-05010 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87452Q - BRACKET, HEATER, NO.1 | ||||
| 87452-12030 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87452-12030 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87452S - BRACKET, HEATER, NO.2 | ||||
| 87452-12040 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87452-12040 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87476A - HOSE, HEATER FUEL, NO.1 | ||||
| 87476-12050 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87476-12070 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87476B - HOSE, HEATER FUEL, NO.2 | ||||
| 87476-12060 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87476-12060 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87476C - HOSE, HEATER FUEL, NO.3 | ||||
| 87476-12040 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 87476-12040 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 87617 - GASKET, HEAT EXCHANGER UNIT NO.1 | ||||
| 87617-12020 |
NDE150..LHD COLD AREA SPEC |
2 | ||
| 87617-12020 |
NDE150..LHD..DCR COLD AREA SPEC |
2 | ||
| 87617A - GASKET, HEAT EXCHANGER UNIT NO.2 | ||||
| 87617-13030 |
NDE150..LHD..DCR COLD AREA SPEC |
2 | ||
| 87617-13030 |
NDE150..LHD COLD AREA SPEC |
2 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 87124-05070 | ||||
| 87124-13040 | ||||
| 90467-08186C0 | ||||
| 90467-09173 | ||||
| 90467-22011 | ||||
| 90467-24002 | ||||
| 91671-80612 | ||||
| 91671-A0612 | ||||
| 93219-15008 | ||||
| 94151-80600 | ||||
| 96132-41000 | ||||
| 96132-51100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
