NDE150L-AEFDYW (2008)
Toyota Corolla Sed (Jpp)

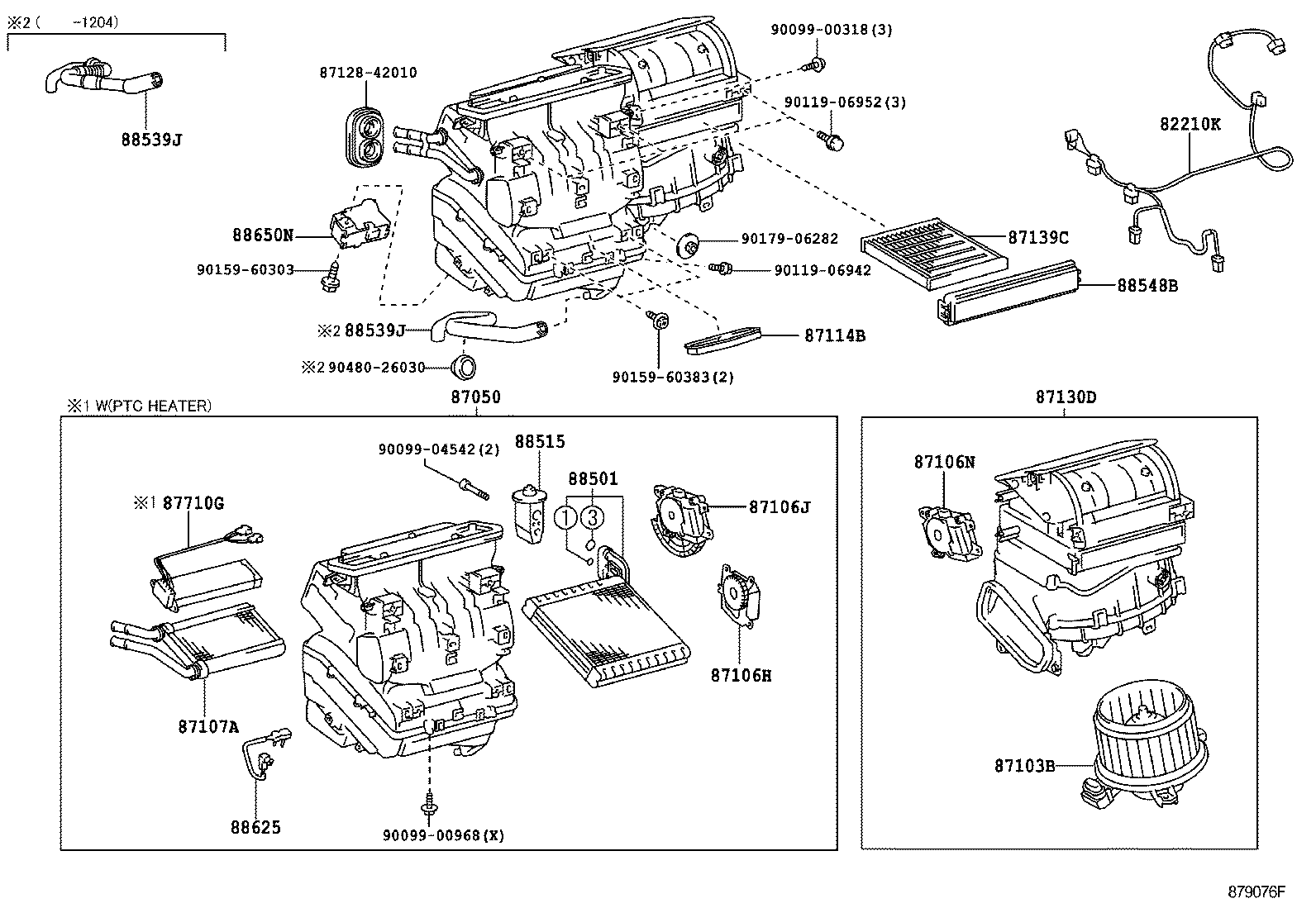

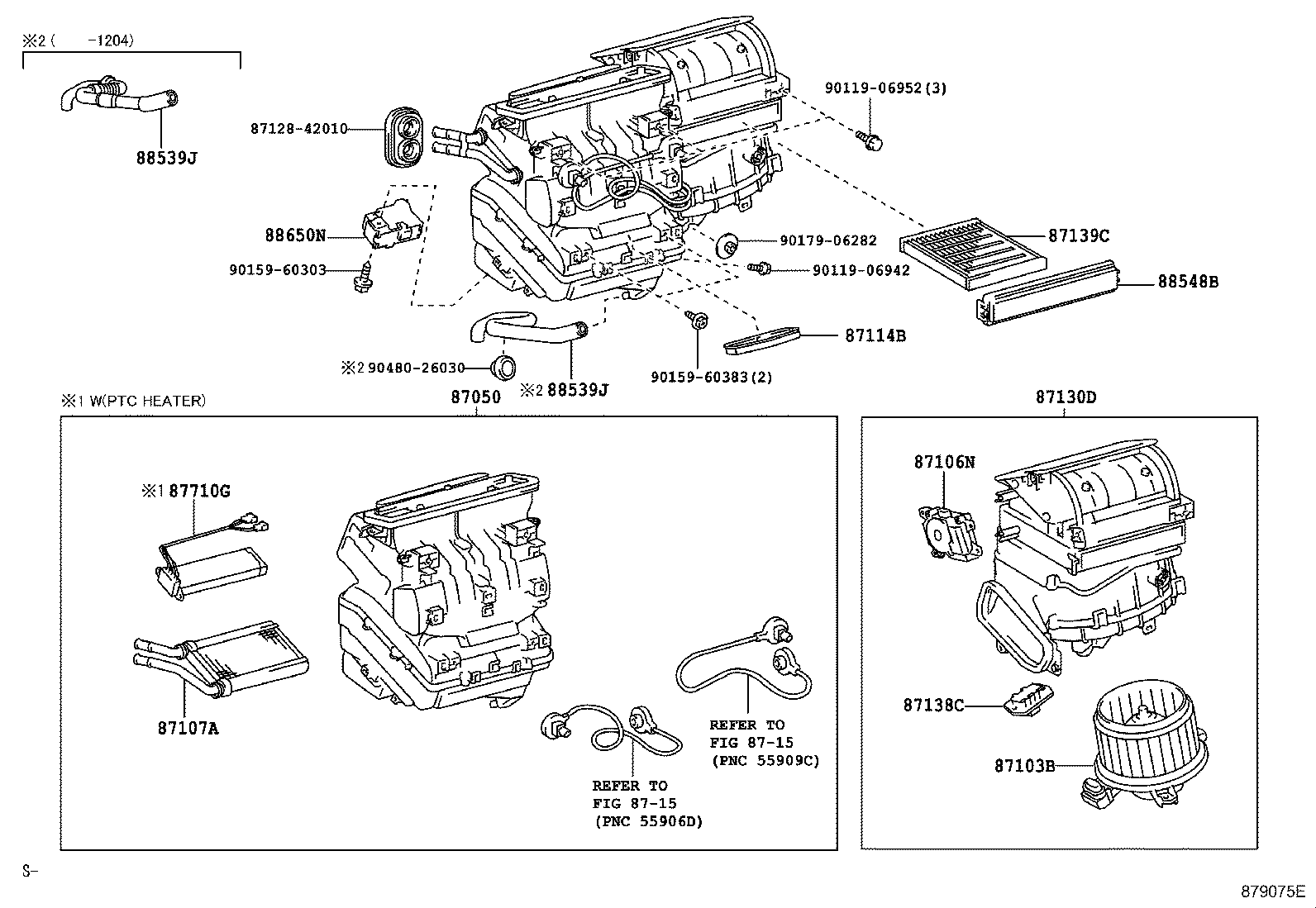

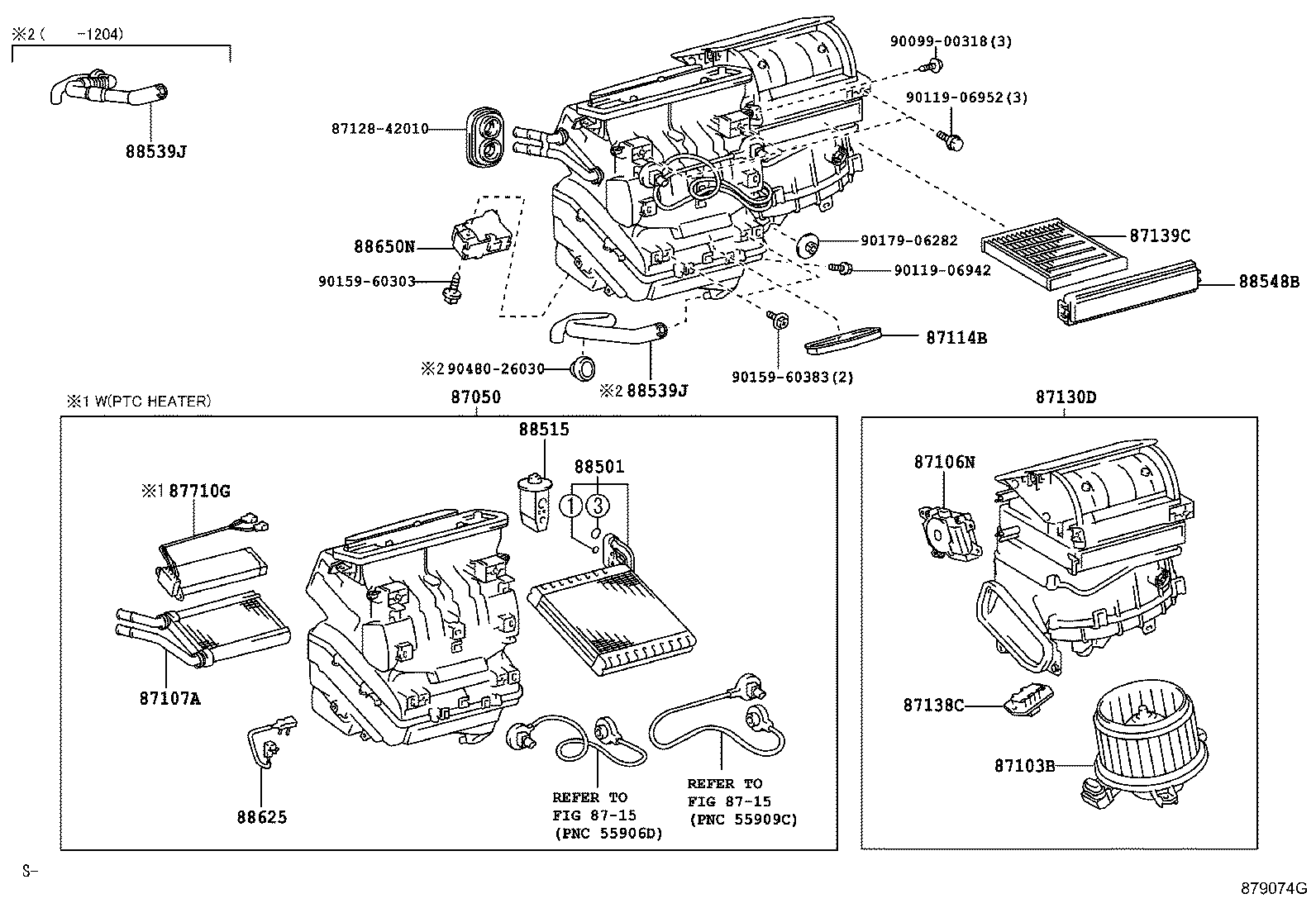

ILLUST NO. 1 OF 2(0611- )LHD
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12440 |
NDE150..LHD..D |
1 | ||
| 87050-12390 |
NDE150..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 87050-12430 |
NDE150..LHD..D COLD AREA SPEC |
1 | ||
| 87050-12400 |
NDE150..LHD..D MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 87050-12390 |
NDE150..LHD..D COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 87050-42411 |
NDE150..LHD..D |
1 | ||
| 87050-42371 |
NDE150..LHD..D AIR CONDITIONER-MANUAL |
1 | ||
| 87050-12390 |
NDE150..N;ADE150..LHD..DCRL COLD AREA SPEC |
1 | ||
| 87050-12430 |
NDE150..LHD..D COLD AREA SPEC |
1 | ||
| 87050-12290 |
NDE150..N;ADE150..LHD..DCRL COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 87050-42371 |
NDE150..N |
1 | ||
| 87050-42371 |
NDE150..LHD..D |
1 | ||
| 87050-12540 |
NDE150..N AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 87050-12390 |
NDE150..LHD..D COLD AREA SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-12080 |
NDE150,ZRE151..LHD..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 87103-42090 |
NDE150,ZRE151..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 87103-42090 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 87103-12080 |
NDE150,ZRE151,ZZE150..LHD..N AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 87103-12080 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 87103-42090 |
NDE150,ZRE151,ZZE150..LHD..D MANUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 87103-12080 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 87103-42090 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42130 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 87106-42140 |
NDE150,ZRE151..LHD..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 87106-42130 |
NDE150,ZRE151,ZZE150..LHD..D MANUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 87106-42140 |
NDE150,ZRE151,ZZE150..LHD..N AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 87106-42130 |
NDE150,ZRE151..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 87106-42140 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 87106-42130 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD |
1 | ||
| 87106-42140 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-12080 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 87114-12080 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 87114-12080 |
NDE150;ZRE151,ZZE150..RHD SUB COLD AREA SPEC |
1 | ||
| 87114-12080 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) COLD AREA SPEC |
1 | ||
| 87114-12080 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC SUB COLD AREA SPEC |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12420 |
ADE150,NDE150..LHD..N AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 87130-12550 |
NDE150..LHD..D COLD AREA SPEC |
1 | ||
| 87130-12560 |
ADE150,NDE150..LHD |
1 | ||
| 87130-12560 |
NDE150..LHD..D;ADE150..LHD..DCR MANUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 87130-12550 |
NDE150..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 87130-12410 |
ADE150,NDE150..LHD..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 87130-12550 |
ADE150,NDE150..LHD..N COLD AREA SPEC |
1 | ||
| 87130-12560 |
NDE150..LHD..D;ADE150..LHD..DCR COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 87130-12551 |
NDE150..LHD..D COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 87130-12411 |
NDE150..N;ADE150..LHD..DCRL COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 87130-12421 |
NDE150..N;ADE150..LHD..DCRL AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 87130-12551 |
NDE150..LHD;ADE150..LHD..DCRL COLD AREA SPEC |
1 | ||
| 87130-12561 |
NDE150..LHD;ADE150..LHD..DCRL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26160 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 87138-26160 |
NDE150,ZRE151..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 87138-26160 |
NDE150,ZRE151,ZZE150..LHD..D MANUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 87138-26160 |
NDE150..LHD..DCR |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
1 | ||
| 87139-30040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-12020 |
NDE150..LHD |
1 | ||
| 87710-12020 |
NDE150..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 87710-42040 |
NDE150..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26210 |
ADE150,NDE150,ZRE151,ZZE150..N |
1 | ||
| 88501-26210 |
NDE150,ZRE151..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88501-26210 |
NDE150,ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88501-26211 |
NDE150,NRE150,ZRE151..LHD..D COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 88501-26211 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) |
1 | ||
| 88501-26211 |
NDE150,NRE150,ZRE151..D AIR CONDITIONER-MANUAL |
1 | ||
| 88501-26211 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-42090 |
NDE150,ZRE151..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88515-42090 |
NDE150,NRE150,ZRE151..LHD..D COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 88515-42090 |
NDE150,ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88515-26070 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 88515-42090 |
NDE150..N;ADE150..DCRL |
1 | ||
| 88515-42090 |
NDE150..LHD..D AIR CONDITIONER-MANUAL |
1 | ||
| 88515-26070 |
NDE150,NRE150,ZRE151..LHD..D COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 88515-26070 |
NDE150,NRE150,ZRE151..D AIR CONDITIONER-MANUAL |
1 | ||
| 88515-26070 |
ADE150,NDE150,NRE150,ZRE151..N |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12200 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 88539-12200 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12200 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 88539-12200 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 88548-42020 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NDE150,NRE150,ZRE151..LHD..D COLD AREA SPEC&AIR CONDITIONER-MANUAL |
1 | ||
| 88625-26090 |
NDE150,ZRE151..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88625-26090 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 88625-26090 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 88625-26090 |
NDE150,NRE150,ZRE151..D AIR CONDITIONER-MANUAL |
1 | ||
| 88625-26090 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) |
1 | ||
| 88625-26090 |
NDE150,ZRE151,ZZE150..D MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-12A80 |
NDE150..N COLD AREA SPEC |
1 | ||
| 88650-12A90 |
NDE150 |
1 | ||
| 88650-12A80 |
NDE150..LHD..D COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88650-12A90 |
ZRE151..LHD;NDE150..LHD..D COLD AREA SPEC |
1 | ||
| 88650-12B50 |
NDE150..N AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 88650-12B40 |
NDE150..N COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE) |
1 | ||
| 88650-12E20 |
NDE150..LHD..DCR COLD AREA SPEC |
1 | ||
| 88650-12E60 |
NDE150..N..DCR COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88650-12E70 |
NDE150..N..DCR AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 88650-12E30 |
NDE150..LHD..D..DCR COLD AREA SPEC |
1 | ||
| 88650-12E30 |
NDE150..DCR |
1 | ||
| Common parts | ||||
| 87128-42010 | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(0611- )LHD
MANUAL W/O(AIR CONDITIONER)
