NDE150L-AEFDYW (2008)
Toyota Corolla Sed (Jpp)
(0611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

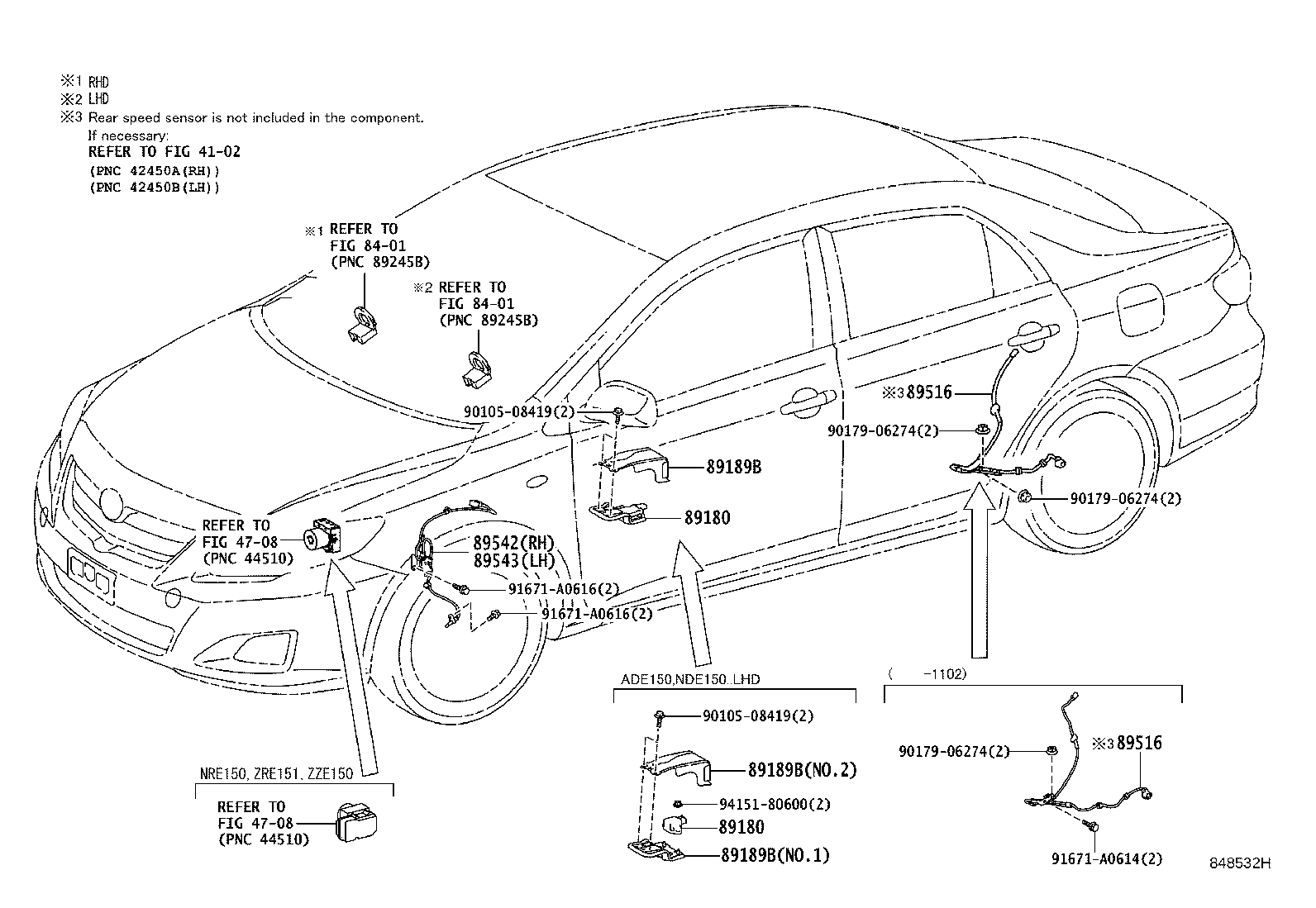

| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89183-12030 |
NDE150..LHD VSC-WITH(CANCEL SWITCH) |
1 | ||
| 89183-12030 |
NDE150..LHD..DCR VSC-WITH(CANCEL SWITCH) |
1 | ||
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89183-12030 |
NDE150..LHD VSC-WITH(CANCEL SWITCH) |
1 | ||
| 89183-12030 |
NDE150..LHD..DCR VSC-WITH(CANCEL SWITCH) |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-12091 |
NDE150..LHD VSC-WITH(CANCEL SWITCH),NO.2 |
1 | ||
| 89189-12081 |
NDE150..LHD VSC-WITH(CANCEL SWITCH),NO.1 |
1 | ||
| 89189-12081 |
NDE150..LHD..DCR VSC-WITH(CANCEL SWITCH),NO.1 |
1 | ||
| 89189-12091 |
NDE150..LHD..DCR VSC-WITH(CANCEL SWITCH),NO.2 |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-12091 |
NDE150..LHD VSC-WITH(CANCEL SWITCH),NO.2 |
1 | ||
| 89189-12081 |
NDE150..LHD VSC-WITH(CANCEL SWITCH),NO.1 |
1 | ||
| 89189-12081 |
NDE150..LHD..DCR VSC-WITH(CANCEL SWITCH),NO.1 |
1 | ||
| 89189-12091 |
NDE150..LHD..DCR VSC-WITH(CANCEL SWITCH),NO.2 |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-12091 |
NDE150..LHD VSC-WITH(CANCEL SWITCH),NO.2 |
1 | ||
| 89189-12081 |
NDE150..LHD VSC-WITH(CANCEL SWITCH),NO.1 |
1 | ||
| 89189-12081 |
NDE150..LHD..DCR VSC-WITH(CANCEL SWITCH),NO.1 |
1 | ||
| 89189-12091 |
NDE150..LHD..DCR VSC-WITH(CANCEL SWITCH),NO.2 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-12180 |
NDE150..DCR;NDE150..6F..DCRL;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM RH |
1 | ||
| 89516-12180 |
NDE150,ZRE151,ZZE150 RH |
1 | ||
| 89516-12190 |
NDE150..DCR;NDE150..6F..DCRL;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LH |
1 | ||
| 89516-12061 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) LH |
1 | ||
| 89516-12190 |
NDE150,ZRE151,ZZE150 LH |
1 | ||
| 89516-12051 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) RH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-12180 |
NDE150..DCR;NDE150..6F..DCRL;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM RH |
1 | ||
| 89516-12180 |
NDE150,ZRE151,ZZE150 RH |
1 | ||
| 89516-12190 |
NDE150..DCR;NDE150..6F..DCRL;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LH |
1 | ||
| 89516-12061 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) LH |
1 | ||
| 89516-12190 |
NDE150,ZRE151,ZZE150 LH |
1 | ||
| 89516-12051 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) RH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-12090 |
NDE150;ADE150..DCRL |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-12090 |
NDE150 |
1 | ||
| 89543-12090 |
NDE150;ADE150..DCRL |
1 | ||
| Common parts | ||||
| 90105-08419 | ||||
| 90179-06274 | ||||
| 91671-A0614 | ||||
| 91671-A0616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 4708 | ||||
| 8401 | ||||
