NDE150L-AEFDYW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )

Click highlighted areas on diagram

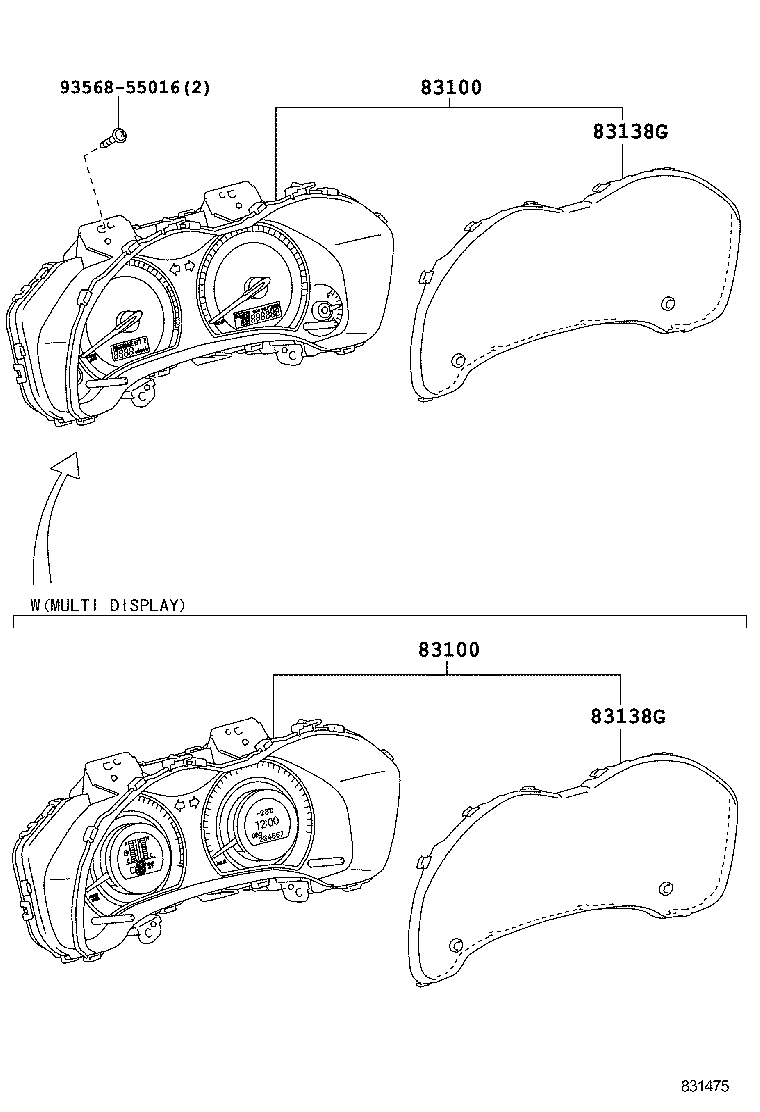

diagram 83100 83100 83138G 83138G 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-02P92

ADE150,NDE150..5F,6F

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

 1
83800-0Z670

NDE150..D

SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)

 1
83800-0Z800

NDE150..LHD..6F..DCR

 1
83100 - METER ASSY, COMBINATION
83800-02P92

ADE150,NDE150..5F,6F

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

 1
83800-0Z670

NDE150..D

SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)

 1
83800-0Z800

NDE150..LHD..6F..DCR

 1
83138G - GLASS, COMBINATION METER
83852-02P50

NDE150,NRE150,ZRE151..LHD..(DCR,HTWC)

 1
83852-02P50

NDE150,ZRE151,ZZE150

 1
83852-02N90

NDE150,NRE150,ZRE151..D

SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)

 1
83138G - GLASS, COMBINATION METER
83852-02P50

NDE150,NRE150,ZRE151..LHD..(DCR,HTWC)

 1
83852-02P50

NDE150,ZRE151,ZZE150

 1
83852-02N90

NDE150,NRE150,ZRE151..D

SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)

 1
Common parts
93568-55016
