NDE150L-AEFDYW (2008)
Toyota Corolla Sed (Jpp)

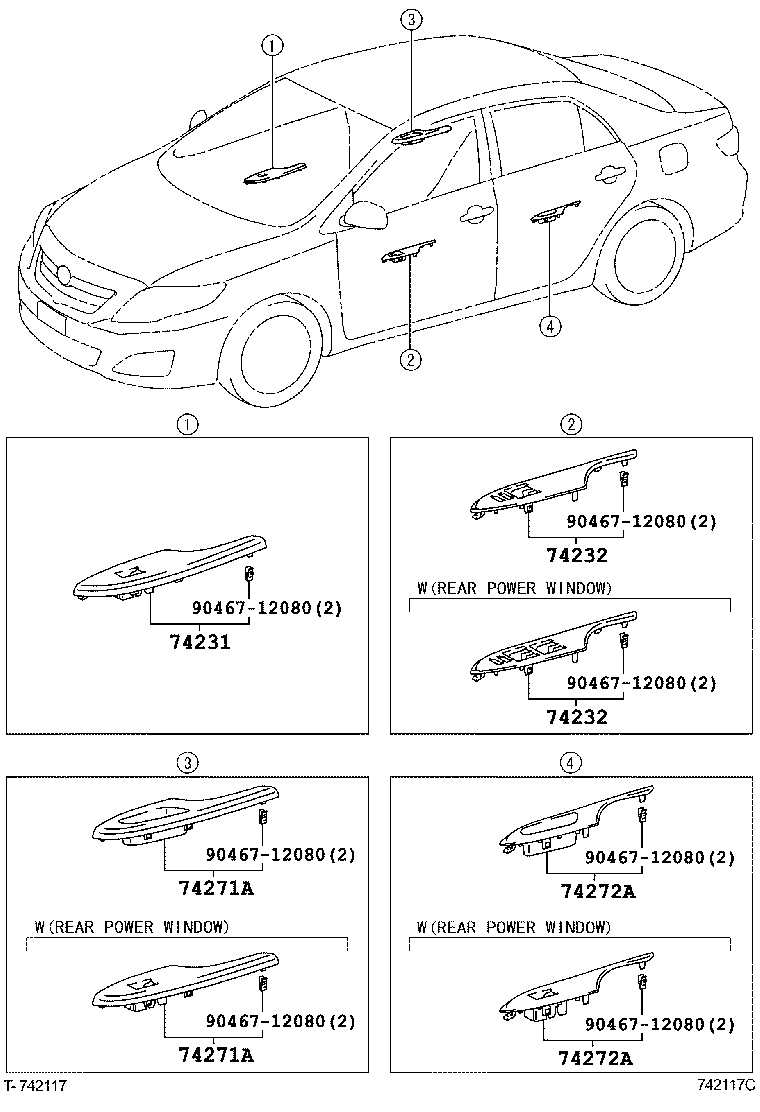

ILLUST NO. 1 OF 2(0611- )LHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-12A10B0 |
NDE150,ZRE151,ZZE150..LHD..D DK.GRAY,TRIM1# |
1 | ||
| 74231-12A10B0 |
NDE150,NRE150,ZRE151..LHD..D DK.GRAY,TRIM1# |
1 | ||
| 74231-12800B0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N SILVER,TRIM1#,4# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-12710B0 |
NDE150,ZRE151,ZZE150..LHD..D DK.GRAY,TRIM1# |
1 | ||
| 74232-12710B0 |
NDE150,NRE150,ZRE151..LHD..D DK.GRAY,TRIM1# |
1 | ||
| 74232-12620B0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N SILVER,TRIM1#,4# |
1 | ||
| 74232-12700B0 |
NDE150,NRE150,ZRE151..LHD..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74232-12700B0 |
NDE150,ZRE151,ZZE150..LHD..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-12710B0 |
NDE150,ZRE151,ZZE150..LHD..D DK.GRAY,TRIM1# |
1 | ||
| 74232-12710B0 |
NDE150,NRE150,ZRE151..LHD..D DK.GRAY,TRIM1# |
1 | ||
| 74232-12620B0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N SILVER,TRIM1#,4# |
1 | ||
| 74232-12700B0 |
NDE150,NRE150,ZRE151..LHD..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74232-12700B0 |
NDE150,ZRE151,ZZE150..LHD..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-12230B0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) SILVER,TRIM1#,4# |
1 | ||
| 74271-12300B0 |
NDE150,ZRE151,ZZE150..D DK.GRAY,TRIM1# |
1 | ||
| 74271-12290B0 |
NDE150,NRE150,ZRE151..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74271-12300B0 |
NDE150,NRE150,ZRE151..D DK.GRAY,TRIM1# |
1 | ||
| 74271-12290B0 |
NDE150,ZRE151,ZZE150..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-12230B0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) SILVER,TRIM1#,4# |
1 | ||
| 74271-12300B0 |
NDE150,ZRE151,ZZE150..D DK.GRAY,TRIM1# |
1 | ||
| 74271-12290B0 |
NDE150,NRE150,ZRE151..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74271-12300B0 |
NDE150,NRE150,ZRE151..D DK.GRAY,TRIM1# |
1 | ||
| 74271-12290B0 |
NDE150,ZRE151,ZZE150..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-12290B0 |
NDE150,ZRE151,ZZE150..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74272-12300B0 |
NDE150,NRE150,ZRE151..D DK.GRAY,TRIM1# |
1 | ||
| 74272-12300B0 |
NDE150,ZRE151,ZZE150..D DK.GRAY,TRIM1# |
1 | ||
| 74272-12290B0 |
NDE150,NRE150,ZRE151..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74272-12230B0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) SILVER,TRIM1#,4# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-12290B0 |
NDE150,ZRE151,ZZE150..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74272-12300B0 |
NDE150,NRE150,ZRE151..D DK.GRAY,TRIM1# |
1 | ||
| 74272-12300B0 |
NDE150,ZRE151,ZZE150..D DK.GRAY,TRIM1# |
1 | ||
| 74272-12290B0 |
NDE150,NRE150,ZRE151..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
1 | ||
| 74272-12230B0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) SILVER,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||

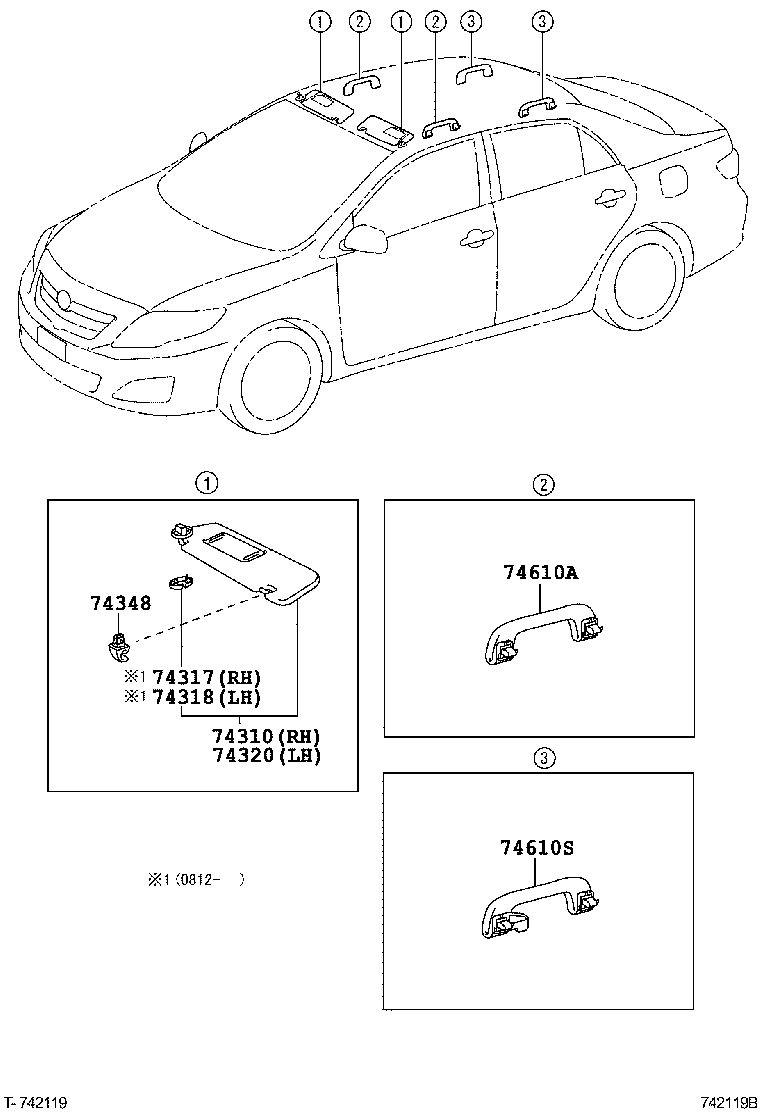

ILLUST NO. 2 OF 2(0611- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-12A70E0 |
NDE150,ZRE151,ZZE150..LHD..N AIR BAG CAUTION LABEL-*GDFSP,GREGE,TRIM4# |
1 | ||
| 74310-12A60B0 |
NDE150,ZRE151,ZZE150..LHD LT.GRAY,TRIM1# |
1 | ||
| 74310-12A60E0 |
NDE150,ZRE151,ZZE150..LHD..N GREGE,TRIM4# |
1 | ||
| 74310-12A70B0 |
NDE150,ZRE151,ZZE150..LHD AIR BAG CAUTION LABEL-*GDFSP,LT.GRAY,TRIM1# |
1 | ||
| 74310-12A70E0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N AIR BAG CAUTION LABEL-*GDFSP,GREGE,TRIM4# |
1 | ||
| 74310-12A70B0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD AIR BAG CAUTION LABEL-*GDFSP,LT.GRAY,TRIM1# |
1 | ||
| 74310-12A60E0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N GREGE,TRIM4# |
1 | ||
| 74310-12A60B0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD LT.GRAY,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-52010B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 74317-52010E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-52020B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 74318-52020E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-12A30E0 |
NDE150,ZRE151,ZZE150..LHD..N GREGE,TRIM4# |
1 | ||
| 74320-12A30B0 |
NDE150,ZRE151,ZZE150..LHD LT.GRAY,TRIM1# |
1 | ||
| 74320-12A30B0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD LT.GRAY,TRIM1# |
1 | ||
| 74320-12A30E0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N GREGE,TRIM4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
2 | ||
| 74348-33040B1 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
2 | ||
| 74348-33040B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
2 | ||
| 74348-33040E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
2 | ||
| 74610-52020B1 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
2 | ||
| 74610-52020B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
2 | ||
| 74610-52020E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
2 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-52030B1 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
2 | ||
| 74610-52030B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
2 | ||
| 74610-52030E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
2 | ||
| 74610-52030E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
2 | ||
