NDE150L-AEFDYW (2008)
Toyota Corolla Sed (Jpp)

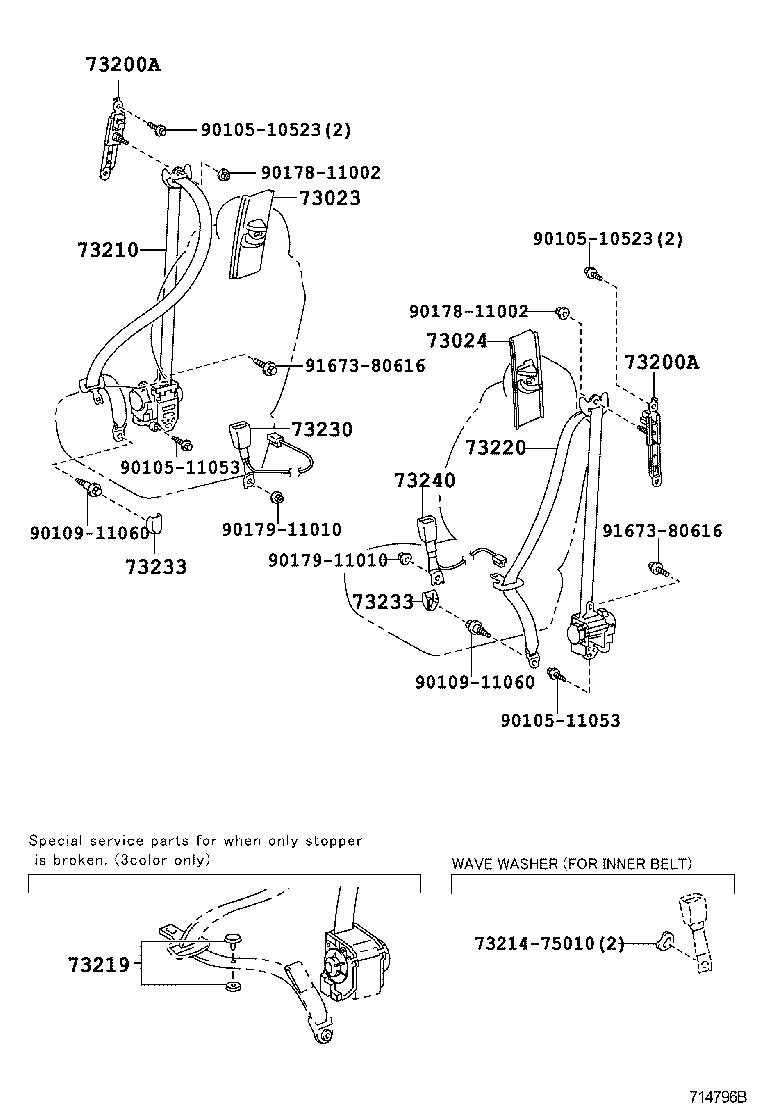

ILLUST NO. 1 OF 2(0611- )
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-33020E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 73023-33020B2 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-33020B2 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 73024-33020E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 73200-53010 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 73200-53010 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-12A80B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 73210-12A80E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 73210-12A80E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 73210-12A80B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
NDE150,ZRE151,ZZE150 GRAY |
1 | ||
| 73219-33010 |
NDE150,ZRE151,ZZE150 BLACK |
1 | ||
| 73219-33010 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC BLACK |
1 | ||
| 73219-33020 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC GRAY |
1 | ||
| 73219-33030 |
NDE150,ZRE151,ZZE150 BEIGE |
1 | ||
| 73219-33030 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-12A60E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 73220-12A60B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 73220-12A60B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 73220-12A60E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-12850E0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N GREGE,TRIM4# |
1 | ||
| 73230-12850B0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD DK.GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-12050E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
2 | ||
| 73233-12050B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
2 | ||
| 73233-12050B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
2 | ||
| 73233-12050E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-12050E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
2 | ||
| 73233-12050B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
2 | ||
| 73233-12050B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
2 | ||
| 73233-12050E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-12840B0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD DK.GRAY,TRIM1# |
1 | ||
| 73230-12840E0 |
ADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90109-11060 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91673-80616 | ||||

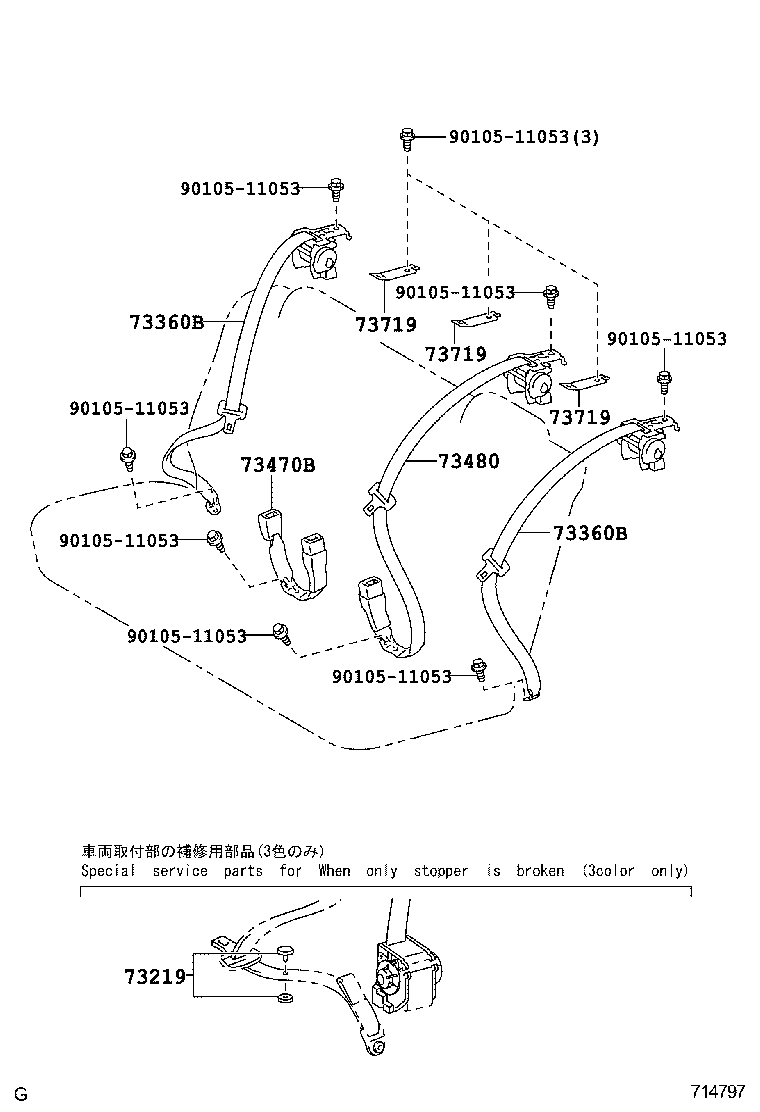

ILLUST NO. 2 OF 2(0611- )
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
NDE150,ZRE151,ZZE150 GRAY |
1 | ||
| 73219-33010 |
NDE150,ZRE151,ZZE150 BLACK |
1 | ||
| 73219-33010 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC BLACK |
1 | ||
| 73219-33020 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC GRAY |
1 | ||
| 73219-33030 |
NDE150,ZRE151,ZZE150 BEIGE |
1 | ||
| 73219-33030 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC BEIGE |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12810E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
2 | ||
| 73360-12850E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
2 | ||
| 73360-12850B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
2 | ||
| 73360-12810B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
2 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12810E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
2 | ||
| 73360-12850E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
2 | ||
| 73360-12850B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
2 | ||
| 73360-12810B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-12180E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 73470-12180E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 73470-12180B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 73470-12180B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-12340B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 73480-12240E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 73480-12240B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 73480-12340E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-12020 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-12020 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-12020 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
3 | ||
| Common parts | ||||
| 90105-11053 | ||||
