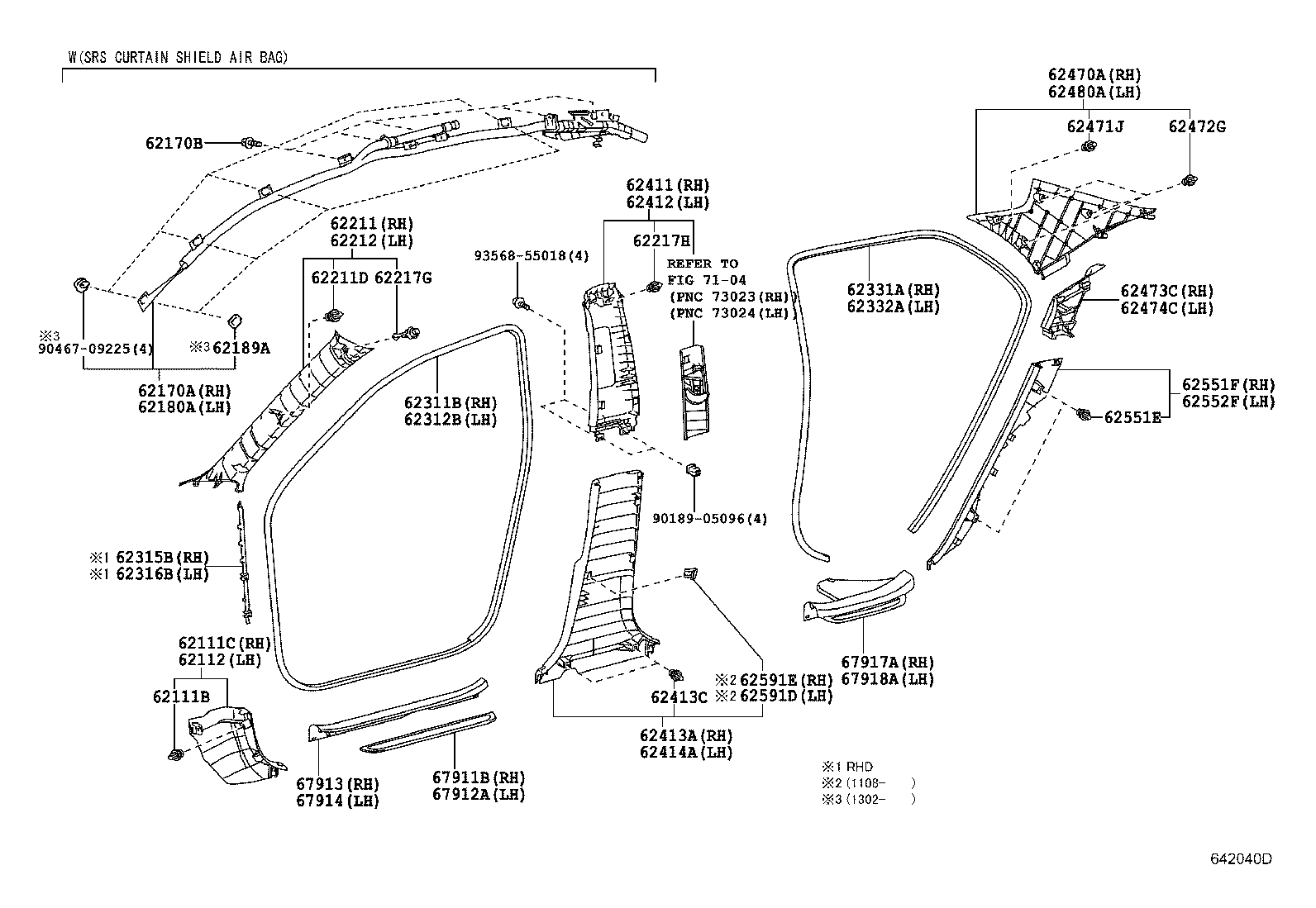

NDE150L-AEFDYW (2008)
Toyota Corolla Sed (Jpp)
(0611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 90467-10161 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-12300B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62111-12300E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-12330B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62112-12330E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62112-12330B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62112-12330E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-12030 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 62170-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
10 | ||
| 90119-06869 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
10 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-12030 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 62180-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-12420E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62211-12420B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 62211-12410B0 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62211-12410E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
1 | ||
| 62211-12420B0 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
1 | ||
| 62211-12410B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62211-12420E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62211-12410E0 |
NDE150,ZRE151,ZZE150..N SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 90467-10161 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-12410E0 |
NDE150,ZRE151,ZZE150..N SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
1 | ||
| 62212-12420B0 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
1 | ||
| 62212-12420E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62212-12420B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 62212-12410E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
1 | ||
| 62212-12410B0 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62212-12420E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62212-12410B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52060 |
ADE150,NDE150,ZRE151,ZZE150 |
2 | ||
| 90950-08004 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
2 | ||
| 62217-52010 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 90950-08004 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
2 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10167 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 90467-10167 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-12200B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62311-12200B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62311-12200E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62311-12200E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-12200B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62312-12200E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62312-12200B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62312-12200E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-12220B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62331-12220E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62331-12220E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62331-12220B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-12220B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62332-12220E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62332-12220E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62332-12220B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-12060B0 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
1 | ||
| 62410-12060E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62410-12060E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62410-12060B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-12060B0 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
1 | ||
| 62420-12060E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62420-12060E0 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62420-12060B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-12250E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62413-12250B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62413-12250E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62413-12250B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10167 |
NDE150,ZRE151,ZZE150 |
4 | ||
| 90467-10167 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-12250E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62414-12250B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62414-12250B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62414-12250E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-12140E1 |
NDE150,ZRE151,ZZE150..N SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
1 | ||
| 62470-12140B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62470-12150B1 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
1 | ||
| 62470-12150E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62470-12150E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62470-12140B1 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62470-12150B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 62470-12140E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10188 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 90467-10188 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
2 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
6 | ||
| 90467-10161 |
NDE150,ZRE151,ZZE150 |
6 | ||
| 62473C - BOARD, ROOF SIDE INNER GARNISH, RH | ||||
| 62473-12020E0 |
ADE150,NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 62473-12020B0 |
ADE150,NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62473-12021E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) ASH BROWN,TRIM4# |
1 | ||
| 62473-12021B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62474C - BOARD, ROOF SIDE INNER GARNISH, LH | ||||
| 62474-12020E0 |
ADE150,NDE150,ZRE151,ZZE150..N ASH BROWN,TRIM4# |
1 | ||
| 62474-12021E0 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) ASH BROWN,TRIM4# |
1 | ||
| 62474-12021B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62474-12020B0 |
ADE150,NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-12140B1 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62480-12150E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62480-12140E1 |
NDE150,ZRE151,ZZE150..N SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
1 | ||
| 62480-12150B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM LT.GRAY,TRIM1# |
1 | ||
| 62480-12150B1 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
1 | ||
| 62480-12140B1 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62480-12150E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62480-12140E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4# |
1 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-10161 |
NDE150,ZRE151,ZZE150 |
4 | ||
| 90467-10161 |
ZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC |
4 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-12210B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62551-12210B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62551-12210E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 62551-12210E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-12190B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 62552-12190E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 62552-12190B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 62552-12190E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-12080B1 |
NDE150,ZRE151,ZZE150..D DK.GRAY,TRIM1# |
1 | ||
| 67911-12080B1 |
NDE150,NRE150,ZRE151..D DK.GRAY,TRIM1# |
1 | ||
| 67911-12080B1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) DK.GRAY,TRIM1#,4# |
1 | ||
| 67911-12080B1 |
NDE150,ZRE151,ZZE150..N DK.GRAY,TRIM1#,4# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-12080B1 |
NDE150,ZRE151,ZZE150..D DK.GRAY,TRIM1# |
1 | ||
| 67911-12080B1 |
NDE150,ZRE151,ZZE150..N DK.GRAY,TRIM1#,4# |
1 | ||
| 67911-12080B1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) DK.GRAY,TRIM1#,4# |
1 | ||
| 67911-12080B1 |
NDE150,NRE150,ZRE151..D DK.GRAY,TRIM1# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-12290E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 67913-12290B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 67913-12290E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 67913-12290B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-12250B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 67914-12250E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 67914-12250B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 67914-12250E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-12140E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| 67917-12140B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 67917-12140B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 67917-12140E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-12130E1 |
NDE150,ZRE151,ZZE150..N GREGE,TRIM4# |
1 | ||
| 67918-12130B0 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM DK.GRAY,TRIM1# |
1 | ||
| 67918-12130B0 |
NDE150,ZRE151,ZZE150 DK.GRAY,TRIM1# |
1 | ||
| 67918-12130E1 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90189-05096 | ||||
| 90467-09225 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
