NDE150L-AEFDYW (2008)
Toyota Corolla Sed (Jpp)
(0611- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-12B50 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09116 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
4 | ||
| 90541-09116 |
NDE150,ZRE151,ZZE150 |
4 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-12570 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 64461-12570 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-12170 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 64503-12170 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-12170 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 64503-12170 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-12831 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 64531-12790 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 64531-12830 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-12811 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 64532-12810 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 64532-12770 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 64559-12040 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 64559-12040 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-12810 |
ADE150,NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 64607-12811 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-12810 |
ADE150,NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 64607-12811 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-12390 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 64610-12390 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-33010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 64621-33010 |
NDE150,NRE150,ZRE151..LHD..(DCR,HTWC) |
1 | ||
| Common parts | ||||
| 75129-21010 | ||||
| 90105-06120 | ||||
| 90105-06168 | ||||
| 90959-01369 | ||||
| 91631-B0630 | ||||

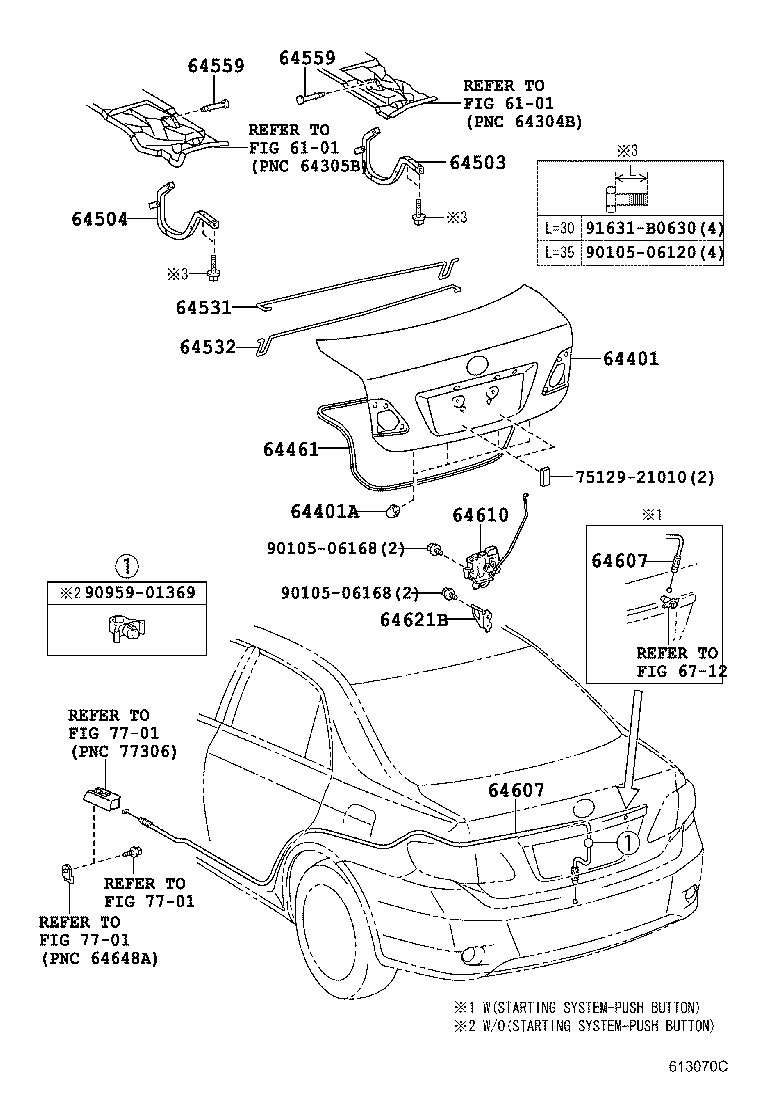

| Linked diagrams | ||||
| 6101 | ||||
| 6712 | ||||
| 7701 | ||||
