NDE150L-AEFDYW (2008)
Toyota Corolla Sed (Jpp)
(0611-1004)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

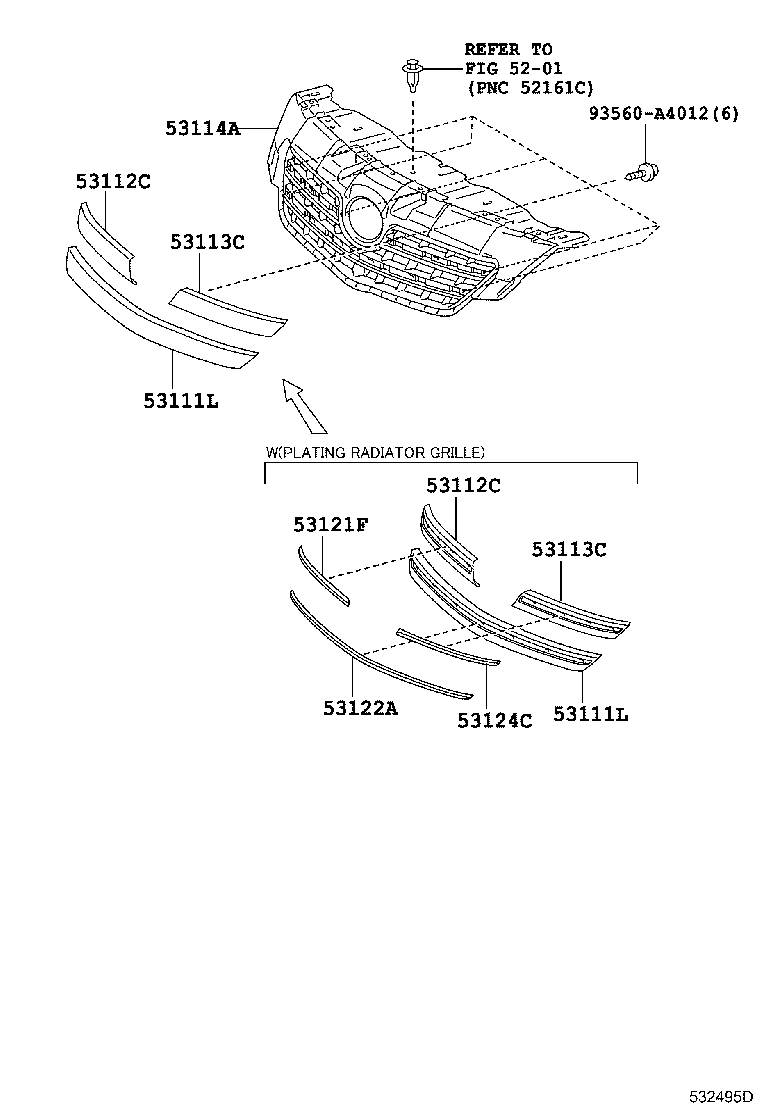

| 53111L - GRILLE SUB-ASSY, RADIATOR, CENTER | ||||
| 53111-12B40 |
NDE150,ZRE151,ZZE150..D |
1 | ||
| 53111-12B40 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 53111-12B50 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 53111-12B50 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) |
1 | ||
| 53111-12B50 |
NDE150,ZRE151,ZZE150..D RADIATOR GRILLE-PLATING |
1 | ||
| 53111-12B50 |
NDE150,NRE150,ZRE151..D RADIATOR GRILLE-PLATING |
1 | ||
| 53111L - GRILLE SUB-ASSY, RADIATOR, CENTER | ||||
| 53111-12B40 |
NDE150,ZRE151,ZZE150..D |
1 | ||
| 53111-12B40 |
NDE150,NRE150,ZRE151..D |
1 | ||
| 53111-12B50 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 53111-12B50 |
NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM) |
1 | ||
| 53111-12B50 |
NDE150,ZRE151,ZZE150..D RADIATOR GRILLE-PLATING |
1 | ||
| 53111-12B50 |
NDE150,NRE150,ZRE151..D RADIATOR GRILLE-PLATING |
1 | ||
| 53112C - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-12160 |
NDE150,ZRE151,ZZE150..D RADIATOR GRILLE-PLATING |
1 | ||
| 53112-12150 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) |
1 | ||
| 53112-12150 |
NDE150,ZRE151,ZZE150..D |
1 | ||
| 53112-12160 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) RADIATOR GRILLE-PLATING |
1 | ||
| 53112-12160 |
NDE150,NRE150,ZRE151..LHD..N..(DCR,HTWC) |
1 | ||
| 53112-12160 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 53112C - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-12160 |
NDE150,ZRE151,ZZE150..D RADIATOR GRILLE-PLATING |
1 | ||
| 53112-12150 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) |
1 | ||
| 53112-12150 |
NDE150,ZRE151,ZZE150..D |
1 | ||
| 53112-12160 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) RADIATOR GRILLE-PLATING |
1 | ||
| 53112-12160 |
NDE150,NRE150,ZRE151..LHD..N..(DCR,HTWC) |
1 | ||
| 53112-12160 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-12110 |
NDE150,ZRE151,ZZE150..D |
1 | ||
| 53113-12120 |
NDE150,ZRE151,ZZE150..D RADIATOR GRILLE-PLATING |
1 | ||
| 53113-12120 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 53113-12110 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) |
1 | ||
| 53113-12120 |
NDE150,NRE150,ZRE151..LHD..N..(DCR,HTWC) |
1 | ||
| 53113-12120 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) RADIATOR GRILLE-PLATING |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-12110 |
NDE150,ZRE151,ZZE150..D |
1 | ||
| 53113-12120 |
NDE150,ZRE151,ZZE150..D RADIATOR GRILLE-PLATING |
1 | ||
| 53113-12120 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 53113-12110 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) |
1 | ||
| 53113-12120 |
NDE150,NRE150,ZRE151..LHD..N..(DCR,HTWC) |
1 | ||
| 53113-12120 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) RADIATOR GRILLE-PLATING |
1 | ||
| 53114A - GRILLE, RADIATOR, INNER | ||||
| 53114-12100 |
NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM |
1 | ||
| 53121F - MOULDING, RADIATOR GRILLE, UPPER RH | ||||
| 53121-12180 |
NDE150,ZRE151,ZZE150..D RADIATOR GRILLE-PLATING |
1 | ||
| 53121-12180 |
NDE150,NRE150,ZRE151..LHD..N..(DCR,HTWC) |
1 | ||
| 53121-12180 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) RADIATOR GRILLE-PLATING |
1 | ||
| 53121-12180 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 53122A - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-12170 |
NDE150,ZRE151,ZZE150..D RADIATOR GRILLE-PLATING |
1 | ||
| 53122-12170 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 53122-12170 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) RADIATOR GRILLE-PLATING |
1 | ||
| 53122-12170 |
NDE150,NRE150,ZRE151..LHD..N..(DCR,HTWC) |
1 | ||
| 53124C - MOULDING, RADIATOR GRILLE, UPPER LH | ||||
| 53124-12030 |
NDE150,ZRE151,ZZE150..D RADIATOR GRILLE-PLATING |
1 | ||
| 53124-12030 |
NDE150,ZRE151,ZZE150..N |
1 | ||
| 53124-12030 |
NDE150,NRE150,ZRE151..LHD..N..(DCR,HTWC) |
1 | ||
| 53124-12030 |
NDE150,NRE150,ZRE151..LHD..D..(DCR,HTWC) RADIATOR GRILLE-PLATING |
1 | ||
| Common parts | ||||
| 93560-A4012 | ||||
| Linked diagrams | ||||
| 5201 | ||||
