NDE150L-AEFDYW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )ADE150,NDE150

Click highlighted areas on diagram

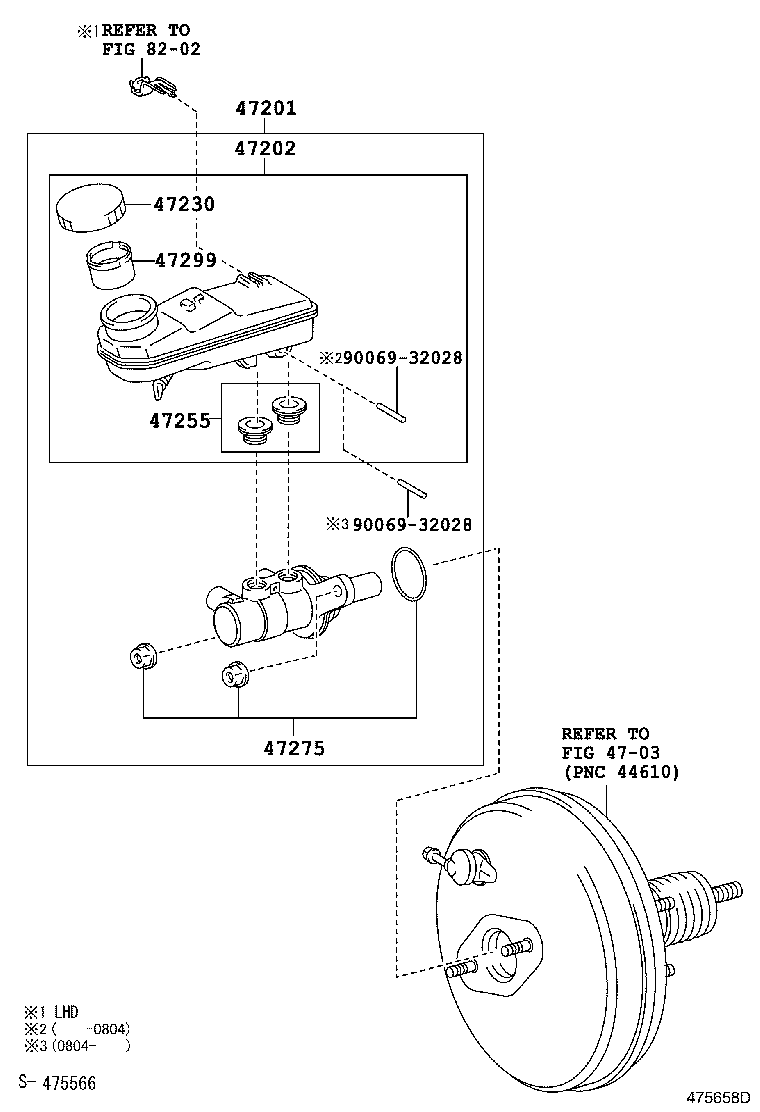

diagram 4703 47201 47202 47230 47255 47275 47299 8202 9006932028 9006932028
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-19025

ADE150,NDE150..LHD

VSC-WITH(CANCEL SWITCH)

 1
47201-19015

ADE150,NDE150..LHD

 1
47201-19055

NDE150..LHD;ADE150..LHD..DCRL

VSC-WITH(CANCEL SWITCH)

 1
47201-19065

NDE150..LHD;ADE150..LHD..DCRL

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-09090

NDE150..LHD;ADE150..LHD..DCRL

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-0D010

NDE150

 1
47230-0D010

NDE150..DCR

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-09040

NDE150

 1
47255-09040

NDE150..DCR

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-09010

NDE150;ADE150..DCRL

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-02160

NDE150

 1
47299-02160

NDE150..DCR

 1
Common parts
90069-32028
Linked diagrams
4703
8202
