NDE150L-AEFDYW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )LHD..5F,6F

Click highlighted areas on diagram

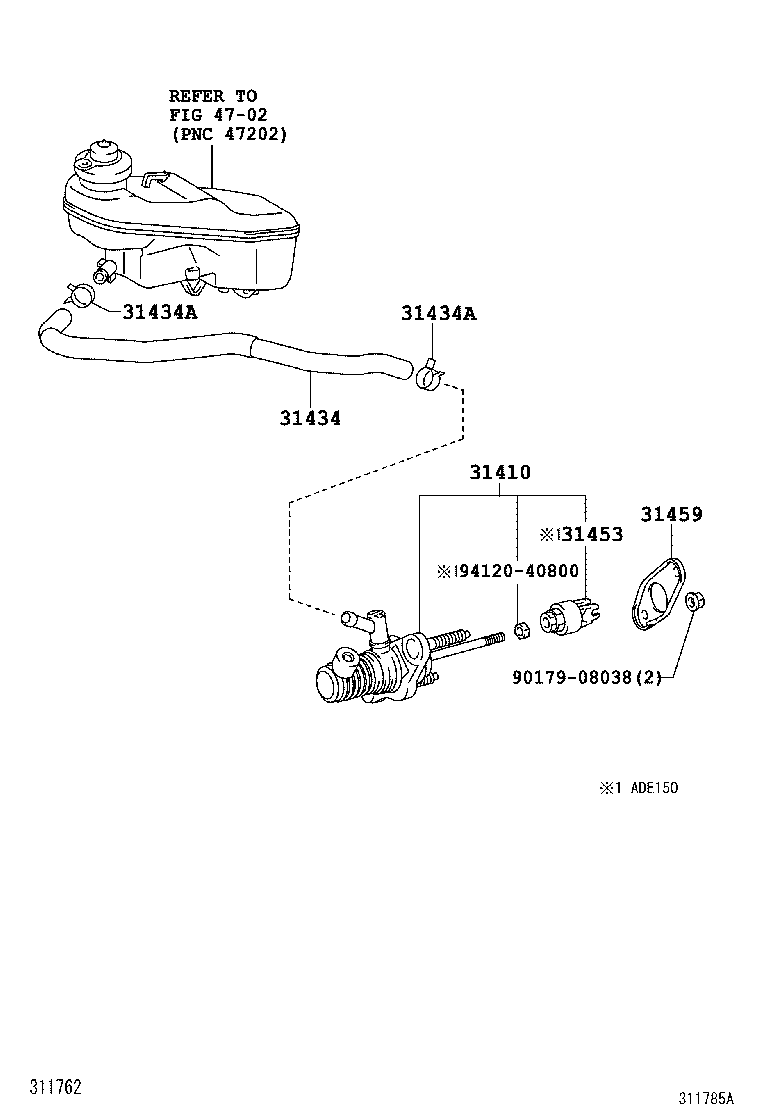

diagram 31410 31434 31434A 31434A 31453 31459 4702 9017908038 9412040800
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-12030

NDE150,NRE150,ZRE151..LHD..6F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-12120

NDE150..LHD..6F..DCR

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 2
31459 - BRACKET, CLUTCH MASTER CYLINDER
31459-42040

ZRE151..RHD..N;NDE150,NRE150,ZRE151..6F..(DCR,HTWC)

 1
Common parts
90179-08038
94120-40800
Linked diagrams
4702
