Toyota Corolla sed (jpp) NDE150 STARTER

NDE150L-AEFDYW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010

Engine 1NDTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0812- )1NDTV

Click highlighted areas on diagram

12V 1.6KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28021-33100	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28021-33100	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28100 - STARTER ASSY
28100-33080	1NDTV..NDE150..LHD 12V 2.0KW,COLD AREA SPEC	11/2006 - 12/2008	1
28100-33070	1NDTV..NDE150 12V 1.4KW	11/2006 - 12/2008	1
28100-33080	1NDTV..NDE150 12V 2.0KW,SUB COLD AREA SPEC	11/2006 - 12/2008	1
28100-33120	1NDTV..NDE150..LHD 12V 2.0KW,COLD AREA SPEC	12/2008 - 04/2010	1
28100-33110	1NDTV..NDE150 12V 1.6KW	12/2008 - 04/2010	1
28100-33120	1NDTV..NDE150 12V 2.0KW,SUB COLD AREA SPEC	12/2008 - 04/2010	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-33110	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28110-33120	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28110-33120	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28113 - LEVER, STARTER PINION DRIVE
28113-37050	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28117A - SEAL, RUBBER
28117-37050	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28120 - YOKE ASSY, STARTER
28120-54380	1NDTV..NDE150 SUB COLD AREA SPEC	11/2006 - 12/2008	1
28120-54380	1NDTV..NDE150..LHD COLD AREA SPEC	11/2006 - 12/2008	1
28120-38020	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28120-33110	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28120-38020	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28120-55050	1NDTV..NDE150	11/2006 - 12/2008	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-33120	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28130-33110	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28130-33120	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-54380	1NDTV..NDE150..LHD COLD AREA SPEC	11/2006 - 12/2008	1
28140-54380	1NDTV..NDE150 SUB COLD AREA SPEC	11/2006 - 12/2008	1
28140-64130	1NDTV..NDE150	11/2006 - 12/2008	1
28140-37050	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-33040	1NDTV..NDE150..LHD COLD AREA SPEC	11/2006 - 12/2008	1
28150-33040	1NDTV..NDE150 SUB COLD AREA SPEC	11/2006 - 12/2008	1
28150-46220	1NDTV..NDE150	11/2006 - 12/2008	1
28150-37020	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28160 - ARMATURE ASSY, STARTER
28160-54380	1NDTV..NDE150..LHD COLD AREA SPEC	11/2006 - 12/2008	1
28160-38020	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28160-74070	1NDTV..NDE150	11/2006 - 12/2008	1
28160-54380	1NDTV..NDE150 SUB COLD AREA SPEC	11/2006 - 12/2008	1
28160-38020	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28160-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28177 - PLATE(FOR STARTER ARMATURE)
28177-37050	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28177-38020	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28177-38020	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28181 - TERMINAL, STARTER
28181-33010	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28199A - PROTECTOR, DUST STARTER
28199-46080	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28199-33110	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28199-46080	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28255 - GEAR, PLANET
28255-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	3
28255 - GEAR, PLANET
28255-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	3
28255 - GEAR, PLANET
28255-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	3
Common parts
90099-00323
90099-01538
90099-04617
90099-05178
90099-05289
90179-08204
91612-61065

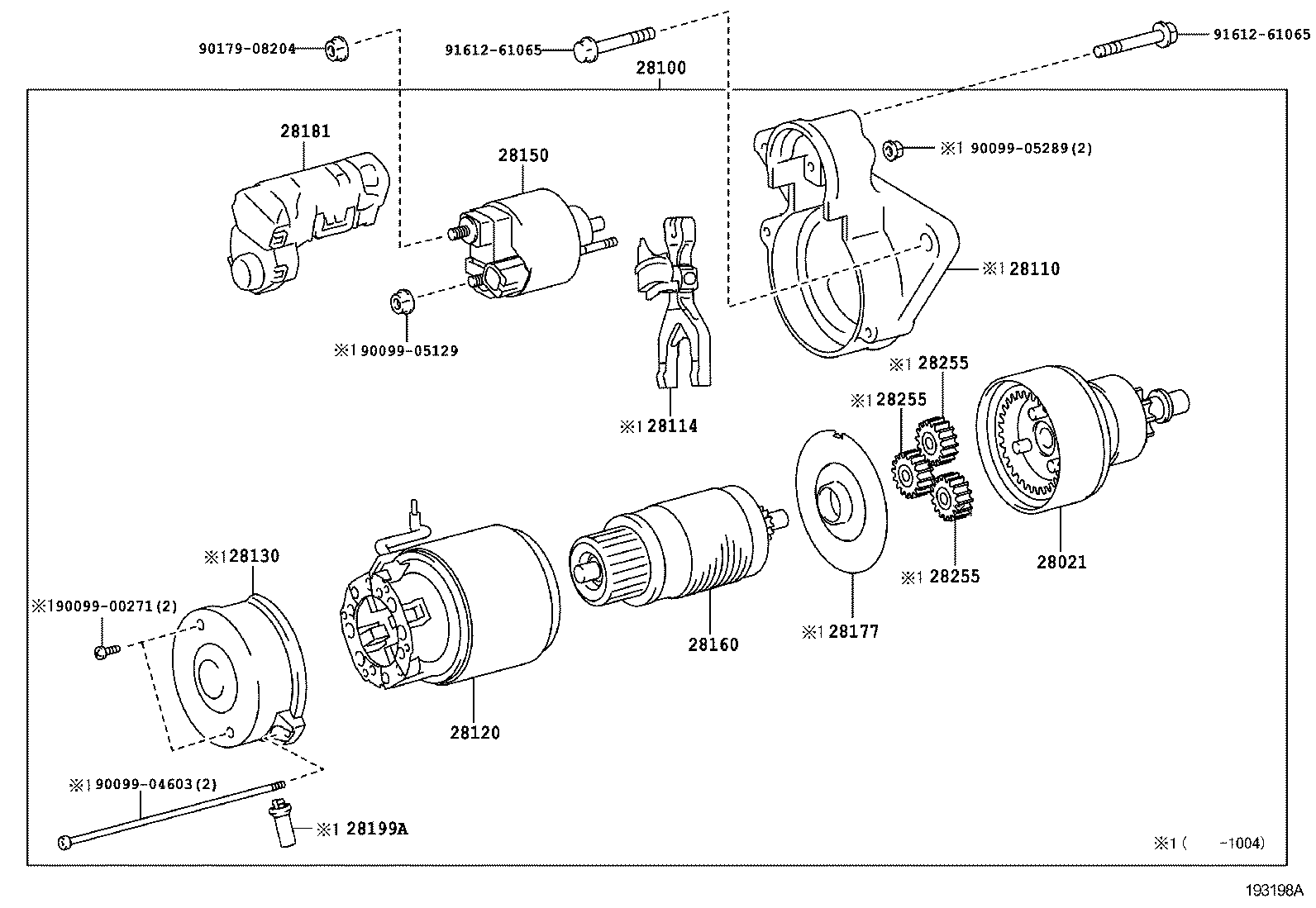

(0812- )1NDTV

Click highlighted areas on diagram

12V 2.0KW

Part #	Description	Period	Qty
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28021-33100	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28021-33100	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28100 - STARTER ASSY
28100-33080	1NDTV..NDE150..LHD 12V 2.0KW,COLD AREA SPEC	11/2006 - 12/2008	1
28100-33070	1NDTV..NDE150 12V 1.4KW	11/2006 - 12/2008	1
28100-33080	1NDTV..NDE150 12V 2.0KW,SUB COLD AREA SPEC	11/2006 - 12/2008	1
28100-33120	1NDTV..NDE150..LHD 12V 2.0KW,COLD AREA SPEC	12/2008 - 04/2010	1
28100-33110	1NDTV..NDE150 12V 1.6KW	12/2008 - 04/2010	1
28100-33120	1NDTV..NDE150 12V 2.0KW,SUB COLD AREA SPEC	12/2008 - 04/2010	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-33110	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28110-33120	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28110-33120	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28114 - PIN, STARTER DRIVE LEVER SET
28114-33100	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28114-33100	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28120 - YOKE ASSY, STARTER
28120-54380	1NDTV..NDE150 SUB COLD AREA SPEC	11/2006 - 12/2008	1
28120-54380	1NDTV..NDE150..LHD COLD AREA SPEC	11/2006 - 12/2008	1
28120-38020	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28120-33110	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28120-38020	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28120-55050	1NDTV..NDE150	11/2006 - 12/2008	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-33120	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28130-33110	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28130-33120	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-33040	1NDTV..NDE150..LHD COLD AREA SPEC	11/2006 - 12/2008	1
28150-33040	1NDTV..NDE150 SUB COLD AREA SPEC	11/2006 - 12/2008	1
28150-46220	1NDTV..NDE150	11/2006 - 12/2008	1
28150-37020	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28160 - ARMATURE ASSY, STARTER
28160-54380	1NDTV..NDE150..LHD COLD AREA SPEC	11/2006 - 12/2008	1
28160-38020	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28160-74070	1NDTV..NDE150	11/2006 - 12/2008	1
28160-54380	1NDTV..NDE150 SUB COLD AREA SPEC	11/2006 - 12/2008	1
28160-38020	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28160-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28177 - PLATE(FOR STARTER ARMATURE)
28177-37050	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28177-38020	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28177-38020	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28181 - TERMINAL, STARTER
28181-33010	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28199A - PROTECTOR, DUST STARTER
28199-46080	1NDTV..NDE150..LHD..DCR SUB COLD AREA SPEC	12/2008 - 04/2010	1
28199-33110	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	1
28199-46080	1NDTV..NDE150..LHD..DCR COLD AREA SPEC	12/2008 - 04/2010	1
28255 - GEAR, PLANET
28255-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	3
28255 - GEAR, PLANET
28255-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	3
28255 - GEAR, PLANET
28255-33090	1NDTV..NDE150..LHD..DCR	12/2008 - 04/2010	3
Common parts
90099-00271
90099-04603
90099-05129
90099-05289
90179-08204
91612-61065

NDE150L-AEFDYW (2008)

(0812- )1NDTV

(0812- )1NDTV
