NDE150L-AEFDYW (2008)
Toyota Corolla Sed (Jpp)

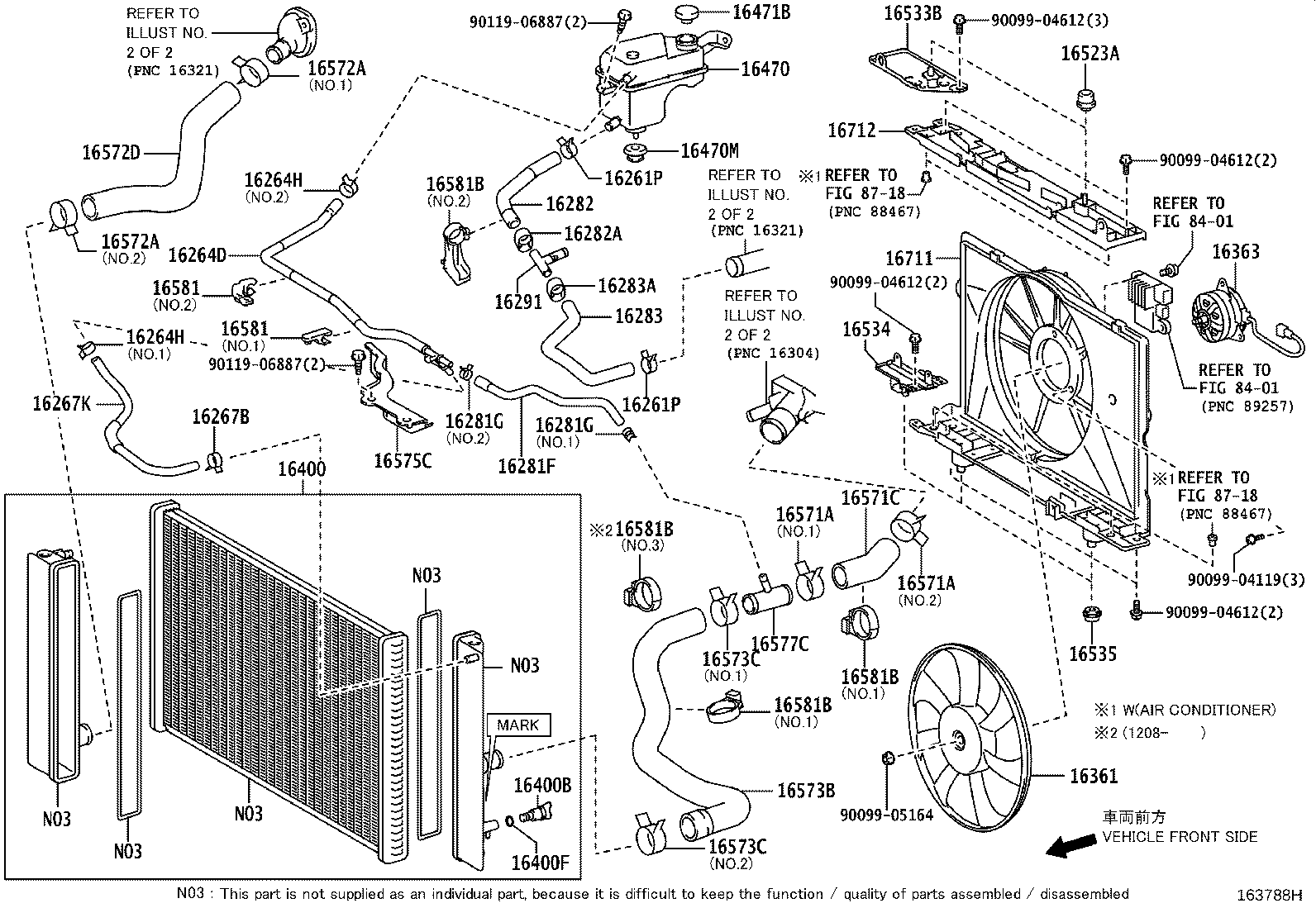

ILLUST NO. 1 OF 2(0812- )1NDTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52501 |
1NDTV..NDE150..LHD..DCR |
2 | ||
| 96136-52501 |
1NDTV..NDE150 |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52501 |
1NDTV..NDE150..LHD..DCR |
2 | ||
| 96136-52501 |
1NDTV..NDE150 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-21090 |
1NDTV..NDE150..DCR |
1 | ||
| 16264-33020 |
1NDTV..NDE150 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-52101 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96136-52101 |
1N#..NDE150,NRE150..DCR,HTWC NO.2 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-52101 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96136-52101 |
1N#..NDE150,NRE150..DCR,HTWC NO.2 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150..DCR |
1 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0N040 |
1NDTV..NDE150..D AIR CONDITIONER-MANUAL |
1 | ||
| 16267-0N040 |
1NDTV..NDE150..DCR |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-33010 |
1NDTV..NDE150 |
1 | ||
| 16281-33040 |
1NDTV..NDE150..DCR |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96136-51901 |
1NDTV..NDE150 NO.2 |
1 | ||
| 90467-15022 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-51901 |
1N#..NDE150,NRE150..DCR,HTWC NO.2 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96136-51901 |
1NDTV..NDE150 NO.2 |
1 | ||
| 90467-15022 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-51901 |
1N#..NDE150,NRE150..DCR,HTWC NO.2 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-33050 |
1NDTV..NDE150..DCR |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-52501 |
1NDTV..NDE150..LHD..DCR |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-33020 |
1NDTV..NDE150..DCR |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-52501 |
1NDTV..NDE150..LHD..DCR |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-33020 |
1NDTV..NDE150..DCR |
1 | ||
| 16361 - FAN | ||||
| 16361-0N040 |
1NDTV..NDE150 |
1 | ||
| 16361-0N040 |
1NDTV..NDE150..DCR |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0N020 |
1NDTV..NDE150..DCR |
1 | ||
| 16363-0N020 |
1NDTV..NDE150 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0N060 |
1NDTV..NDE150 |
1 | ||
| 16400-0N060 |
1NDTV..NDE150..DCR |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0Q040 |
1NDTV..NDE150 |
1 | ||
| 16417-0Q040 |
1NDTV..NDE150..DCR |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NDTV..NDE150 |
1 | ||
| 16492-21050 |
1N#..NDE150,NRE150..DCR,HTWC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-26030 |
1NDTV..NDE150..DCR |
1 | ||
| 16480-26030 |
1NDTV..NDE150 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
1NDTV..NDE150 |
1 | ||
| 90480-18010 |
1NDTV..NDE150..DCR |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-28120 |
1NDTV..NDE150 |
1 | ||
| 16475-51010 |
1N#..NDE150,NRE150..DCR,HTWC |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21060 |
1NDTV..NDE150 |
2 | ||
| 16523-21060 |
1N#..NDE150,NRE150..DCR,HTWC |
2 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16505-0N010 |
1NDTV..NDE150 |
1 | ||
| 16505-0N010 |
1NDTV..NDE150..DCR |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16506-0N010 |
1NDTV..NDE150 |
1 | ||
| 16506-0N010 |
1NDTV..NDE150..DCR |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74230 |
1NDTV..NDE150..DCR |
3 | ||
| 16535-74230 |
1NDTV..NDE150 |
3 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-33006 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-43901 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96136-43901 |
1N#..NDE150,NRE150..DCR,HTWC NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-33006 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-43901 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96136-43901 |
1N#..NDE150,NRE150..DCR,HTWC NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-33080 |
1NDTV..NDE150..DCR |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96136-43901 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96136-43901 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-44301 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96136-43901 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96136-43901 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-44301 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-33060 |
1NDTV..NDE150..DCR |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-33010 |
1NDTV..NDE150 |
1 | ||
| 16573-33020 |
1NDTV..NDE150..DCR |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1NDTV..NDE150 NO.2 |
1 | ||
| 90467-33006 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-33006 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-44301 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1NDTV..NDE150 NO.2 |
1 | ||
| 90467-33006 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-33006 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 96136-44301 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-22020 |
1N#..NDE150,NRE150 |
1 | ||
| 16575-22020 |
1NDTV..NDE150 |
1 | ||
| 16575-37020 |
1N#..NDE150,NRE150..DCR,HTWC |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-33020 |
1NDTV..NDE150 |
1 | ||
| 16577-33020 |
1NDTV..NDE150..DCR |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-22120 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16581-22110 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-22120 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16581-22110 |
1NDTV..NDE150..DCR NO.1 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1NDTV..NDE150 NO.1 |
1 | ||
| 16581-22120 |
1NDTV..NDE150 NO.2 |
1 | ||
| 16581-33020 |
1NDTV..NDE150..DCR NO.1 |
2 | ||
| 16581-33100 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1NDTV..NDE150 NO.1 |
1 | ||
| 16581-22120 |
1NDTV..NDE150 NO.2 |
1 | ||
| 16581-33020 |
1NDTV..NDE150..DCR NO.1 |
2 | ||
| 16581-33100 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1NDTV..NDE150 NO.1 |
1 | ||
| 16581-22120 |
1NDTV..NDE150 NO.2 |
1 | ||
| 16581-33020 |
1NDTV..NDE150..DCR NO.1 |
2 | ||
| 16581-33100 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1NDTV..NDE150 NO.1 |
1 | ||
| 16581-22120 |
1NDTV..NDE150 NO.2 |
1 | ||
| 16581-33020 |
1NDTV..NDE150..DCR NO.1 |
2 | ||
| 16581-33100 |
1NDTV..NDE150..DCR NO.2 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0N040 |
1NDTV..NDE150..DCR |
1 | ||
| 16711-0N040 |
1NDTV..NDE150 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0N010 |
1NDTV..NDE150 |
1 | ||
| 16712-0N010 |
1NDTV..NDE150..DCR |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06887 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8718 | ||||
