NDE150L-AEFDYW (2008)

Toyota Corolla Sed (Jpp)

Production Dec 2008 - Apr 2010
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )1NDTV

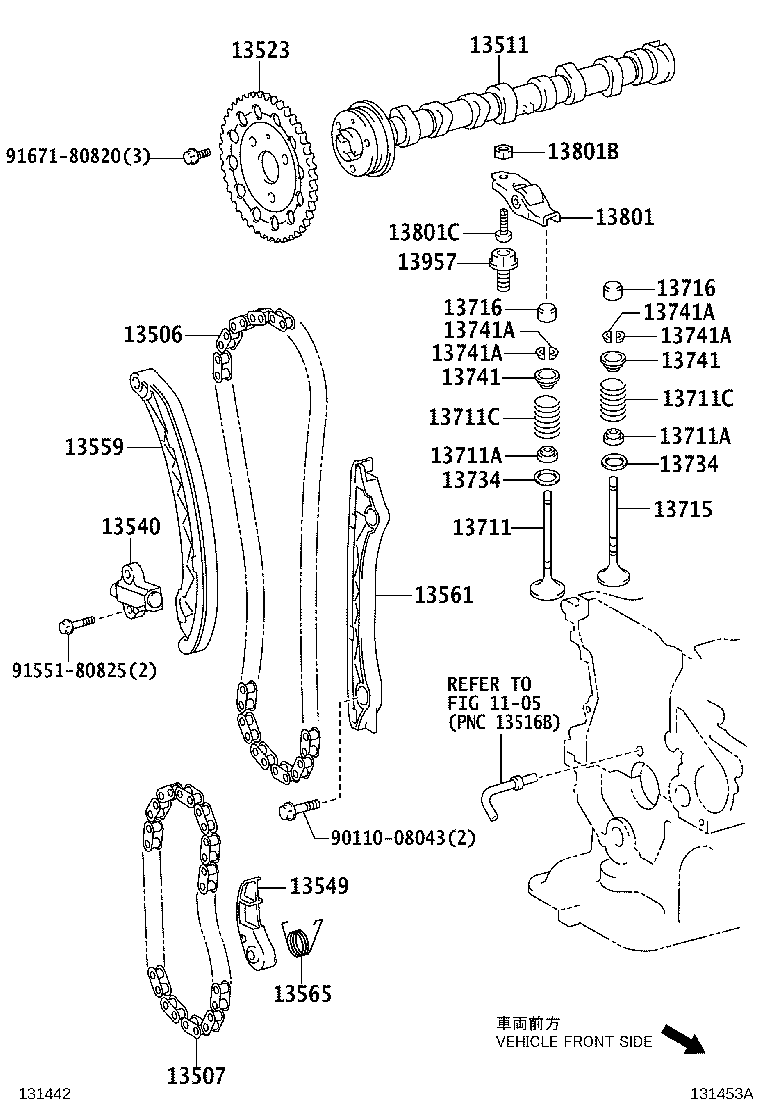

Click highlighted areas on diagram

diagram 1105 13506 13507 13511 13523 13540 13549 13559 13561 13565 13711 13711A 13711A 13711C 13711C 13715 13716 13716 13734 13734 13741 13741 13741A 13741A 13741A 13741A 13801 13801B 13801C 13957 9011008043 9155180825 9167180820
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-33020

1NDTV..NDE150

 1
13506-33030

1NDTV..NDE150..DCR

 1
13507 - CHAIN SUB-ASSY, NO.2
13507-33010

1NDTV..NDE150..DCR

 1
13511 - CAMSHAFT
13501-33040

1NDTV..NDE150

 1
13501-33010

1NDTV..NDE150

 1
13501-33041

1NDTV..NDE150..DCR

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-33021

1NDTV..NDE150

 1
13523-33030

1NDTV..NDE150..DCR

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-33020

1NDTV..NDE150

 1
13540-33030

1NDTV..NDE150..DCR

 1
13549 - PLATE, CHAIN TENSIONER
13549-33010

1NDTV..NDE150..DCR

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-33020

1NDTV..NDE150..DCR

 1
13559-33010

1NDTV..NDE150

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-33030

1NDTV..NDE150..DCR

 1
13561-33020

1NDTV..NDE150

 1
13565 - SPRING, CHAIN DAMPER
13565-33010

1NDTV..NDE150..DCR

 1
13711 - VALVE, INTAKE
13711-33030

1NDTV..NDE150

 4
13711-33031

1NDTV..NDE150..DCR

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02124

1NDTV..NDE150..DCR

 8
90913-02121

1NDTV..NDE150

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02124

1NDTV..NDE150..DCR

 8
90913-02121

1NDTV..NDE150

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-36006

1NDTV..NDE150

 8
90501-32060

1NDTV..NDE150..DCR

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-36006

1NDTV..NDE150

 8
90501-32060

1NDTV..NDE150..DCR

 8
13715 - VALVE, EXHAUST
13715-33040

1NDTV..NDE150

 4
13715-33041

1NDTV..NDE150..DCR

 4
13716 - CAP, VALVE STEM
13716-33010

1NDTV..NDE150

 8
13716-33010

1NDTV..NDE150..DCR

 8
13716 - CAP, VALVE STEM
13716-33010

1NDTV..NDE150

 8
13716-33010

1NDTV..NDE150..DCR

 8
13734 - SEAT, VALVE SPRING
13734-33020

1NDTV..NDE150..DCR

 8
13734 - SEAT, VALVE SPRING
13734-33020

1NDTV..NDE150..DCR

 8
13741 - RETAINER, VALVE SPRING
13741-10020

1NDTV..NDE150

 8
13741-33020

1NDTV..NDE150..DCR

 8
13741 - RETAINER, VALVE SPRING
13741-10020

1NDTV..NDE150

 8
13741-33020

1NDTV..NDE150..DCR

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1NDTV..NDE150

 16
90913-03021

1NDTV..NDE150..DCR

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1NDTV..NDE150

 16
90913-03021

1NDTV..NDE150..DCR

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1NDTV..NDE150

 16
90913-03021

1NDTV..NDE150..DCR

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

1NDTV..NDE150

 16
90913-03021

1NDTV..NDE150..DCR

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-33020

1NDTV..NDE150

 8
13801-33020

1NDTV..NDE150

 8
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-07004

1NDTV..NDE150..DCR

 8
90170-07004

1NDTV..NDE150

 8
13801C - SCREW, VALVE ADJUSTING
13788-33010

1NDTV..NDE150

 8
13788-33011

1NDTV..NDE150..DCR

 8
13957 - PIVOT, VALVE ROCKER ARM
13957-33010

1NDTV..NDE150

 8
13957-33010

1NDTV..NDE150..DCR

 8
Common parts
90110-08043
91551-80825
91671-80820
Linked diagrams
1105
