ADE150R-AEFNYW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Jan 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )ADE150

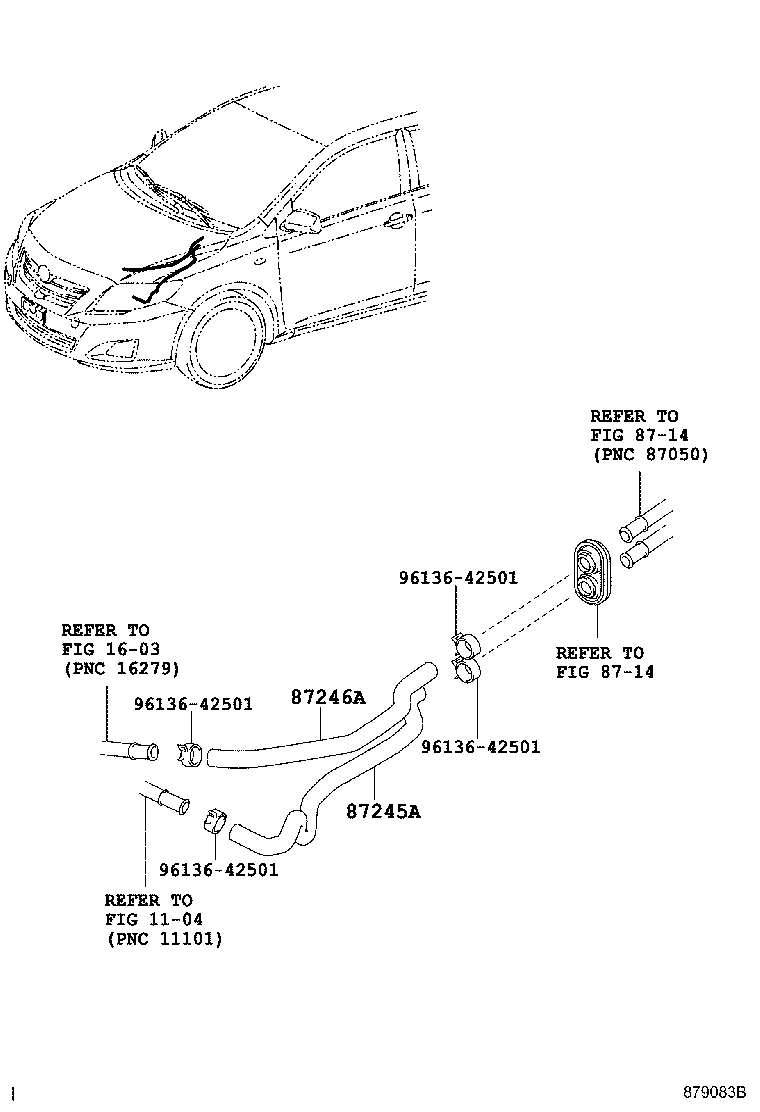

Click highlighted areas on diagram

diagram 1104 1603 8714 8714 87245A 87246A 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-12B10

ADE150

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12B20

ADE150

 1
Common parts
96136-42501
Linked diagrams
1104
1603
8714

(0611- )ADE150

Click highlighted areas on diagram

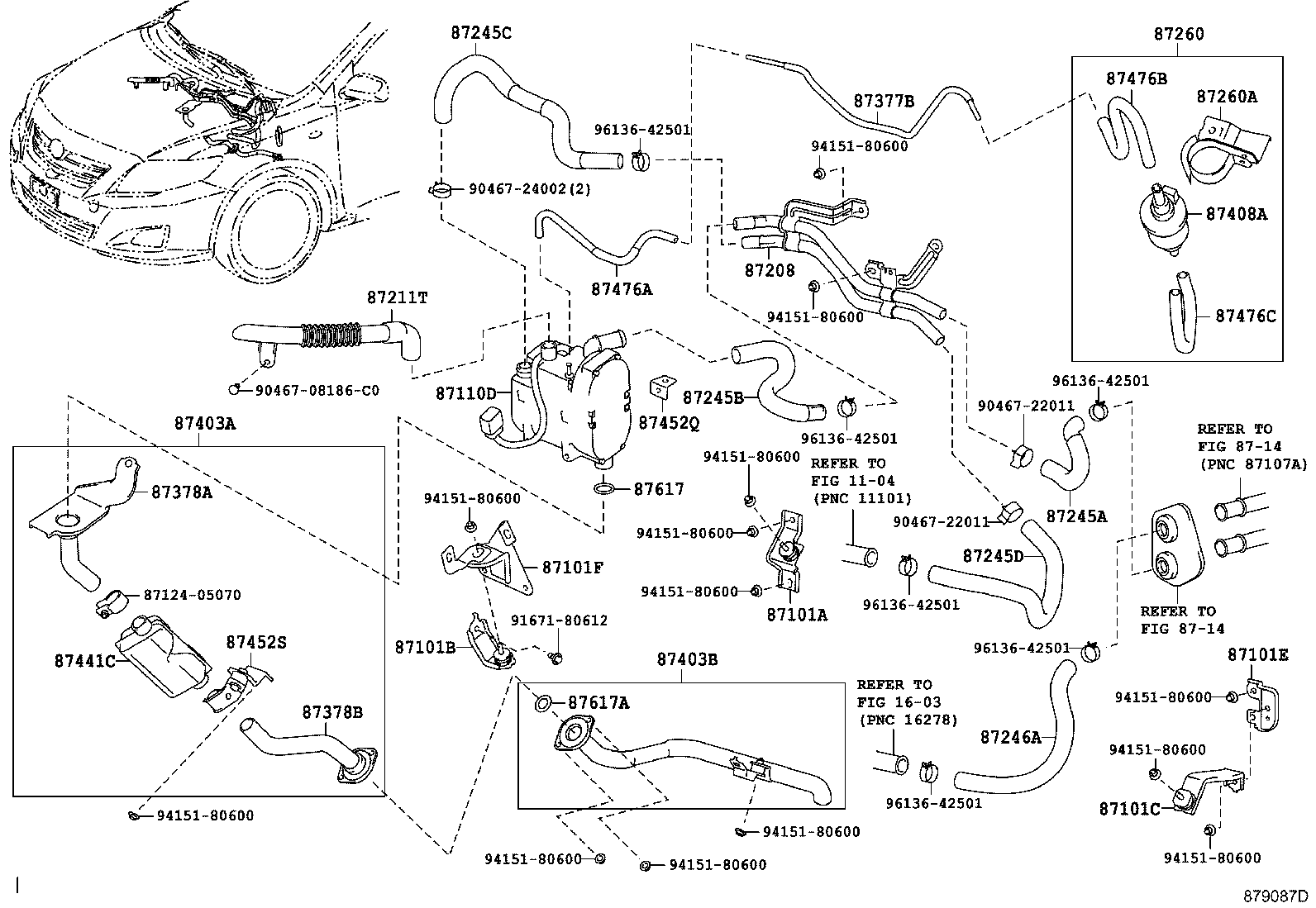

W(STOVE HEATER)

diagram 1104 1603 87101A 87101B 87101C 87101E 87101F 87110D 8712405070 8714 8714 87208 87211T 87245A 87245B 87245C 87245D 87246A 87260 87260A 87377B 87378A 87378B 87403A 87403B 87408A 87441C 87452Q 87452S 87476A 87476B 87476C 87617 87617A 9046708186C0 9046722011 9046722011 9046724002 9167180612 9415180600 9415180600 9415180600 9415180600 9415180600 9415180600 9415180600 9415180600 9415180600 9415180600 9415180600 9415180600 9415180600 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-12B10

ADE150

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12B20

ADE150

 1
Common parts
87124-05070
90467-08186C0
90467-22011
90467-24002
91671-80612
94151-80600
96136-42501
Linked diagrams
1104
1603
8714
